NSN 5320-00-802-7179 00-802-7179, 008027179
Product Details | BLIND RIVET
5320-00-802-7179 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: 5320-00-802-7179, 00-802-7179, 5320008027179, 008027179
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-802-7179 | 00864 ( RIVET, BLIND ) |

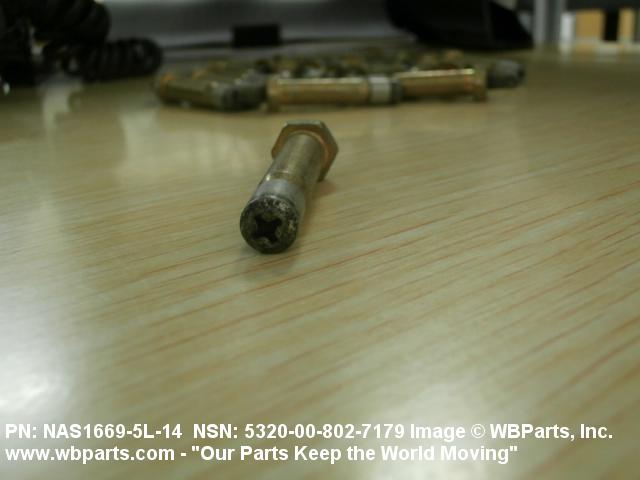

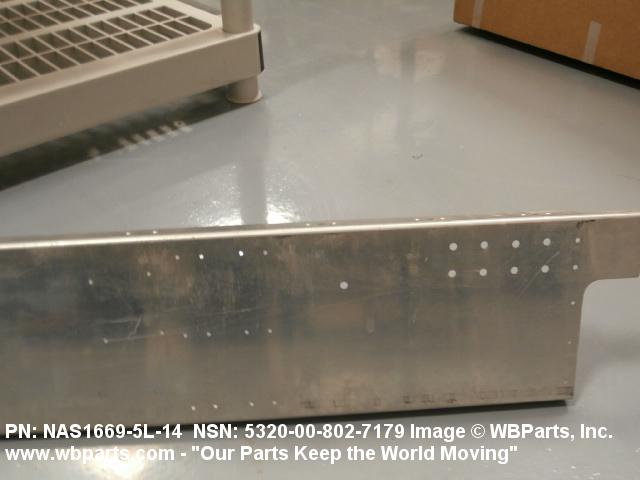

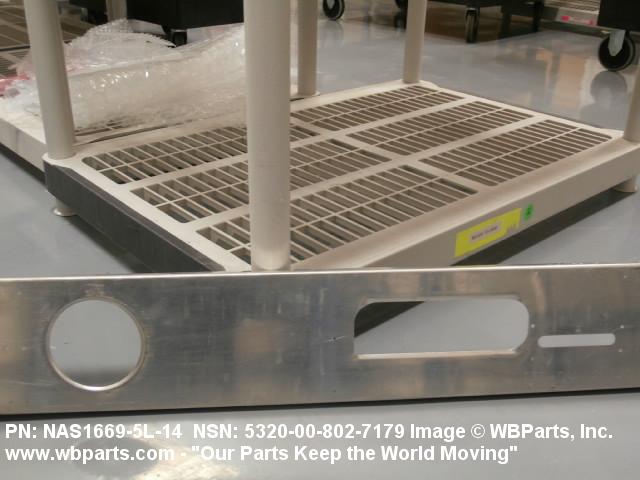

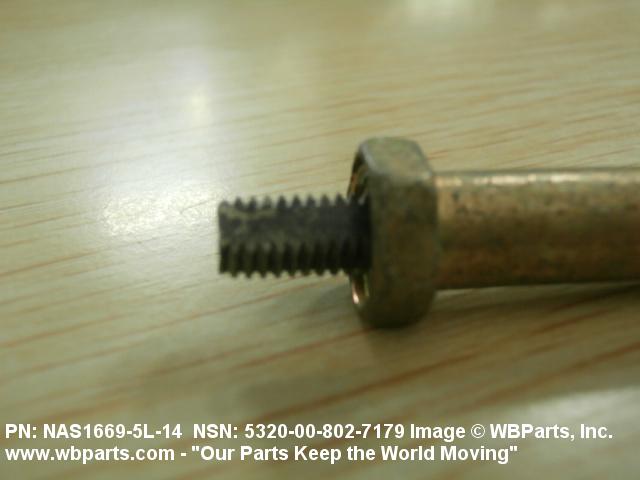

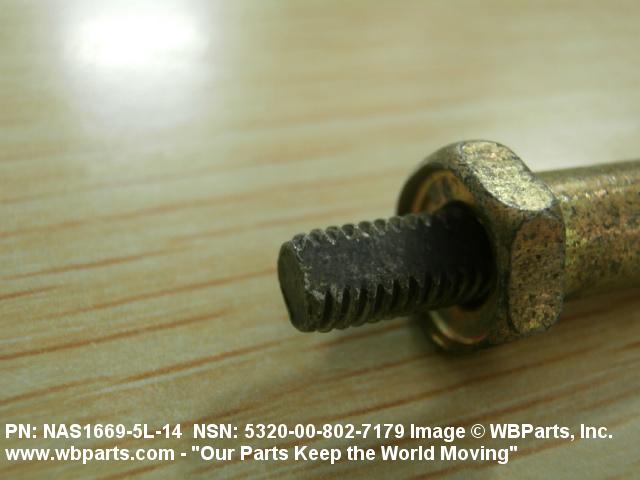

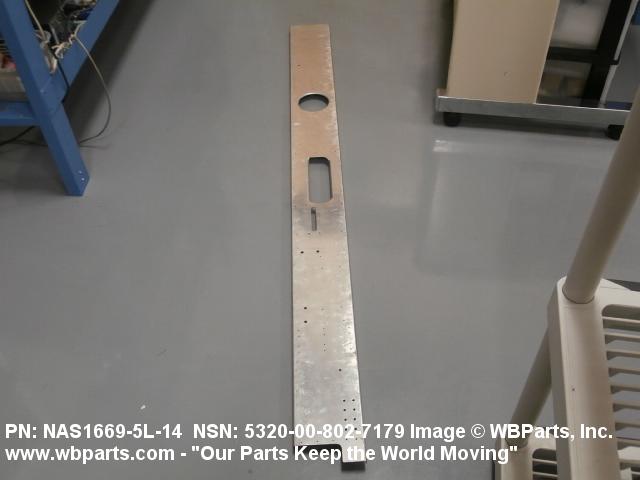

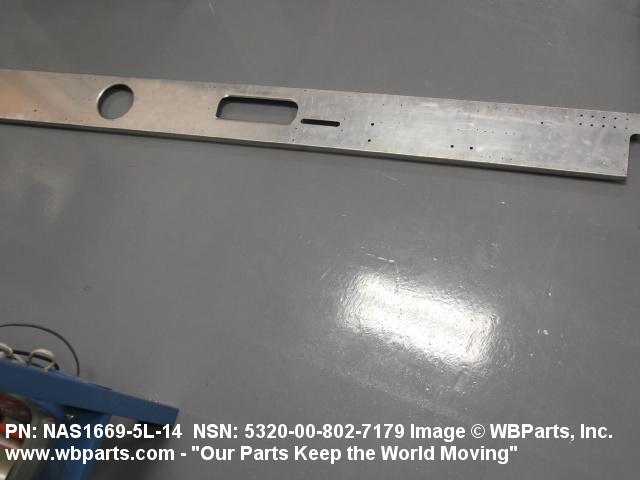

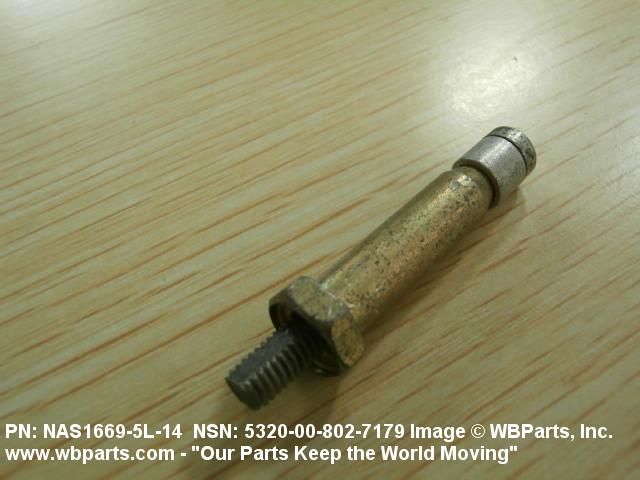

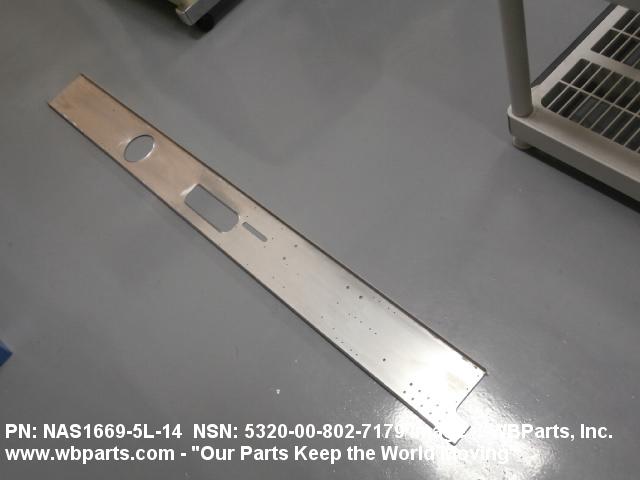

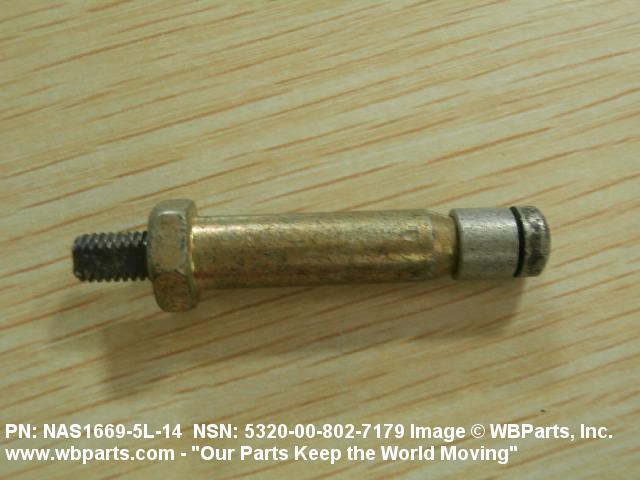

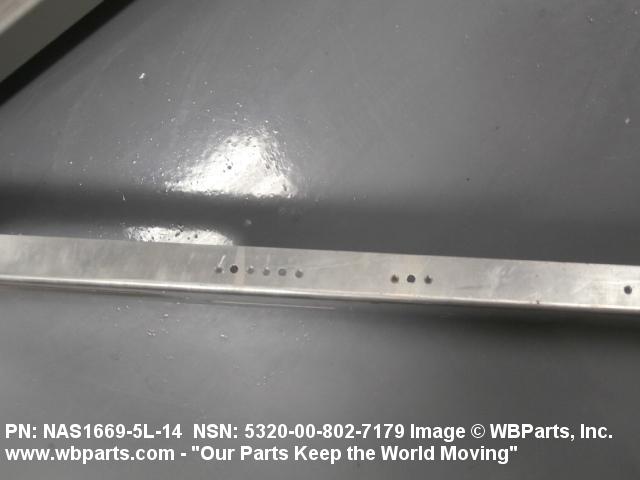

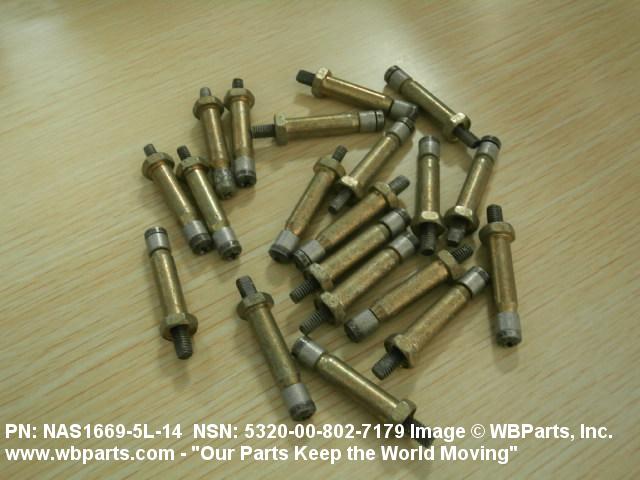

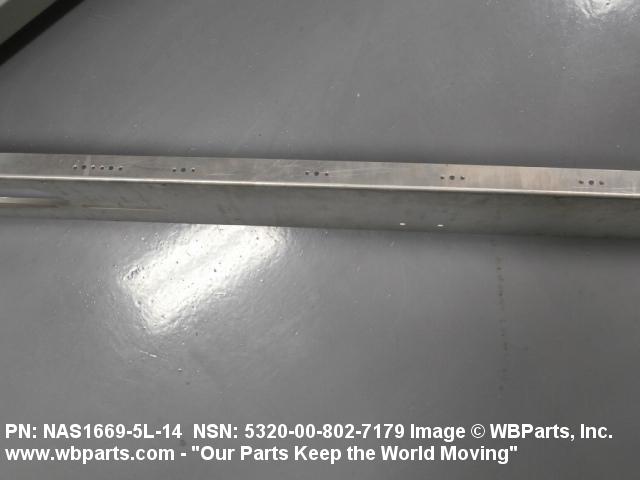

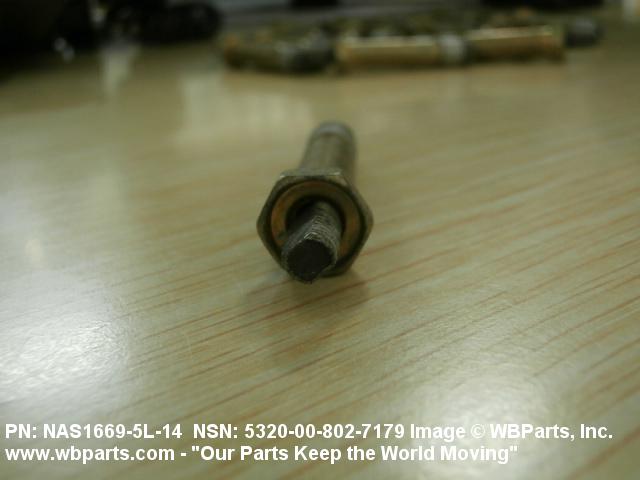

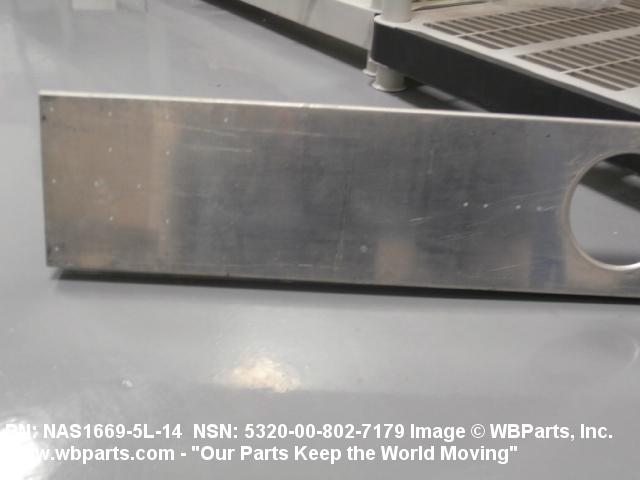

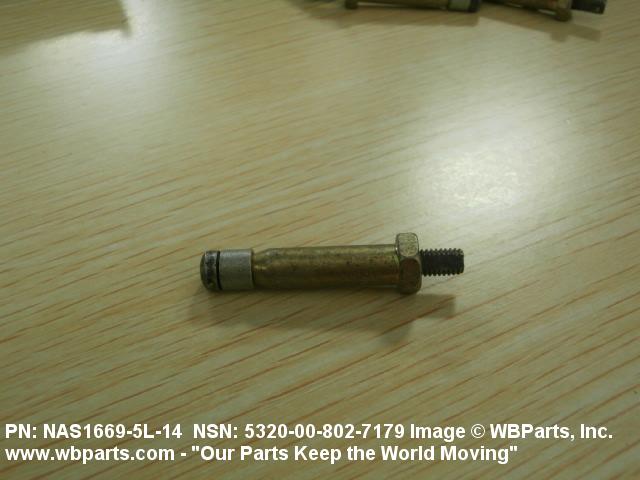

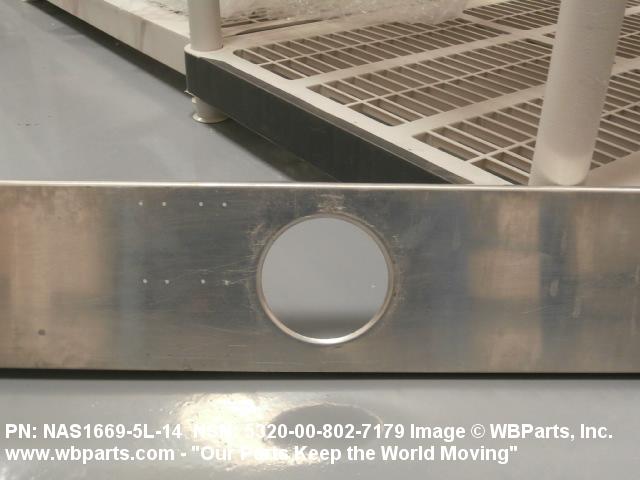

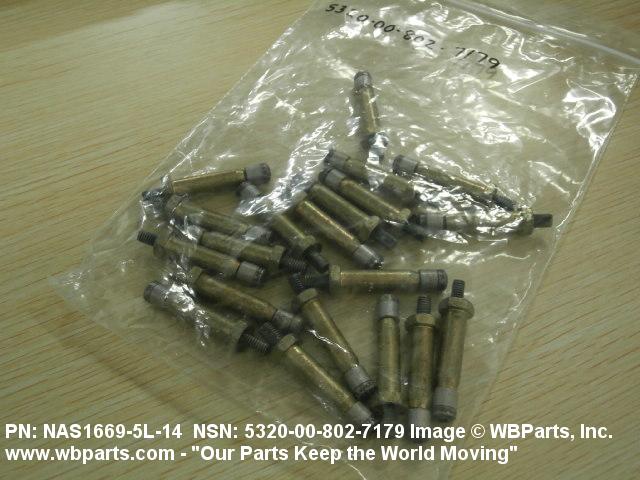

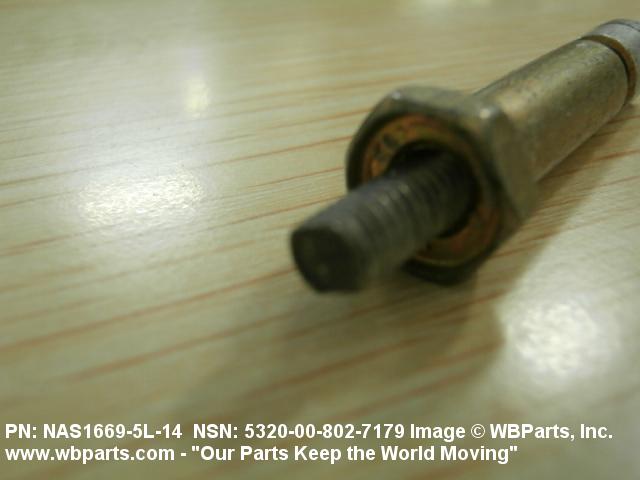

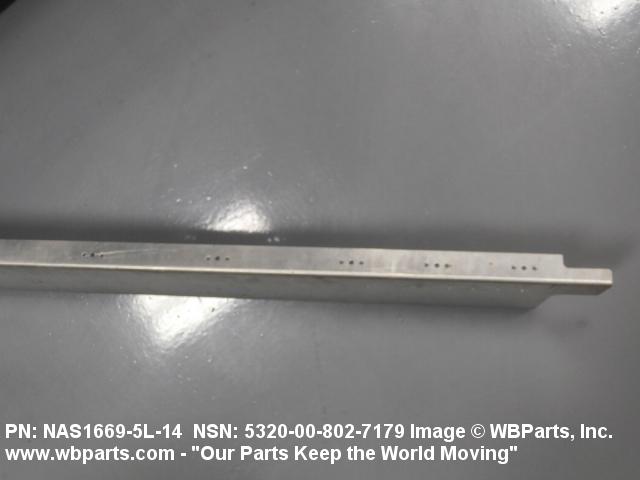

Drawings & Photos | NSN 5320-00-802-7179
Cross Reference | NSN 5320-00-802-7179
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BE10A14H | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1669-5-14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1669-5DL14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1669-5L14 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PL312-14 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PLT210-10-14 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT210-10-14 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PP312-14 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-802-7179
Technical Data | NSN 5320-00-802-7179
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 BOLT STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 NUT STEEL COMP 304 OR STEEL COMP 303F OR STEEL COMP 303 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE BOLT MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE NUT QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR AMS 5639 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5641 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A582 ASSN STD 3RD MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE BOLT CADMIUM AND CHROMATE NUT CADMIUM AND PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE BOLT QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-416,TY 1,CL 3 FED SPEC 1ST TREATMENT RESPONSE AND QQ-P-35 FED SPEC 2ND TREATMENT RESPONSE SLEEVE |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM BOLT 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM NUT |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAT TREATMENT | ANNEALED OVERALL |
| SHEAR STRENGTH | 12000 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C17 HEXAGON |
| HEAD HEIGHT | 0.150 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.429 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | 1.016 INCHES MINIMUM AND 1.046 INCHES MAXIMUM |
| SHANK DIAMETER | 0.310 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| GRIP LENGTH | 0.844 INCHES MINIMUM AND 0.906 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-802-7179
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
