NSN 5320-00-757-5506 HL21PB67, HL21PB-6-7, HL21PB6-7
Product Details | PIN-RIVET
5320-00-757-5506 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL21PB67, HL21PB-6-7, HL21PB6-7, HS606667, HS6066-6-7, GB510C37, GB510C3-7, 10004767, 100-047-6-7, 5320-00-757-5506, 00-757-5506, 5320007575506, 007575506
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 FEB 1968 | 00-757-5506 | 67165 ( PIN-RIVET ) |

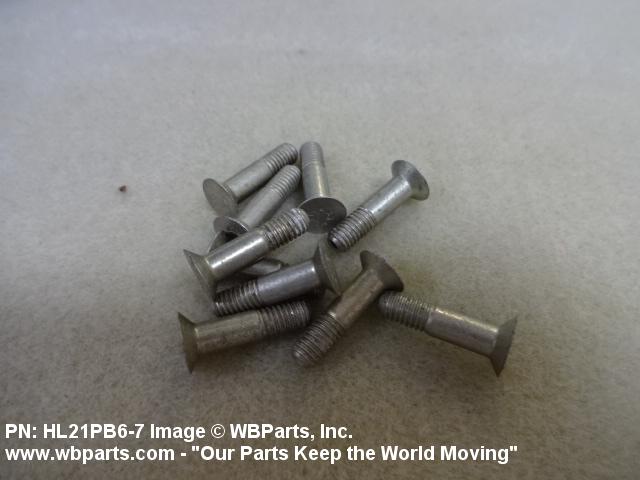

Drawings & Photos | NSN 5320-00-757-5506
Demand History | NSN 5320-00-757-5506
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10004767 | 2023-10-303 | 5 | United States |
| 10004767 | 2023-10-297 | 5 | United States |
| HL21PB-6-7 | 2023-01-05 | 50 | United States |
| HL21PB-6-7 | 2022-07-208 | 6526 | DIBBS |
| HL21PB6-7 | 2022-07-208 | 6526 | DIBBS |
| HL21PB-6-7 | 2021-12-363 | 3290 | DIBBS |
| HL21PB6-7 | 2021-12-363 | 3290 | DIBBS |
| 5320-00-757-5506 | 2021-10-278 | 1 | GR |
| HL21PB67 | 2021-04-119 | 200 | GR |
| HL21PB67 | 2018-08-222 | 60 | US |
| 5320-00-757-5506 | 2015-02-40 | 7415 | DIBBS |
| 5320-00-757-5506 | 2015-01-29 | 7415 | DIBBS |
| 5320-00-757-5506 | 2015-01-07 | 2280 | DIBBS |
| 5320-00-757-5506 | 2015-01-05 | 20 | RU |
| HL21PB6-7 | 2014-06-157 | 50 | United States |
| HL21PB-6-7 | 2012-06-171 | 14 | Malaysia |
| 5320-00-757-5506 | 2008-02-54 | 400 | Thailand |
Cross Reference | NSN 5320-00-757-5506
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100-047-6-7 | 97499 | BELL HELICOPTER TEXTRON INC. |
| GB510C3-7 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| HL21PB-6-7 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL21PB-6-7 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL21PB-6-7 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL21PB-6-7 | 60516 | WEST COAST AEROSPACE INC |
| HL21PB6-7 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL21PB6-7 | 73197 | HI-SHEAR CORPORATION |
| HL21PB6-7 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL21PB6-7 | 97928 | HUCK INTL INC |
| HL21PB6-7 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| HL21PB6-7 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| HL21PB6-7 | L4528 | LISI AEROSPACE CANADA CORP |
| HL21PB6-7 | R1120 | SATAIR A/S |
| HS6066-6-7 | 02731 | MCDONNELL DOUGLAS HELICOPTER CO INC |
| HS6066-6-7 | 8V613 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-757-5506
Related Products | NSN 5320-00-757-5506
Technical Data | NSN 5320-00-757-5506
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A9 FLUSH COUNTERSUNK |

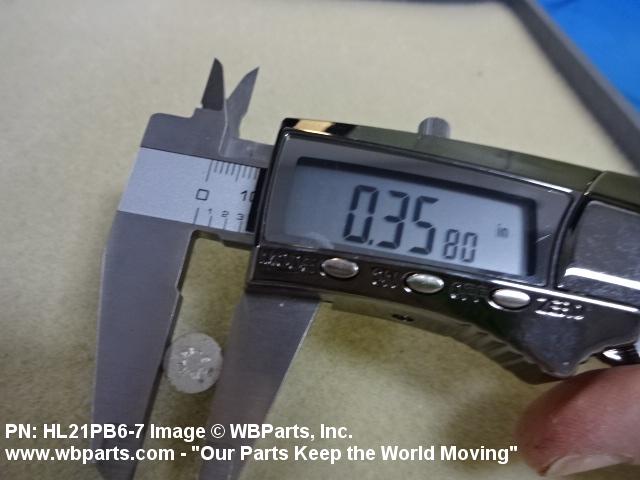

| HEAD MAJOR DIAMETER | 0.377 INCHES MINIMUM AND 0.381 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B31 PIN-RIVET, STRAIGHT, THREADED |

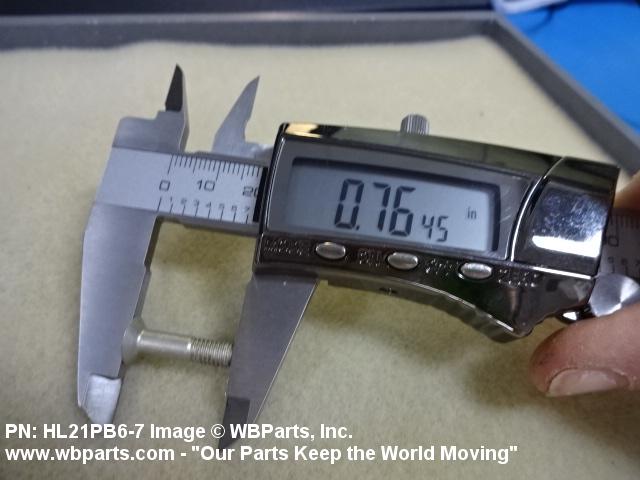

| FASTENER LENGTH | 0.753 INCHES MINIMUM AND 0.773 INCHES MAXIMUM |

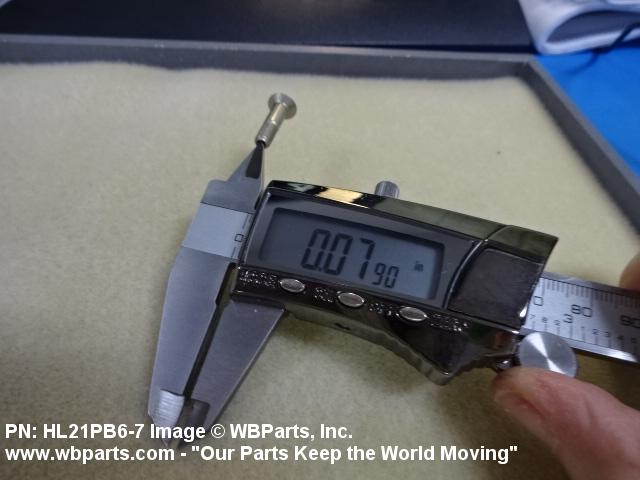

| WIDTH BETWEEN FLATS | 0.079 INCHES MINIMUM AND 0.081 INCHES MAXIMUM |

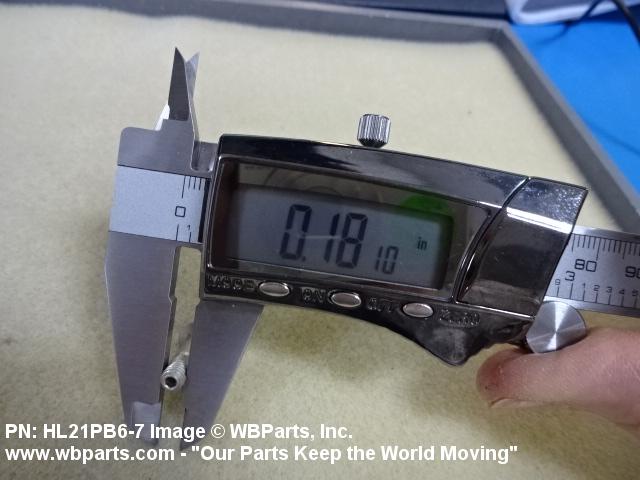

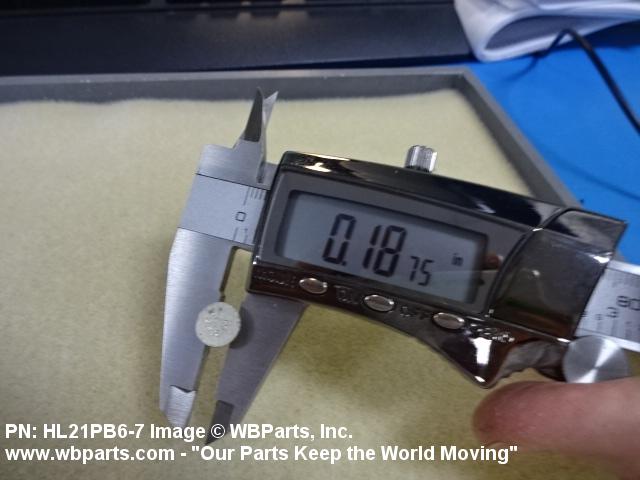

| SHANK DIAMETER | 0.189 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |

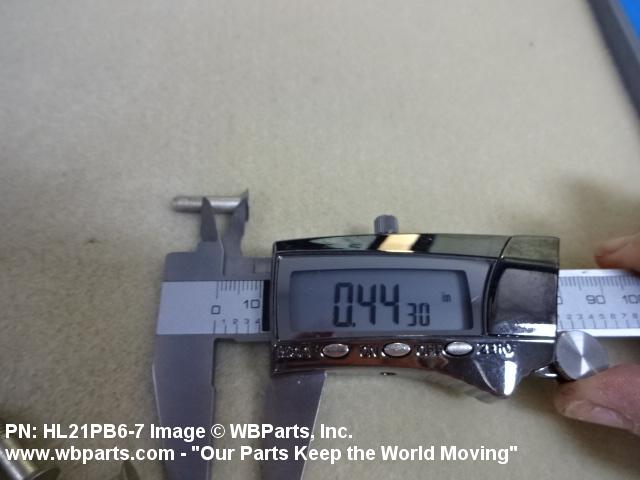

| GRIP LENGTH | 0.443 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
Restrictions/Controls & Freight Information | NSN 5320-00-757-5506
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
