NSN 5320-00-754-4501 MS246627, MS24662-7, CDR9301MS404
Product Details | BLIND RIVET
5320-00-754-4501 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS246627, MS24662-7, CDR9301MS404, CDR-9301-MS-4-04, 5320-00-754-4501, 00-754-4501, 5320007544501, 007544501
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-754-4501 | 00864 ( RIVET, BLIND ) |

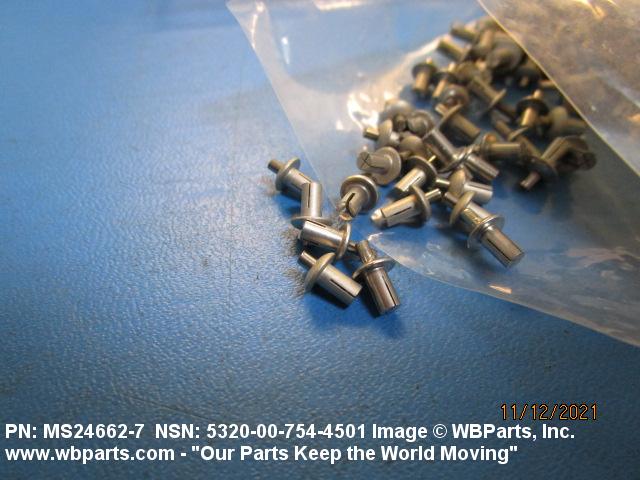

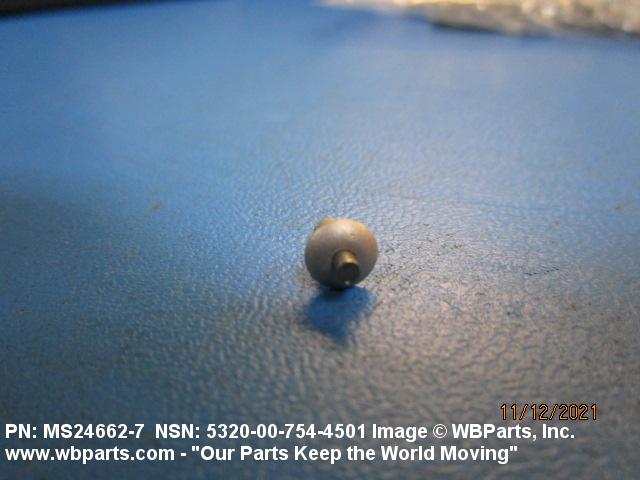

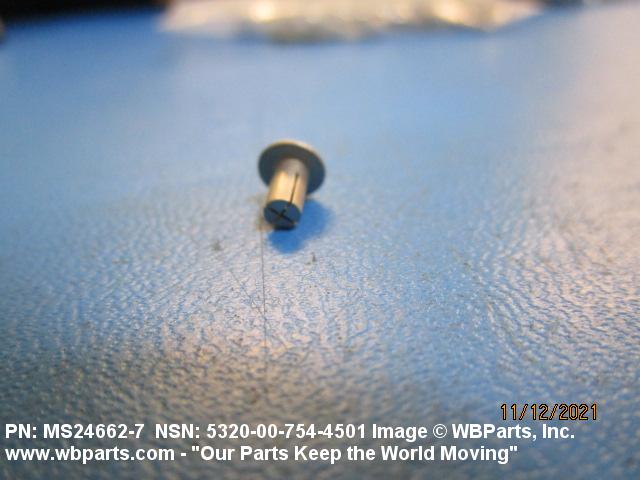

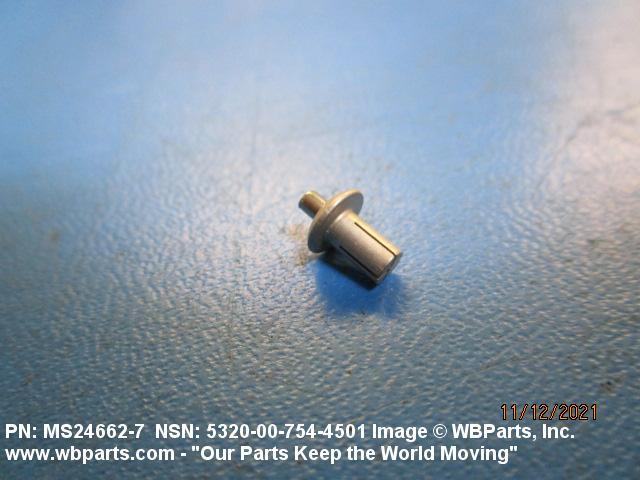

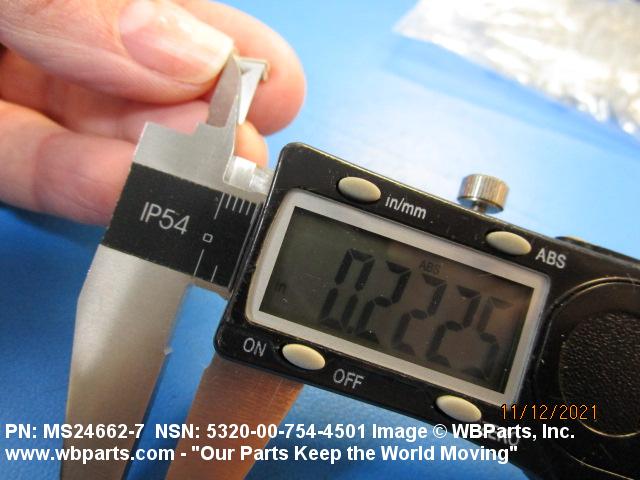

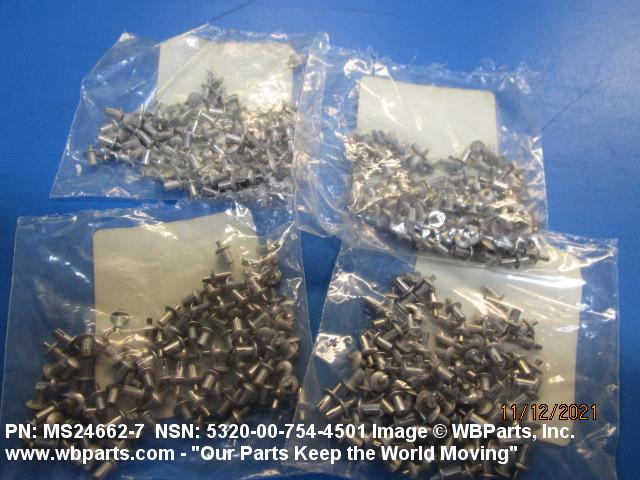

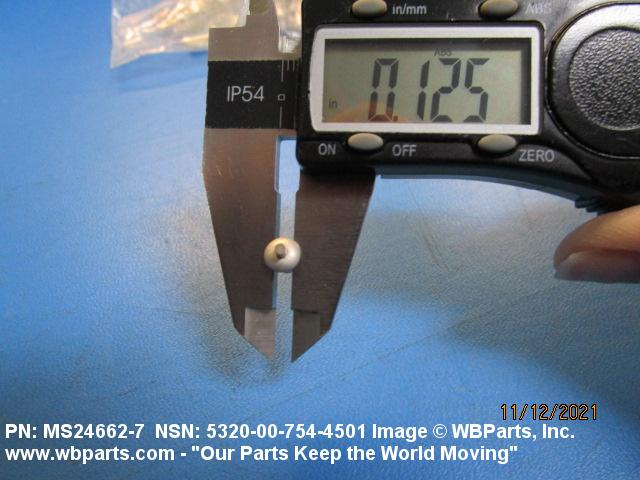

Drawings & Photos | NSN 5320-00-754-4501
Demand History | NSN 5320-00-754-4501
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS246627 | 2021-10-298 | 400 | United States |
| MS246627 | 2021-10-298 | 200 | United States |
Cross Reference | NSN 5320-00-754-4501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CDR-9301-MS-4-04 | 05693 | CHERRY TEXTRON INC CHERRY COMMERCIAL FASTENERS PRODUCTS |
| CDR-9301-MS-4-04 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| MS24662-7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24662-7 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-754-4501
Related Products | NSN 5320-00-754-4501
Technical Data | NSN 5320-00-754-4501
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OR ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 303F OR STEEL COMP 303S OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 323 OR STEEL COMP 324 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 385 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC ALL MATERIAL RESPONSES SLEEVE 66 FED STD ALL MATERIAL RESPONSES STEM |
| SURFACE TREATMENT | ANODIZE OR CHROMATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE SLEEVE |
| HEAD STYLE | C28 UNIVERSAL |

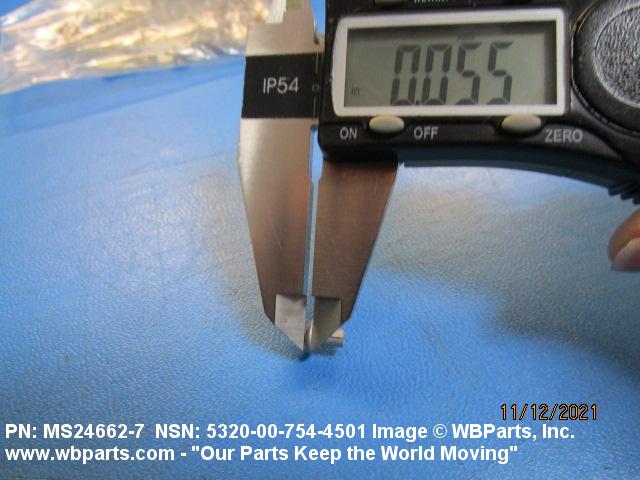

| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |

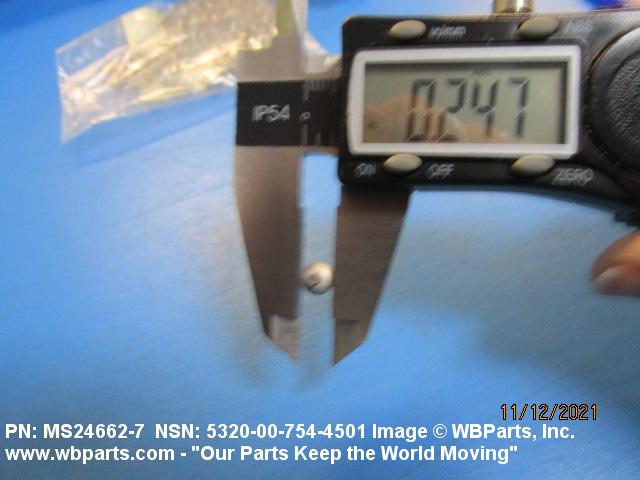

| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| SHANK STYLE | D20 DRIVE PIN |
| FASTENER LENGTH | 0.209 INCHES MINIMUM AND 0.249 INCHES MAXIMUM |
| SHANK DIAMETER | 0.123 INCHES MINIMUM AND 0.127 INCHES MAXIMUM |
| GRIP LENGTH | 0.110 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| EXPANSION DEVICE | DRIVE STEM-TYPE H |
Restrictions/Controls & Freight Information | NSN 5320-00-754-4501
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
