NSN 5320-00-735-6971 F2004, F200-4, 9763004102
Product Details | BLIND RIVET
5320-00-735-6971 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: F2004, F200-4, 9763004102, 97-63004-102, 5320-00-735-6971, 00-735-6971, 5320007356971, 007356971
Hardware and Abrasives | Rivets
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1961 | 00-735-6971 | 00864 ( RIVET, BLIND ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-735-6971
Related Products | NSN 5320-00-735-6971
Technical Data | NSN 5320-00-735-6971
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
SURFACE TREATMENT | CADMIUM OVERALL |
HEAD STYLE | C9 FLUSH COUNTERSUNK |
HEAD HEIGHT | 0.077 INCHES NOMINAL |
HEAD MAJOR DIAMETER | 0.378 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |

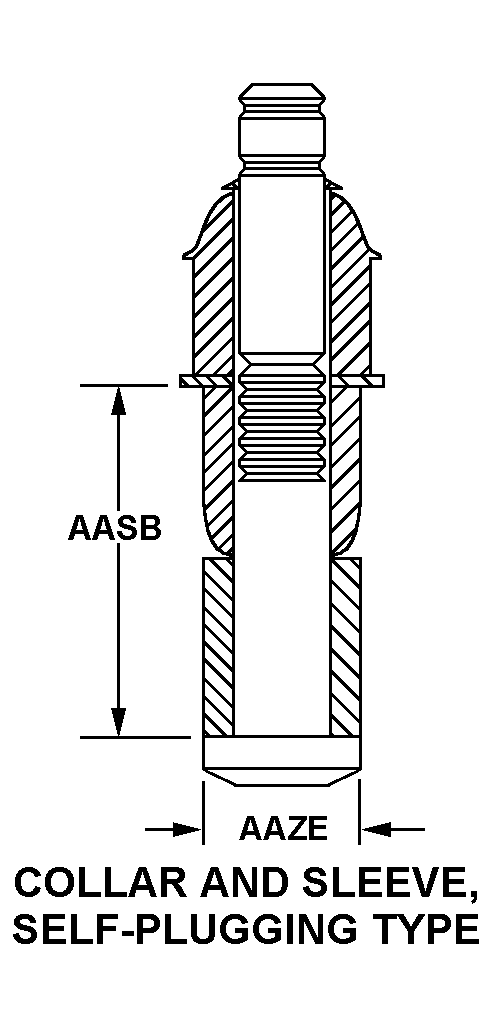

SHANK STYLE | D21 COLLAR AND SLEEVE, SELF-PLUGGING TYPE |
FASTENER LENGTH | 0.353 INCHES NOMINAL |
SHANK DIAMETER | 0.197 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
GRIP LENGTH | 0.219 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
MANUFACTURERS CODE | 98524 |
DESIGN CONTROL REFERENCE | F200-4 |
