NSN 5320-00-702-1991 NAS167039, NAS1670-3-9, NAS16703L9
Product Details | BLIND RIVET
5320-00-702-1991 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS167039, NAS1670-3-9, NAS16703L9, NAS1670-3L9, BA6A9F, BE6A9F, F2009, F200-9, FF2009, FF200-9, FL2009, FL200-9, PLT11069, PLT110-6-9, WF2009, WF200-9, 3M8169, 3M81-6-9, 9763004107, 97-63004-107, 5320-00-702-1991, 00-702-1991, 5320007021991, 007021991
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-702-1991 | 00864 ( RIVET, BLIND ) |

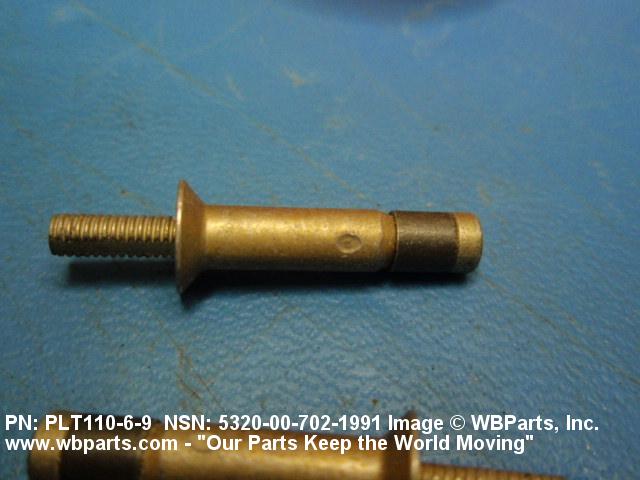

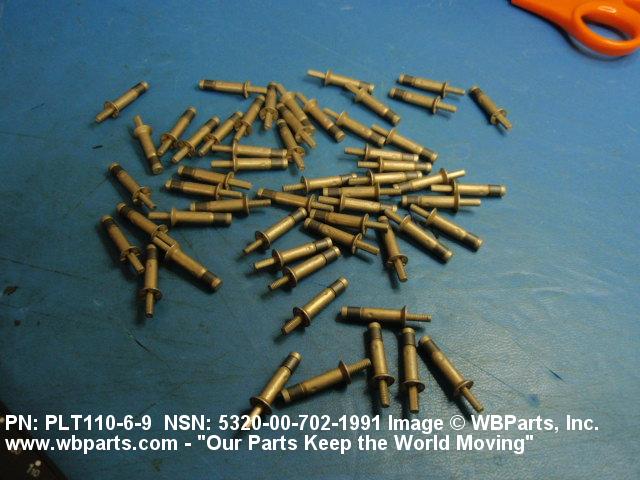

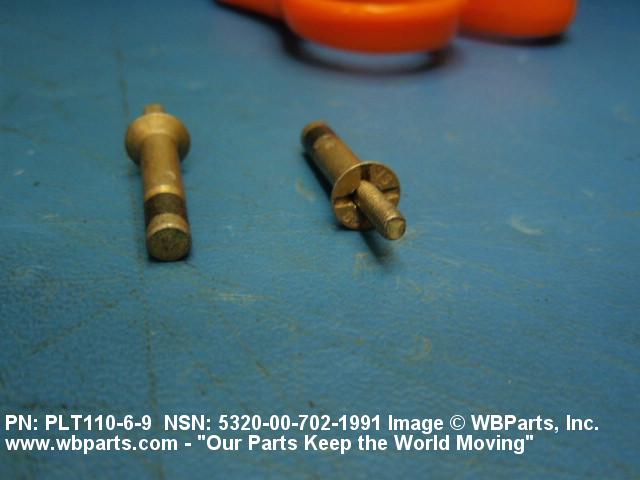

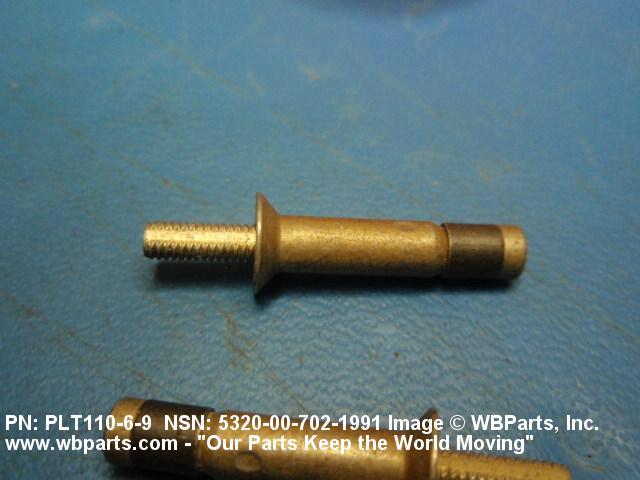

Drawings & Photos | NSN 5320-00-702-1991
Demand History | NSN 5320-00-702-1991
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1670-3L9 | 2014-06-157 | 50 | United States |
| PLT11069 | 2011-01-10 | 50 | Canada |
| F2009 | 2009-09-253 | 17 | US |
| F2009 | 2009-09-253 | 17 | US |
| F2009 | 2009-09-253 | 17 | US |
Cross Reference | NSN 5320-00-702-1991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M81-6-9 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 97-63004-107 | 0WLU1 | GENERAL DYNAMICS CORP CONVAIR DIV |
| 97-63004-107 | 14170 | HUGHES MISSILE SYSTEMS CO SAN DIEGO |
| 97-63004-107 | 63910 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 97-63004-107 | 7B709 | TRACOR FLIGHT SYSTEMS INC SUB OF TRACOR INC |
| BA6A9F | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BA6A9F | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| BE6A9F | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| F200-9 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| F200-9 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| FF200-9 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| FF200-9 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| FF200-9 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| FL200-9 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| NAS1670-3-9 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1670-3L9 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PLT110-6-9 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT110-6-9 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| WF200-9 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| WF200-9 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-702-1991
Related Products | NSN 5320-00-702-1991
Technical Data | NSN 5320-00-702-1991
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY STEEL CORROSION RESISTING SLEEVE STEEL STEM |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.378 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | 0.651 INCHES MINIMUM AND 0.681 INCHES MAXIMUM |
| SHANK DIAMETER | 0.197 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| GRIP LENGTH | 0.532 INCHES MINIMUM AND 0.594 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-00-702-1991
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-702-1991
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
