NSN 5320-00-702-0176 NAS141403, NAS1414-03, SLS100T0403
Product Details | PIN-RIVET

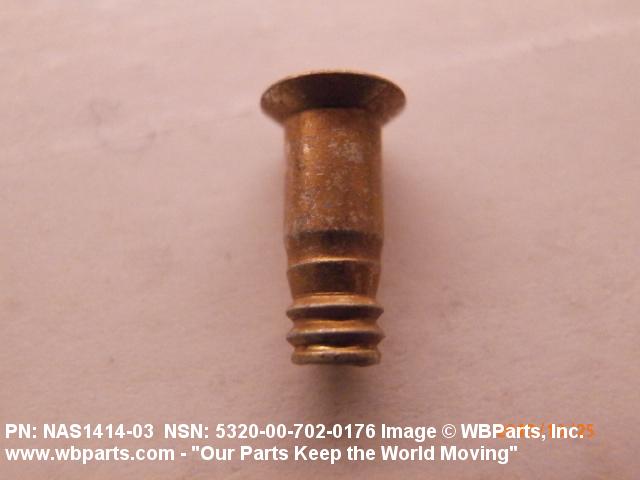

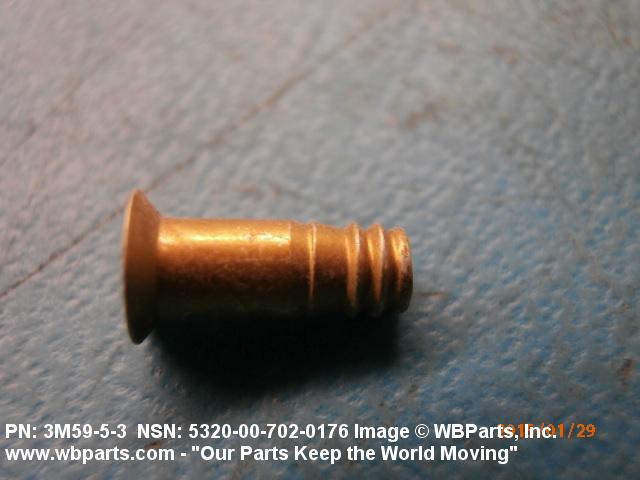

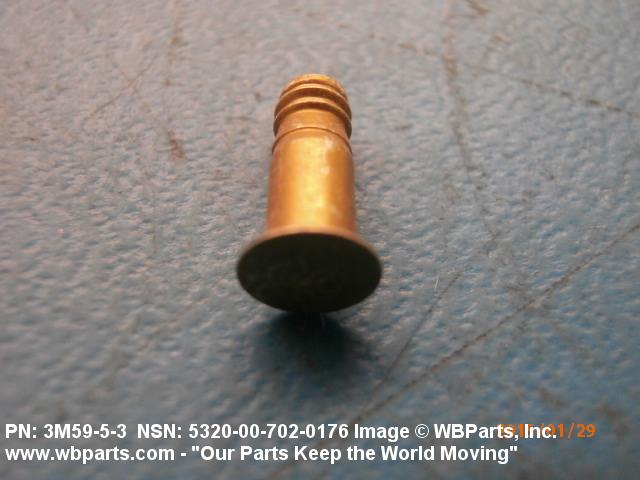

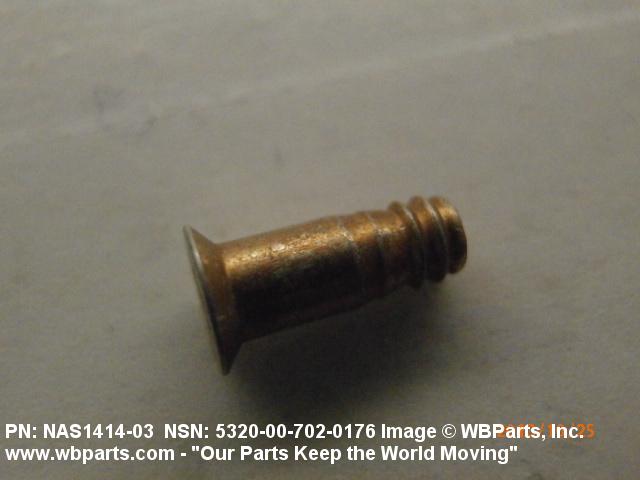

5320-00-702-0176 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS141403, NAS1414-03, SLS100T0403, SLS100-T04-03, SLS100T43, SLS100T4-3, 3M5953, 3M59-5-3, 5320-00-702-0176, 00-702-0176, 5320007020176, 007020176
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-702-0176 | 67165 ( PIN-RIVET ) |

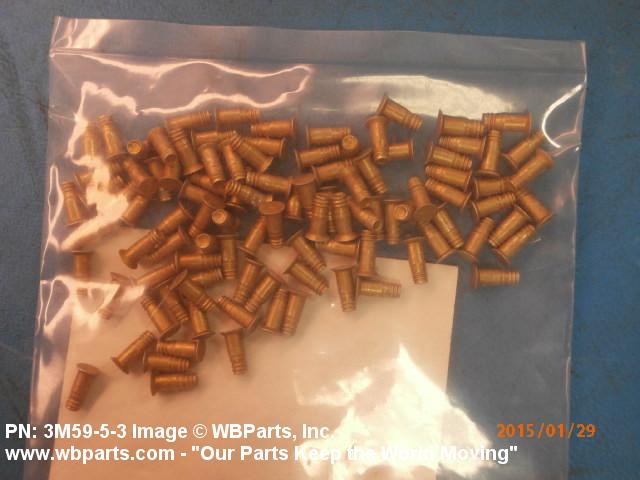

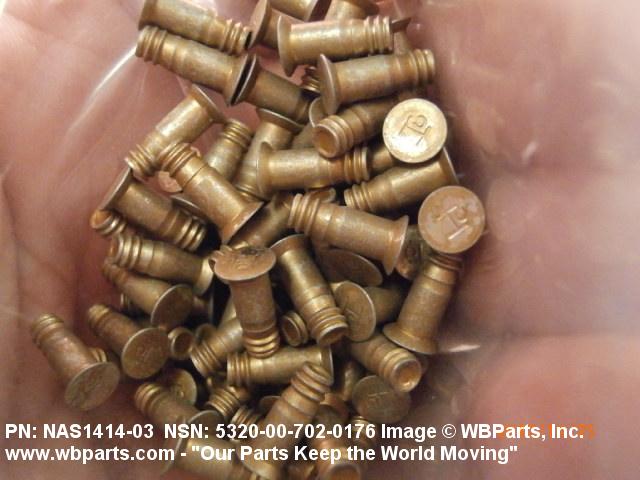

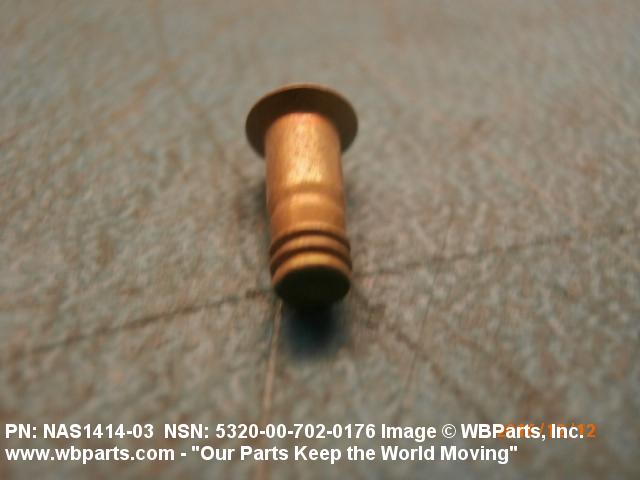

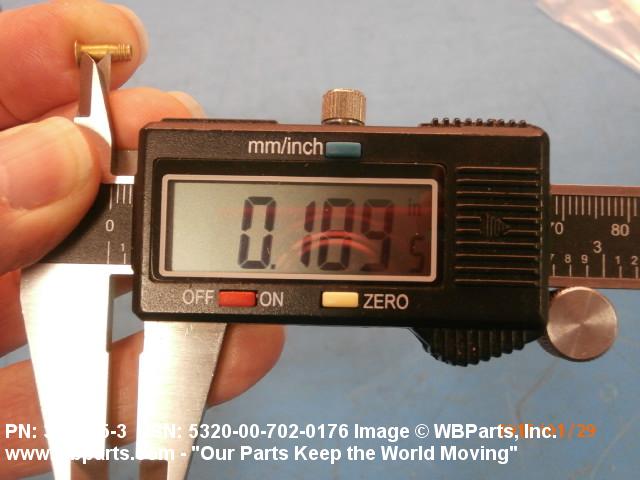

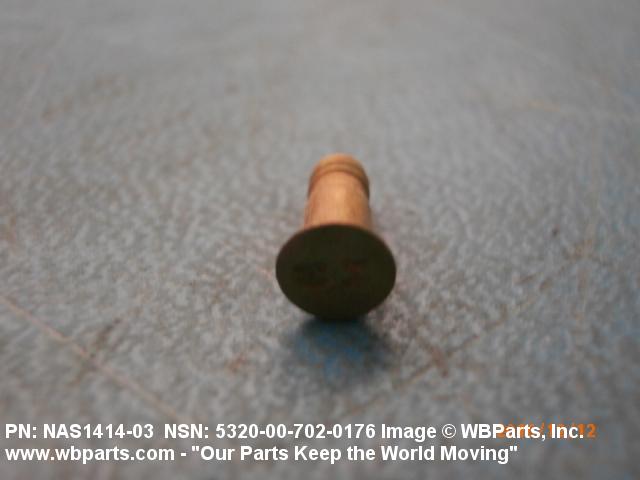

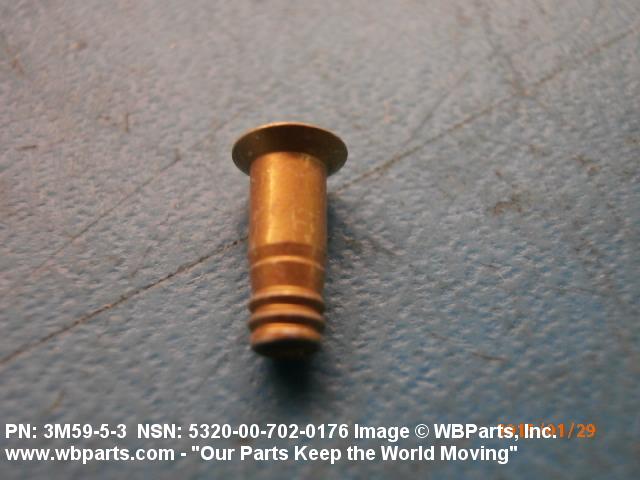

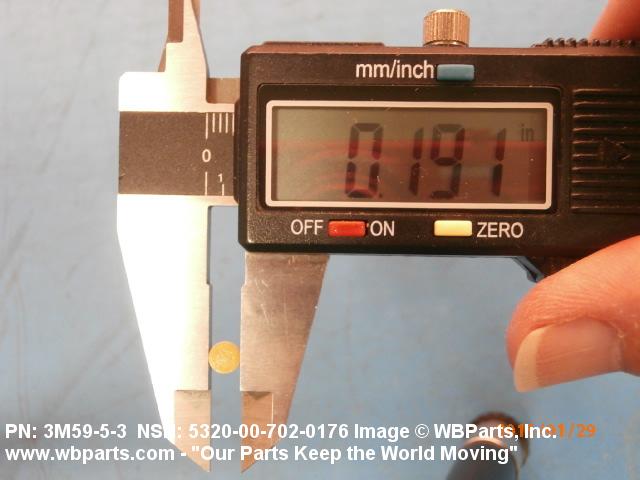

Drawings & Photos | NSN 5320-00-702-0176
Demand History | NSN 5320-00-702-0176
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS141403 | 2019-04-99 | 200 | United States |
| 5320-00-702-0176 | 2016-12-337 | 200 | United States |
| NAS141403 | 2015-01-13 | 500 | United States |
| NAS141403 | 2013-10-289 | 500 | United States |
Cross Reference | NSN 5320-00-702-0176
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M59-5-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| NAS1414-03 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1414-03 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SLS100-T04-03 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| SLS100T4-3 | 78652 | TEXTRON INC TOWNSEND DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-702-0176
Related Products | NSN 5320-00-702-0176
Technical Data | NSN 5320-00-702-0176
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

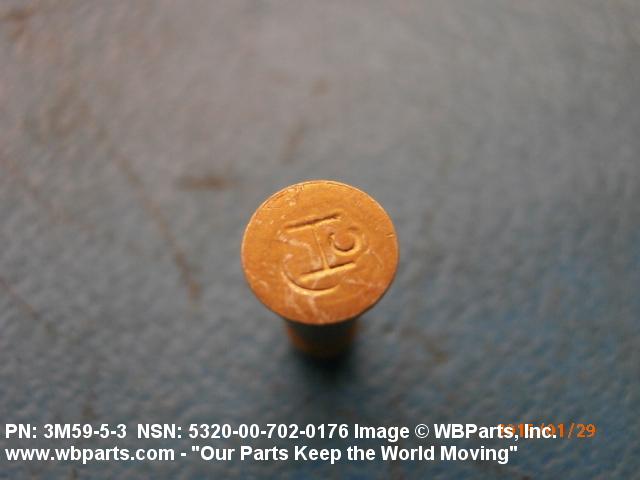

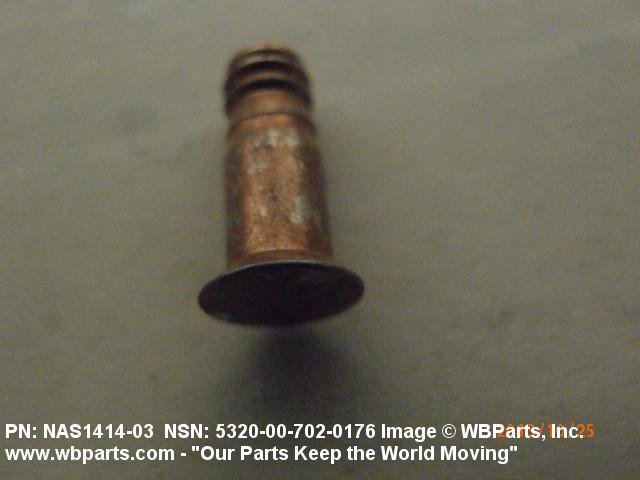

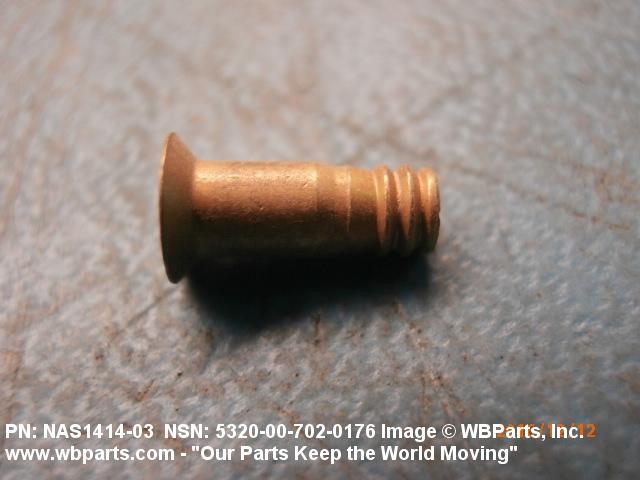

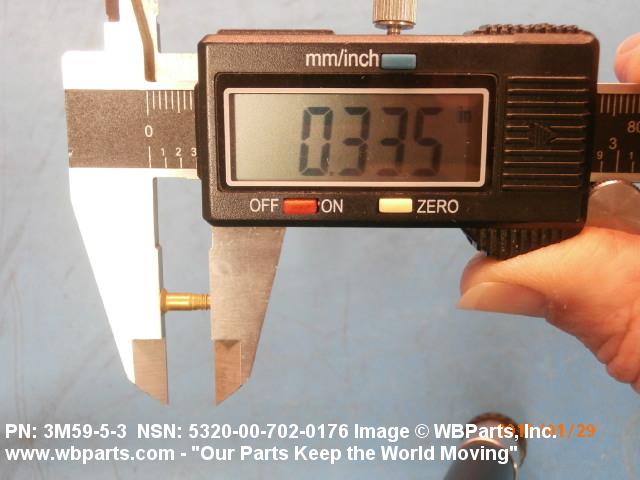

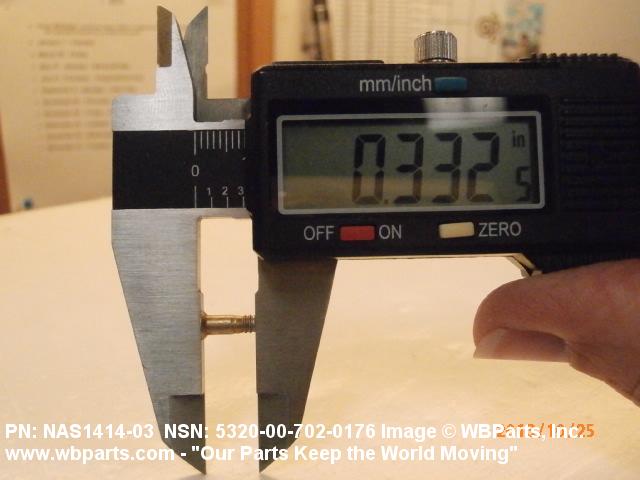

| HEAD STYLE | A9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.211 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | B26 STUMP |
| FASTENER LENGTH | 0.325 INCHES MINIMUM AND 0.335 INCHES MAXIMUM |

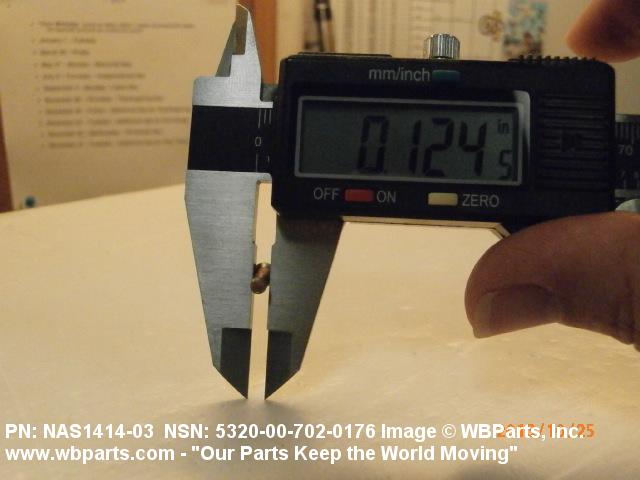

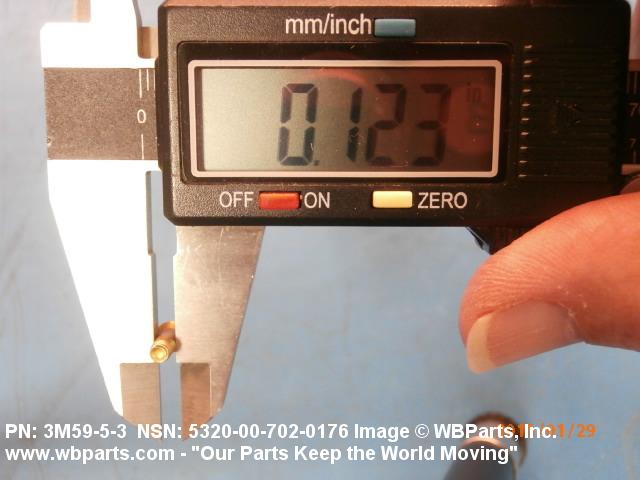

| SHANK DIAMETER | 0.123 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |

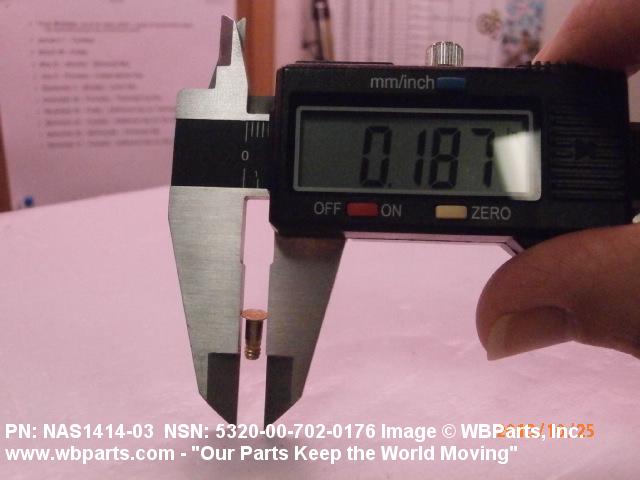

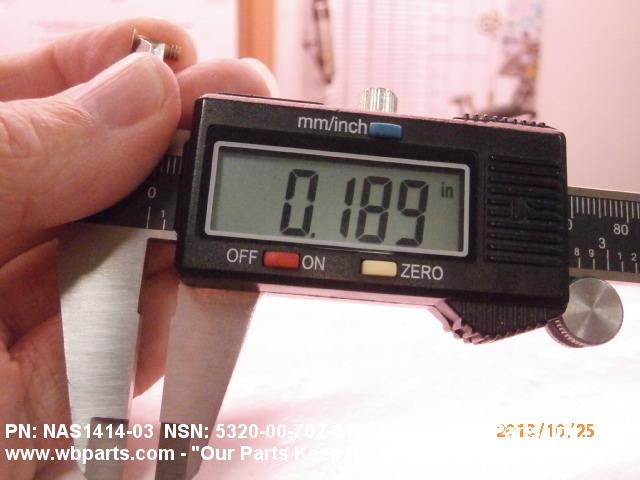

| GRIP LENGTH | 0.188 INCHES NOMINAL |
