NSN 5320-00-701-9798 NAS1739B65, NAS1739B6-5, CR224865
Product Details | BLIND RIVET
5320-00-701-9798 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1739B65, NAS1739B6-5, CR224865, CR2248-6-5, 5320-00-701-9798, 00-701-9798, 5320007019798, 007019798
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 FEB 1968 | 00-701-9798 | 00864 ( RIVET, BLIND ) |

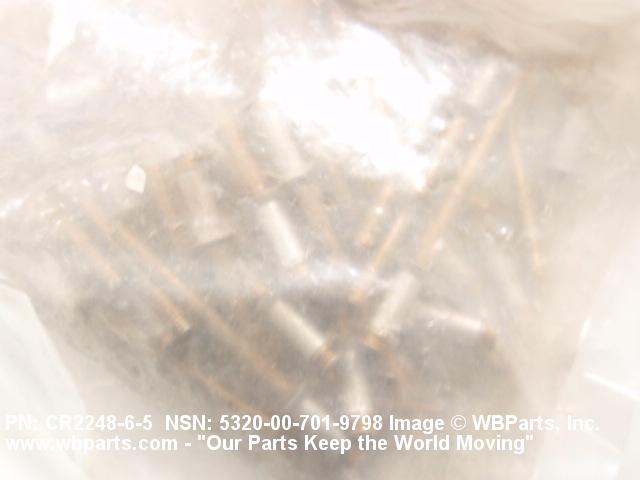

Drawings & Photos | NSN 5320-00-701-9798
Demand History | NSN 5320-00-701-9798
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-701-9798 | 2024-09-270 | 637 | DIBBS |
| 5320-00-701-9798 | 2019-10-296 | 499 | DIBBS |
| NAS1739B65 | 2016-08-235 | 50 | United States |
| CR224865 | 2010-11-308 | 1 | Canada |
| NAS1739B65 | 2008-03-87 | 610 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-701-9798
Related Products | NSN 5320-00-701-9798
Technical Data | NSN 5320-00-701-9798
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OR NICKEL ALLOY R-405 LOCKING RING ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | 11-N-281 FED SPEC ALL MATERIAL RESPONSES LOCKING RING QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | ANODIZE OR CHROMATE SLEEVE CADMIUM AND CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE SLEEVE QQ-P-416,TY2 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.349 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.531 INCHES MAXIMUM |
| SHANK DIAMETER | 0.200 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| GRIP LENGTH | 0.251 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1739 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
