NSN 5320-00-687-5162 NAS147006, NAS1470-06, R3001T1006
Product Details | PIN-RIVET

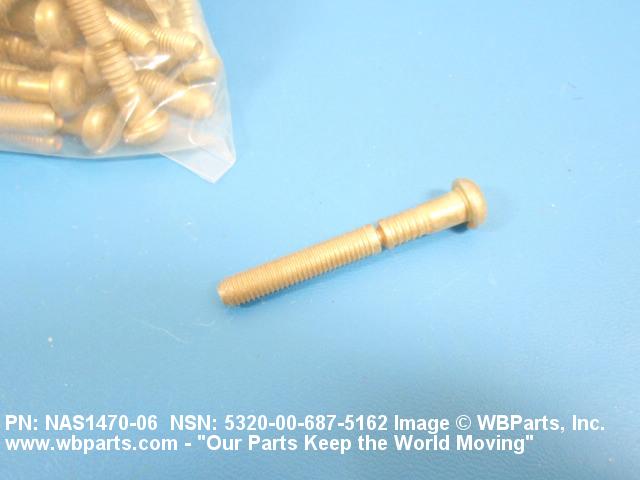

5320-00-687-5162 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: NAS147006, NAS1470-06, R3001T1006, R3001-T10-06, 5320-00-687-5162, 00-687-5162, 5320006875162, 006875162
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-687-5162 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-687-5162
Demand History | NSN 5320-00-687-5162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-687-5162 | 2022-08-222 | 400 | Singapore |
| 5320-00-687-5162 | 2011-06-174 | 199 | DIBBS |
| 5320-00-687-5162 | 2009-02-44 | 160 | United States |
