NSN 5320-00-619-4099 MS20426AD310, MS20426AD3-10, MS20426AD310A
Product Details | SOLID RIVET
5320-00-619-4099 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426AD310, MS20426AD3-10, MS20426AD310A, MS20426AD3-10A, AN426AD310, AN426AD3-10, 854115, 10123793 , 5320-00-619-4099, 00-619-4099, 5320006194099, 006194099
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-619-4099 | 00861 ( RIVET, SOLID ) |

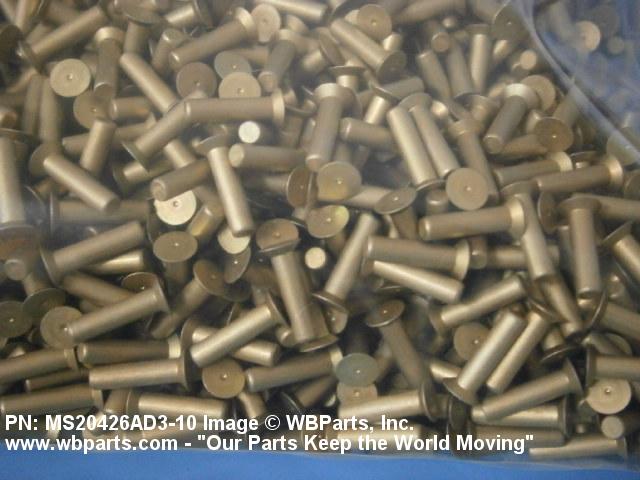

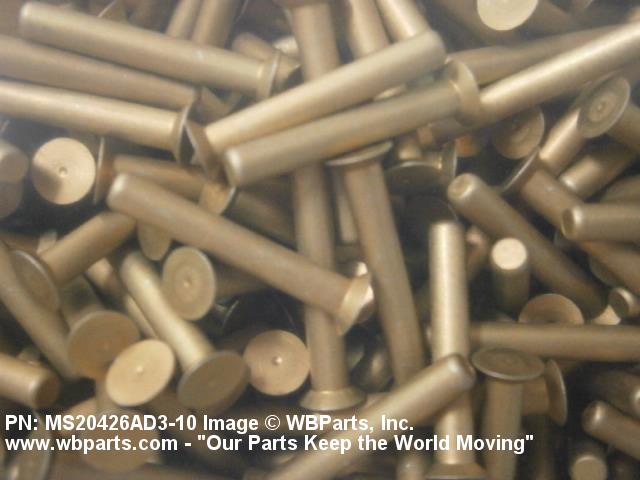

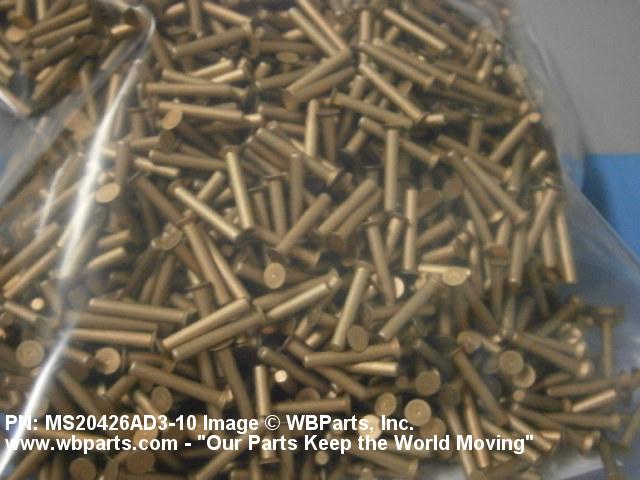

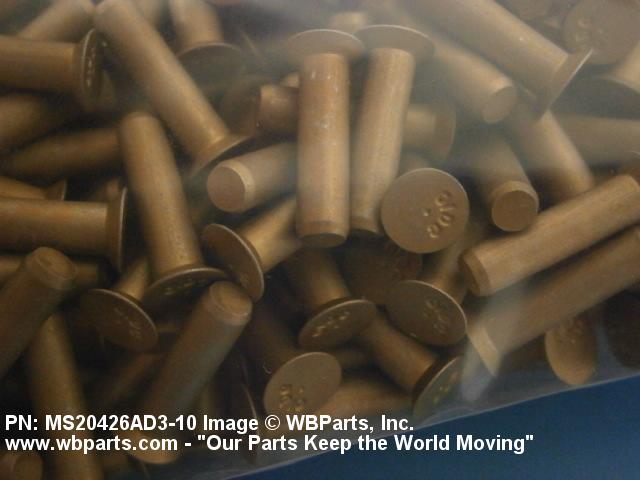

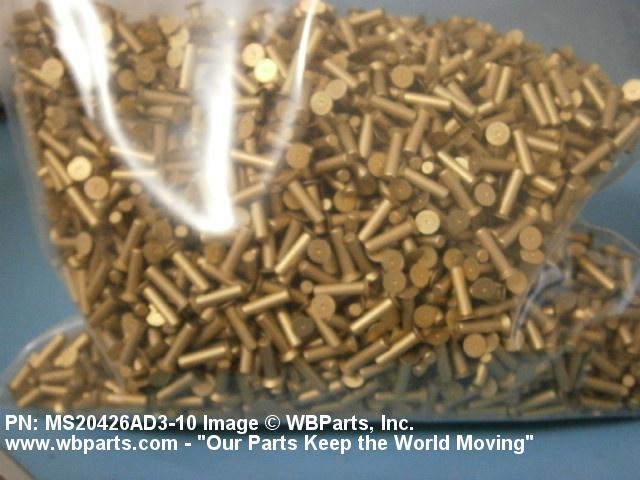

Drawings & Photos | NSN 5320-00-619-4099
Demand History | NSN 5320-00-619-4099
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-619-4099 | 2024-09-274 | 1000 | Singapore |
| MS20426AD310 | 2024-09-256 | 1000 | Saudi Arabia |
| 5320-00-619-4099 | 2023-06-173 | 1500 | Taiwan |
| MS20426AD310 | 2023-03-74 | 100 | Turkey |
| MS20426AD310 | 2018-01-03 | 140 | United States |
| MS20426AD310 | 2017-03-88 | 368 | US |
| 5320-00-619-4099 | 2016-06-160 | 2 | PH |
| 5320-00-619-4099 | 2015-04-113 | 1 | CA |
| MS20426AD3-10 | 2014-06-168 | 60 | Turkey |
| 5320-00-619-4099 | 2013-11-310 | 125 | MX |
| MS20426AD310 | 2011-12-341 | 1500 | Israel |
| MS20426AD310 | 2011-11-321 | 1000 | India |
| 5320-00-619-4099 | 2009-11-307 | 300 | United States |
| 5320-00-619-4099 | 2009-10-299 | 1338 | DIBBS |
| 5320-00-619-4099 | 2009-08-243 | 50 | US |
| 5320-00-619-4099 | 2009-06-166 | 580 | DIBBS |
| 5320-00-619-4099 | 2009-06-153 | 8 | United States |
| 5320-00-619-4099 | 2009-05-121 | 1000 | US |
| 5320-00-619-4099 | 2008-12-349 | 50 | United Kingdom |
| MS20426AD310 | 2008-07-185 | 10 | Brazil |
| MS20426AD310 | 2007-07-183 | 5 | US |
Cross Reference | NSN 5320-00-619-4099
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 854115 | 09786 | ORDNANCE SUPPLY OFFICE |
| 854115 | 19203 | PICATINNY ARSENAL |
| AN426AD3-10 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20426AD3-10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS20426AD3-10A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426AD3-10A | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-619-4099
Related Products | NSN 5320-00-619-4099
Technical Data | NSN 5320-00-619-4099
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.175 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |
| FASTENER LENGTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| SHANK DIAMETER | 0.093 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| GRIP LENGTH | 0.474 INCHES MINIMUM AND 0.494 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-00-619-4099
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-619-4099
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 LB : Pounds |
