NSN 5320-00-529-1144 NAS167145, NAS1671-4-5, NAS16714L5
Product Details | BLIND RIVET
5320-00-529-1144 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS167145, NAS1671-4-5, NAS16714L5, NAS1671-4L5, BC8A5H, P260A5, P260A-5, PL260A5, PL260A-5, PLT22085, PLT220-8-5, 10123761, 5320-00-529-1144, 00-529-1144, 5320005291144, 005291144
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 SEP 1974 | 00-529-1144 | 00864 ( RIVET, BLIND ) |

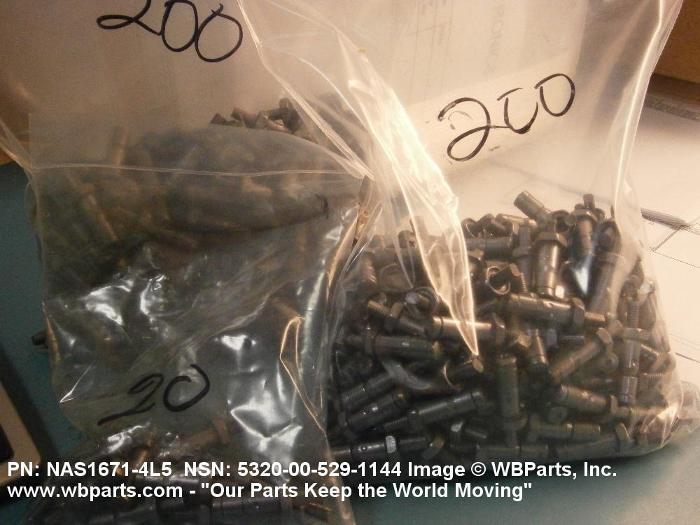

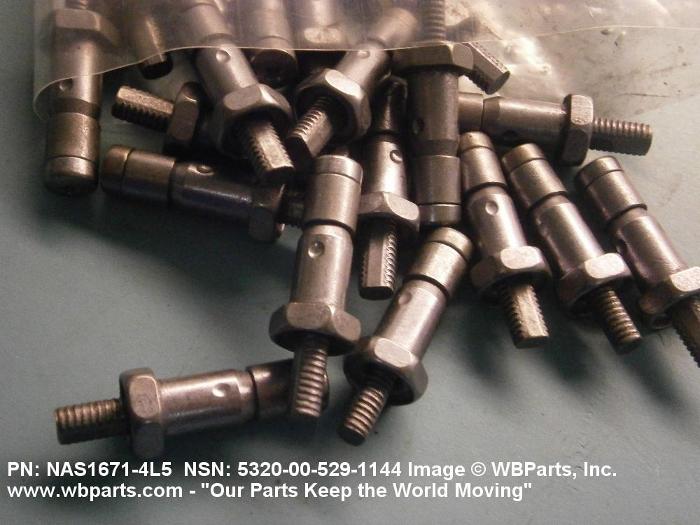

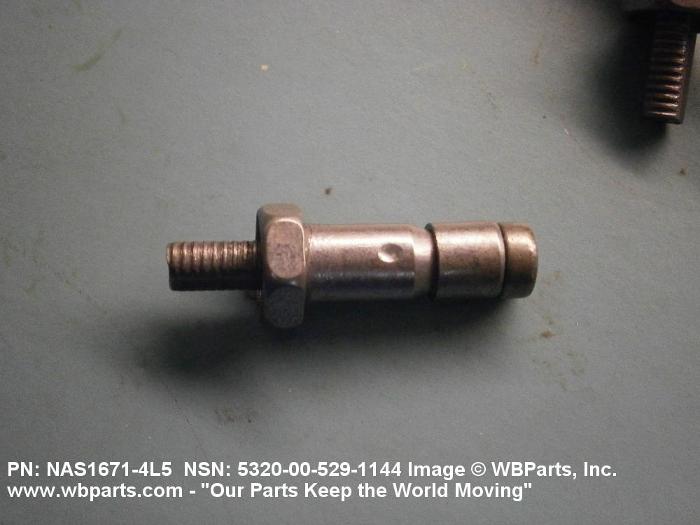

Drawings & Photos | NSN 5320-00-529-1144
Demand History | NSN 5320-00-529-1144
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS16714L5 | 2014-10-296 | 15000 | US |
| 5320-00-529-1144 | 2012-05-150 | 420 | United States |
Cross Reference | NSN 5320-00-529-1144
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BC8A5H | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BC8A5H | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| NAS1671-4-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1671-4L5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| P260A-5 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PL260A-5 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PLT220-8-5 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT220-8-5 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PLT220-8-5 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-529-1144
Related Products | NSN 5320-00-529-1144
Technical Data | NSN 5320-00-529-1144
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 30.0 ROCKWELL C MINIMUM AND 44.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 7200 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C17 HEXAGON |
| HEAD HEIGHT | 0.135 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.367 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | 1.116 INCHES MINIMUM AND 1.146 INCHES MAXIMUM |
| SHANK DIAMETER | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| GRIP LENGTH | 0.282 INCHES MINIMUM AND 0.344 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| SPECIAL FEATURES | SELF-LOCKING |
| SPECIFICATION/STANDARD DATA | 80205-NAS1671 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-529-1144
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-529-1144
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
