NSN 5320-00-498-3595 HL18611, HL18-6-11, 00-498-3595
Product Details | PIN-RIVET

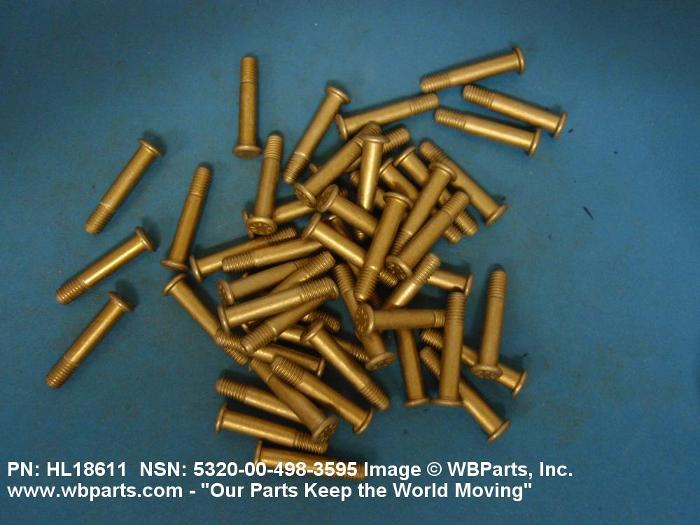

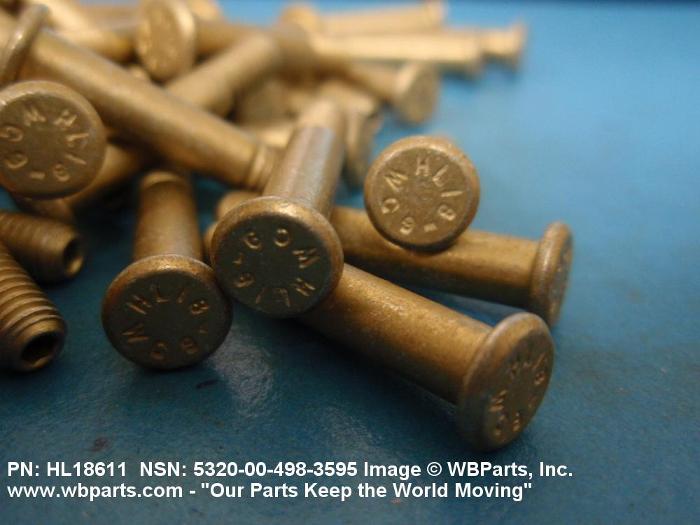

5320-00-498-3595 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Part Alternates: HL18611, HL18-6-11, 5320-00-498-3595, 00-498-3595, 5320004983595, 004983595
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 OCT 1969 | 00-498-3595 | 67165 ( PIN-RIVET ) |
Drawings & Photos | NSN 5320-00-498-3595
Demand History | NSN 5320-00-498-3595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HL18-6-11 | 2022-08-243 | 505 | DIBBS |
| 5320-00-498-3595 | 2011-09-245 | 2262 | DIBBS |
| HL18611 | 2011-03-77 | 50 | United States |
| 5320-00-498-3595 | 2009-02-43 | 4555 | DIBBS |
Cross Reference | NSN 5320-00-498-3595
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HL18-6-11 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| HL18-6-11 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18-6-11 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| HL18-6-11 | 60516 | WEST COAST AEROSPACE INC |
| HL18-6-11 | 73197 | HI-SHEAR CORPORATION |
| HL18-6-11 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| HL18-6-11 | 97928 | HUCK INTL INC |
