NSN 5320-00-431-7509 MS20426AD78, MS20426AD7-8, 00-431-7509
Product Details | SOLID RIVET
5320-00-431-7509 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426AD78, MS20426AD7-8, 5320-00-431-7509, 00-431-7509, 5320004317509, 004317509
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAY 1971 | 00-431-7509 | 00861 ( RIVET, SOLID ) |

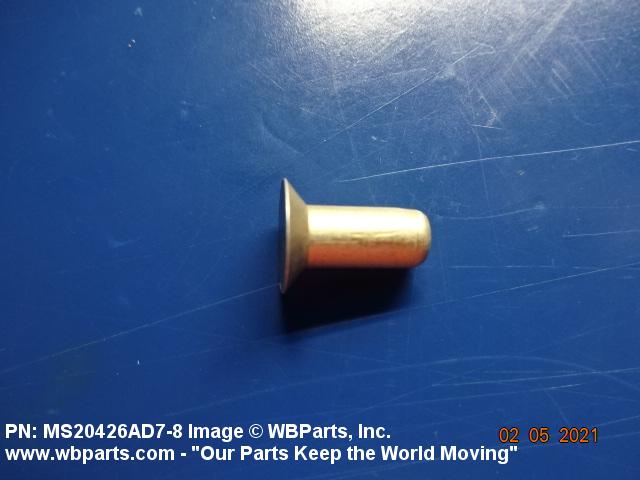

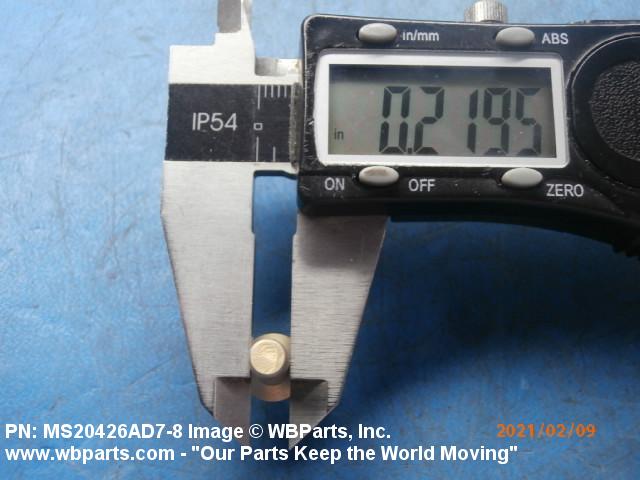

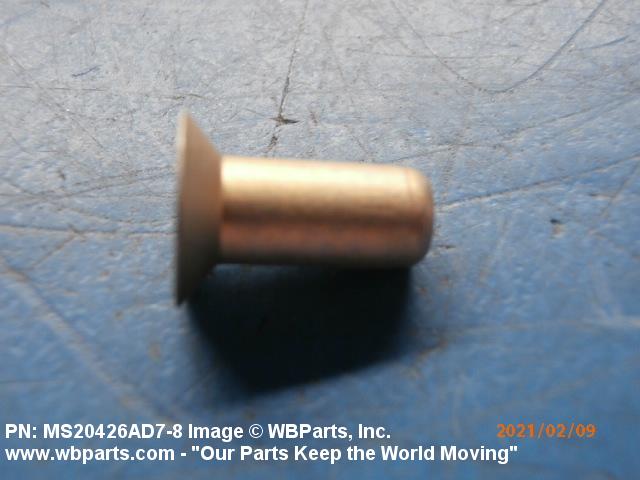

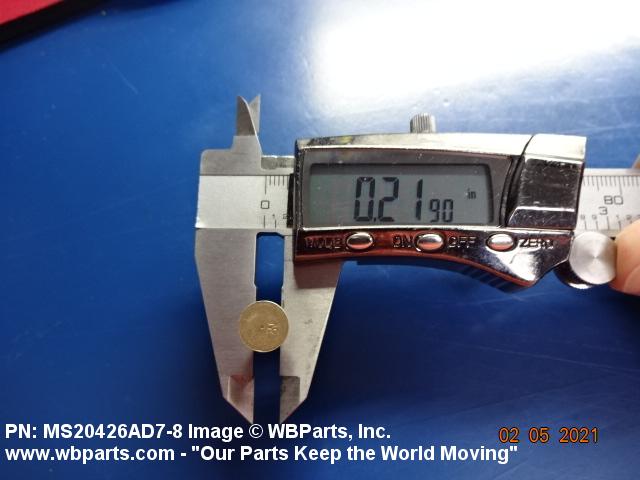

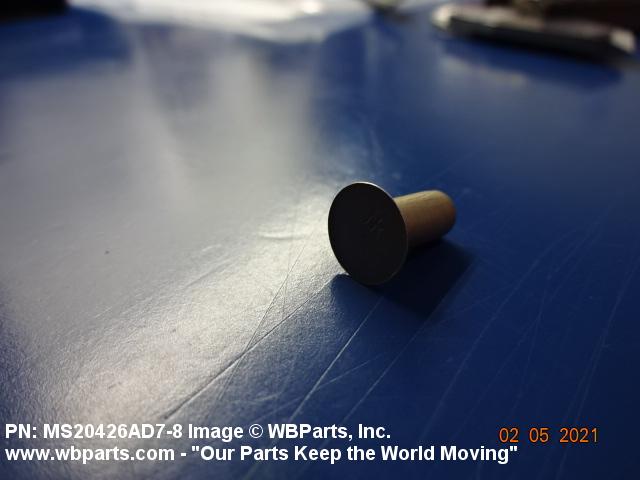

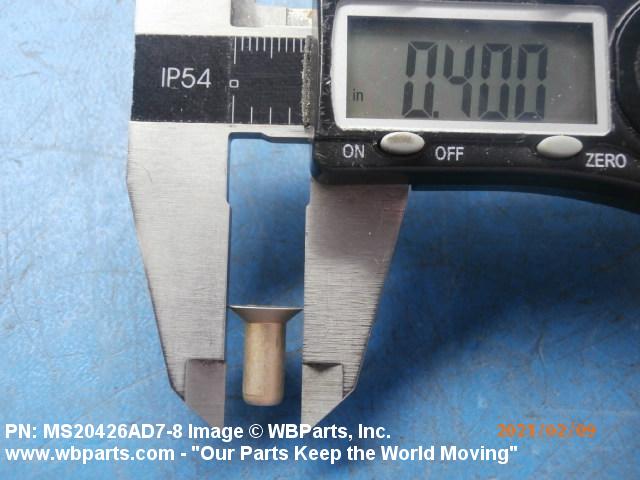

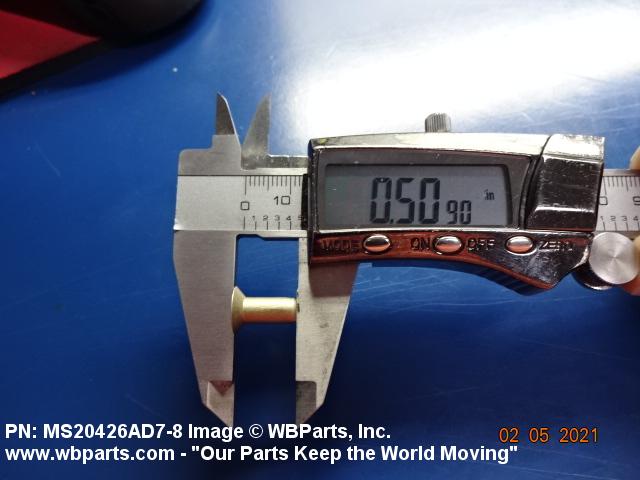

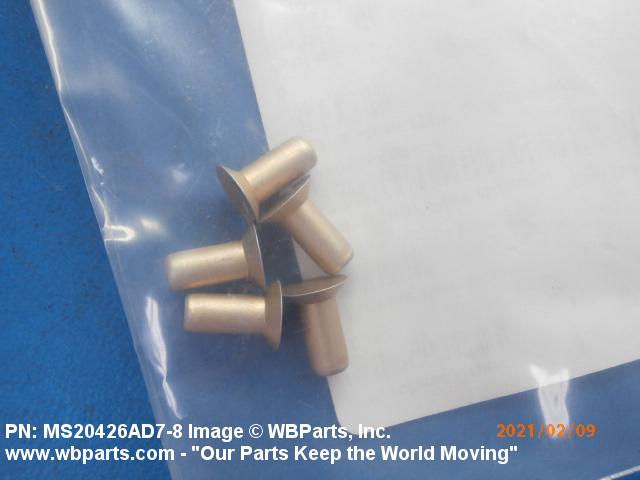

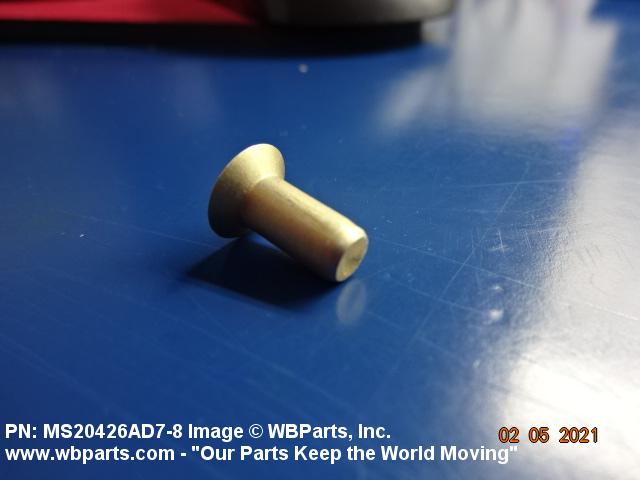

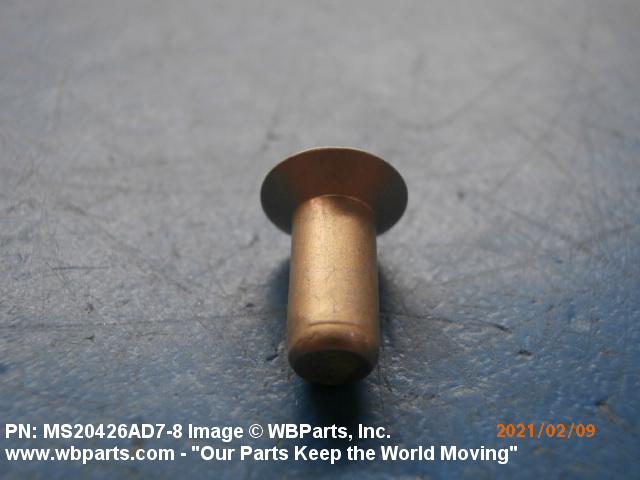

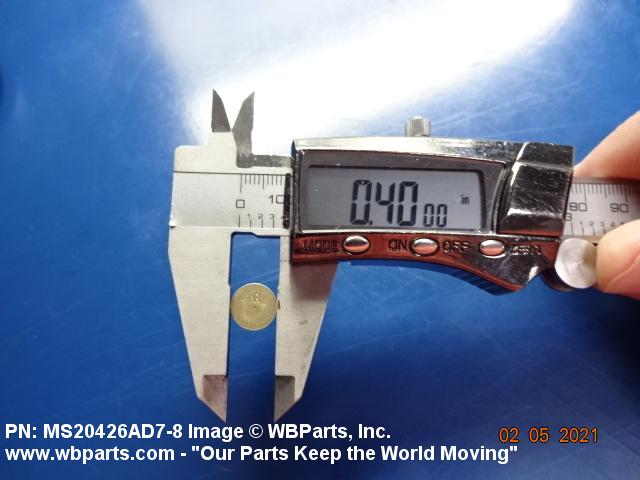

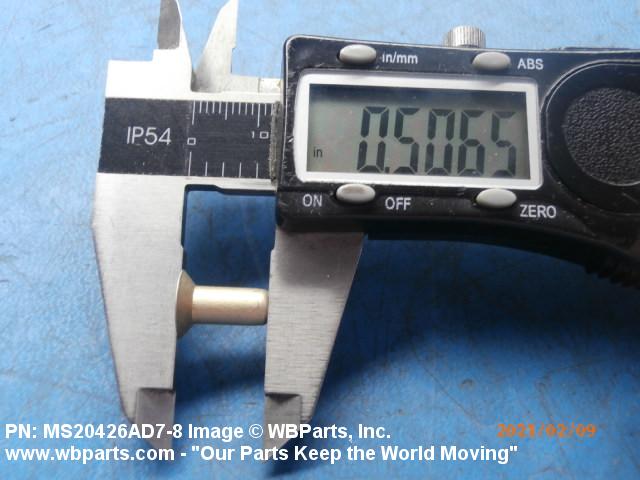

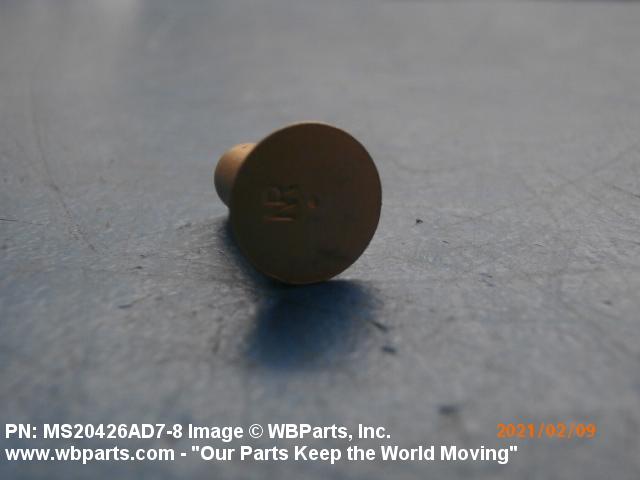

Drawings & Photos | NSN 5320-00-431-7509
Demand History | NSN 5320-00-431-7509
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20426AD78 | 2021-02-32 | 1 | United States |
| 5320-00-431-7509 | 2017-12-354 | 1 | DIBBS-RFPs |
| 5320-00-431-7509 | 2015-03-63 | 90 | DIBBS |
| 5320-00-431-7509 | 2015-02-41 | 261 | DIBBS |
| 5320-00-431-7509 | 2013-05-121 | 73 | DIBBS |
| 5320-00-431-7509 | 2012-07-207 | 19 | DIBBS |
| 5320-00-431-7509 | 2008-04-105 | 33 | DIBBS |
| 5320-00-431-7509 | 2008-02-36 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-431-7509
Related Products | NSN 5320-00-431-7509
Technical Data | NSN 5320-00-431-7509
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | T-4 SOLUTION HEAT TREATED OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.411 INCHES MINIMUM AND 0.419 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SHANK DIAMETER | 0.218 INCHES MINIMUM AND 0.222 INCHES MAXIMUM |
