NSN 5320-00-264-4279 MS20470AD515, MS20470AD5-15, GHN1000334
Product Details | SOLID RIVET
5320-00-264-4279 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20470AD515, MS20470AD5-15, GHN1000334, GHN10003-34 , 5320-00-264-4279, 00-264-4279, 5320002644279, 002644279
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-264-4279 | 00861 ( RIVET, SOLID ) |

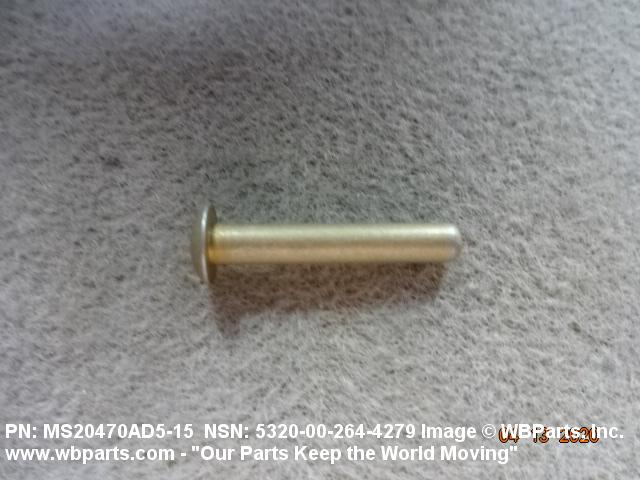

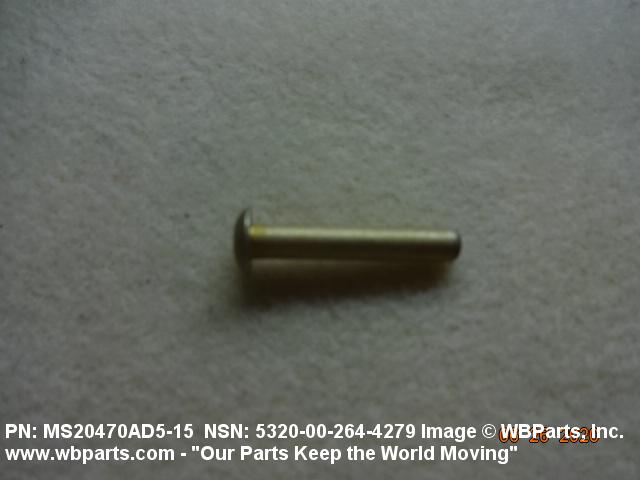

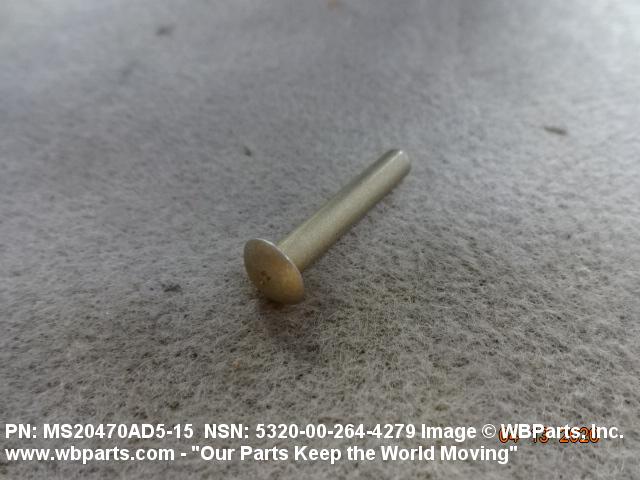

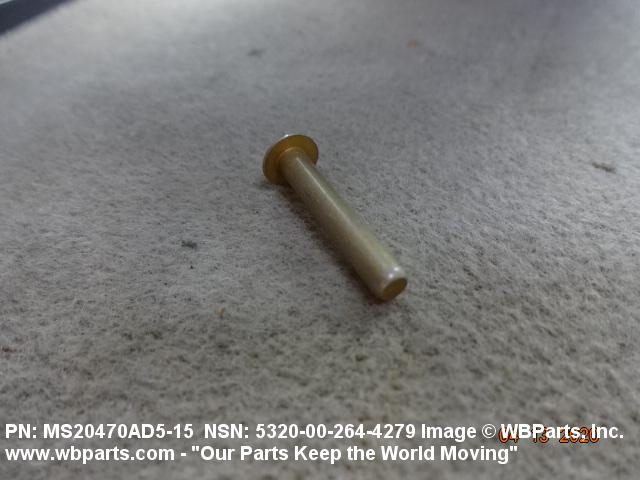

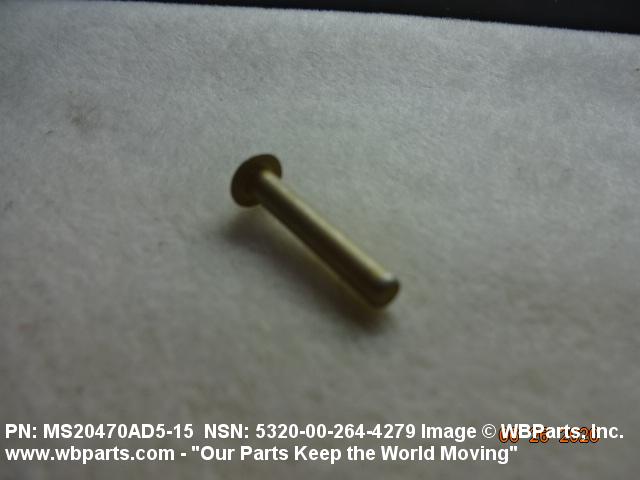

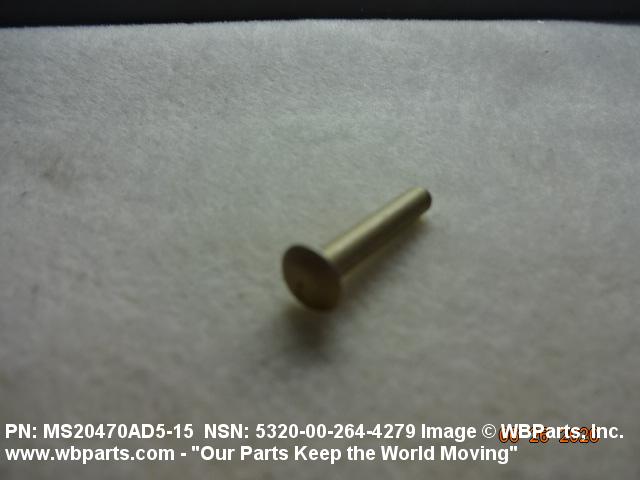

Drawings & Photos | NSN 5320-00-264-4279
Demand History | NSN 5320-00-264-4279
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20470AD515 | 2017-05-151 | 20 | United States |
| 5320-00-264-4279 | 2010-04-103 | 3 | PK |
| MS20470AD515 | 2007-10-297 | 120 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-264-4279
Technical Data | NSN 5320-00-264-4279
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-7986 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| HEAD STYLE | C28 UNIVERSAL |

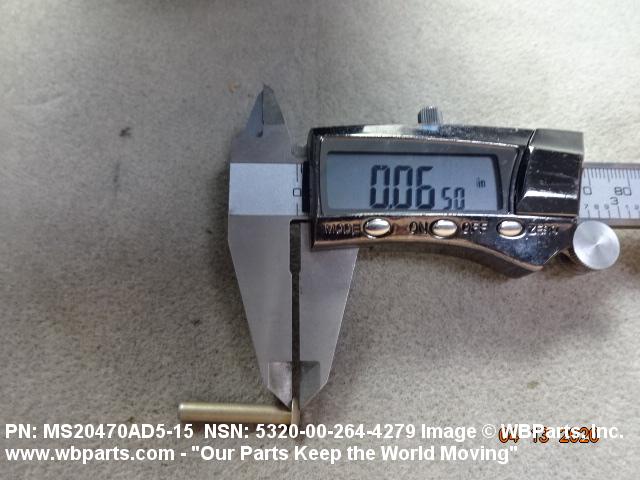

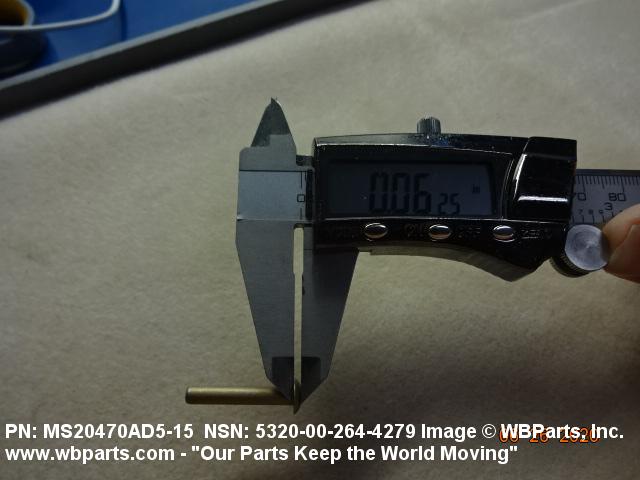

| HEAD HEIGHT | 0.067 INCHES NOMINAL |

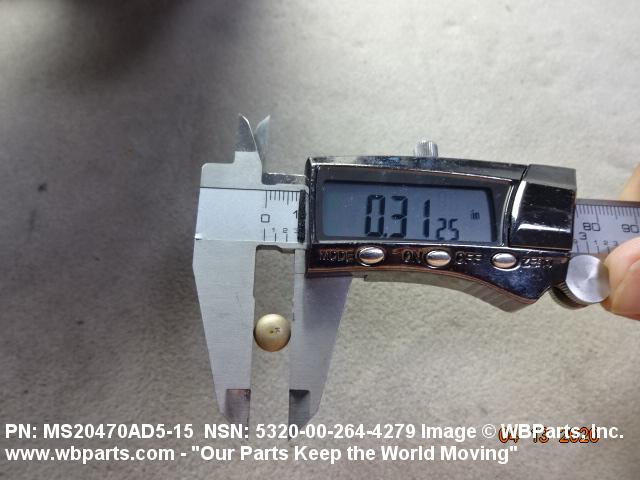

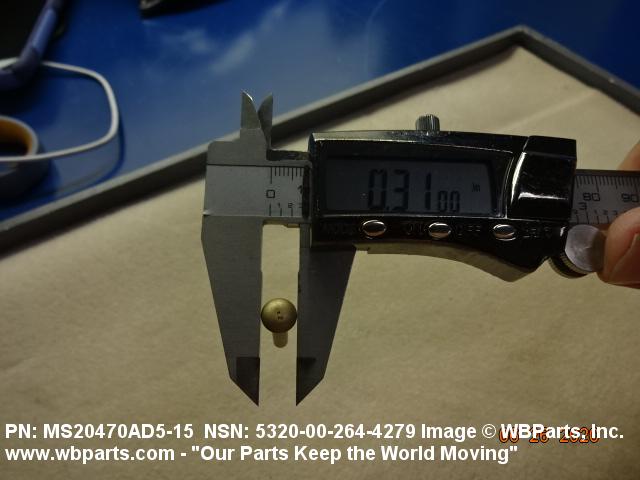

| HEAD MAJOR DIAMETER | 0.312 INCHES NOMINAL |
| SHANK STYLE | D9 STRAIGHT |

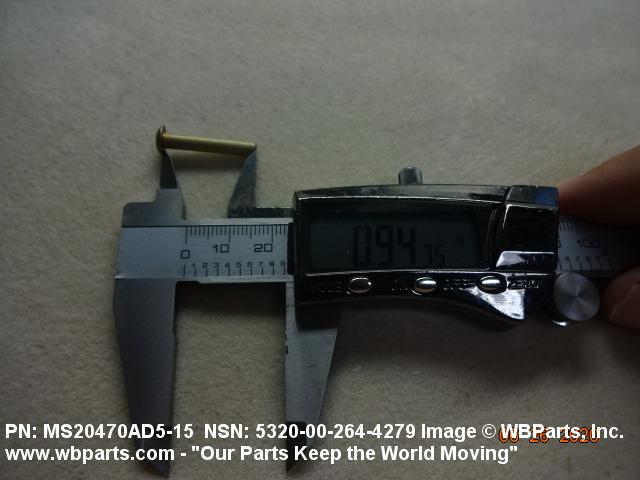

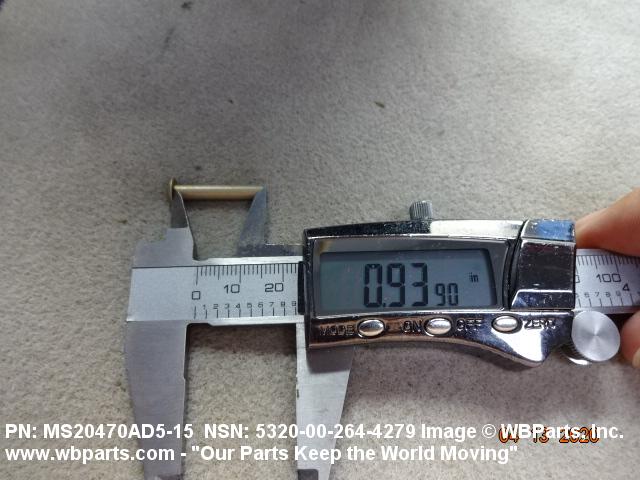

| FASTENER LENGTH | 0.938 INCHES NOMINAL |

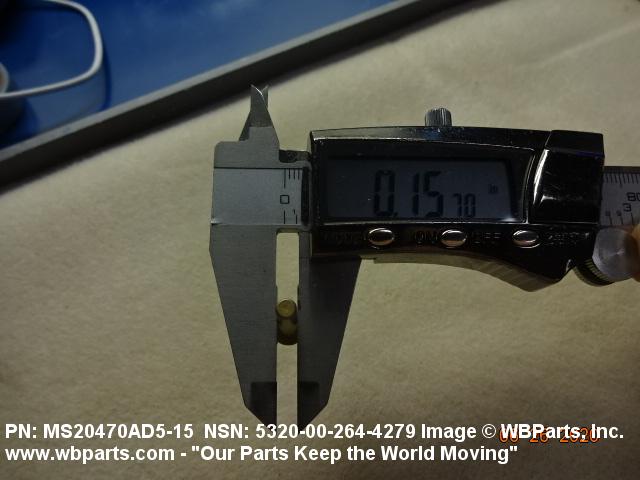

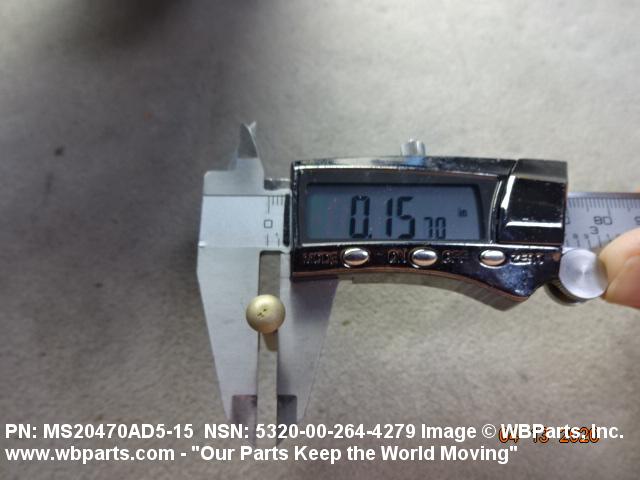

| SHANK DIAMETER | 0.156 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-00-264-4279
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
