NSN 5320-00-264-4208 NAS1097AD34, NAS1097AD3-4, R5674

Product Details | SOLID RIVET

5320-00-264-4208 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.

Part Alternates: NAS1097AD34, NAS1097AD3-4, R5674, GHN100056, GHN10005-6 , 10123567 , 5320-00-264-4208, 00-264-4208, 5320002644208, 002644208

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-264-4208	00861 ( RIVET, SOLID )

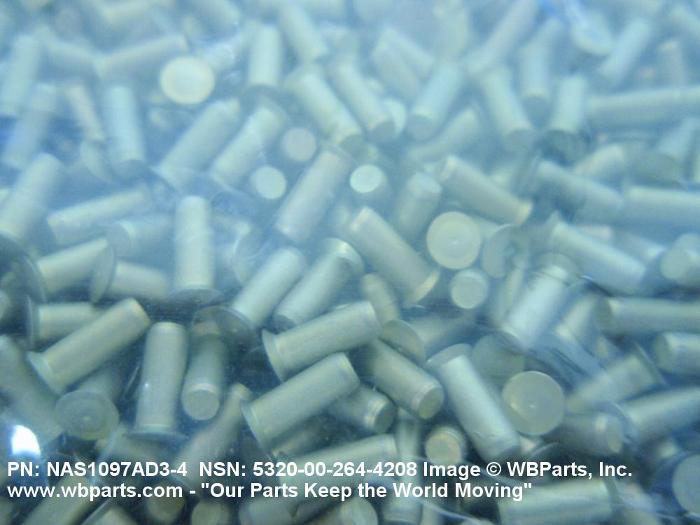

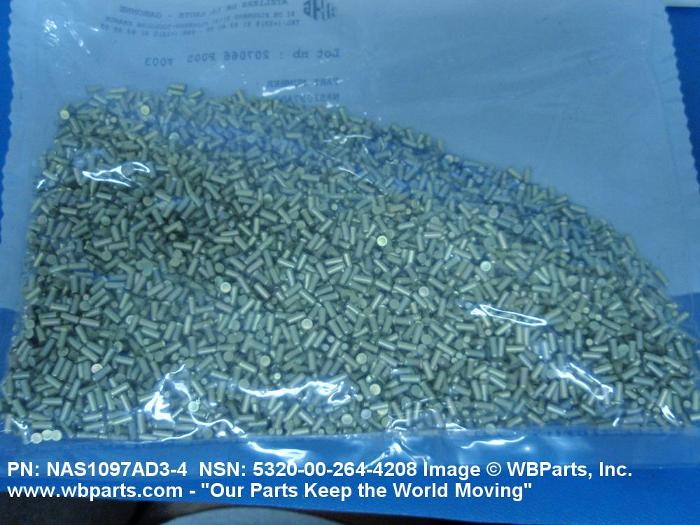

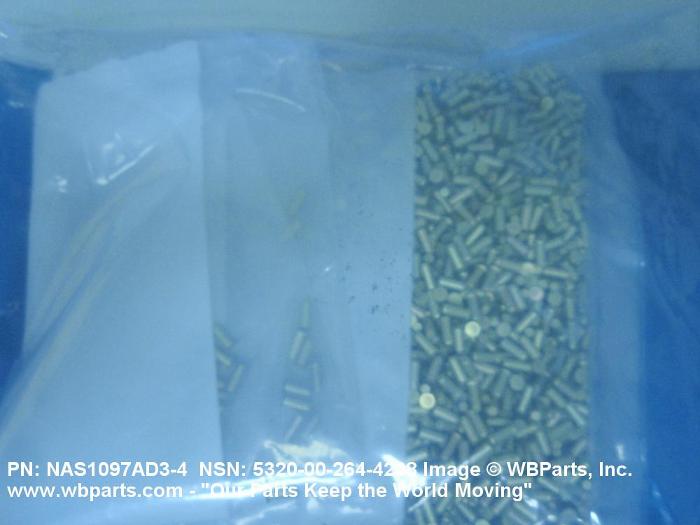

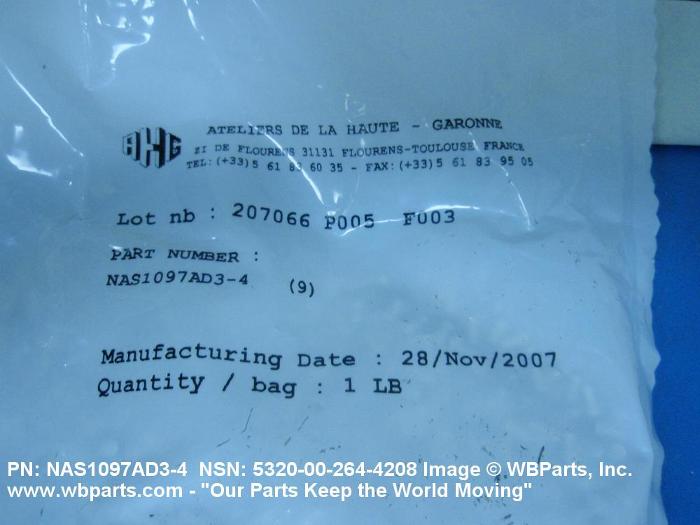

Drawings & Photos | NSN 5320-00-264-4208

Part Number	Request Date	QTY	Origin
NAS1097AD34	2024-12-358	850	United States
5320-00-264-4208	2024-12-338	2000	CA
5320-00-264-4208	2024-11-317	2000	CA
5320-00-264-4208	2024-11-311	2000	CA
5320-00-264-4208	2024-10-302	2000	CA
5320-00-264-4208	2024-10-302	2000	CA
NAS1097AD34	2024-03-67	36	United States
NAS1097AD34	2024-02-51	1500	United States
NAS1097AD34	2022-04-106	1138	Taiwan
NAS1097AD34	2022-01-28	3000	United States
NAS1097AD34	2021-09-264	42	United States
NAS1097AD34	2021-09-256	100	United States
5320-00-264-4208	2021-07-210	1478	DIBBS
NAS1097AD3-4	2021-02-53	250	BD
NAS1097AD3-4	2020-05-147	1000	US
NAS1097AD34	2019-06-157	1	US
NAS1097AD34	2016-04-97	136	US
NAS1097AD3-4	2015-08-217	18	United States
NAS1097AD34	2015-04-120	1	CA
NAS1097AD34	2014-12-356	50	United States
NAS1097AD3-4	2014-11-317	1680	United States
NAS1097AD3-4	2014-04-91	900	Canada
NAS1097AD34	2014-02-38	32	US
NAS1097AD34	2013-11-315	6048	Israel
NAS1097AD34	2013-03-66	220	United States
NAS1097AD34	2012-10-277	1000	us
NAS1097AD34	2012-08-234	1	US
5320-00-264-4208	2011-10-304	30	US
NAS1097AD34	2011-09-255	150	US
5320-00-264-4208	2011-04-112	24	United States
5320-00-264-4208	2011-04-112	24	United States
5320-00-264-4208	2011-04-97	100	US
NAS1097AD34	2010-08-238	12	US
5320-00-264-4208	2010-06-155	8	United States
NAS1097AD34	2010-04-111	8	us
NAS1097AD34	2010-02-35	1900	United States
5320-00-264-4208	2009-09-267	37	United States
5320-00-264-4208	2009-09-246	2700	DIBBS
5320-00-264-4208	2009-08-229	400	US
NAS1097AD34	2009-08-223	600	Spain
5320-00-264-4208	2009-04-105	250	DIBBS
5320-00-264-4208	2009-03-61	1	India
5320-00-264-4208	2009-02-43	1000	US
5320-00-264-4208	2009-01-12	66	DIBBS
5320-00-264-4208	2008-08-238	925	DIBBS
5320-00-264-4208	2008-08-219	3000	United States
5320-00-264-4208	2008-05-127	345	DIBBS
5320-00-264-4208	2006-10-303	220	US
NAS1097AD34	2006-04-96	1	US

Cross Reference | NSN 5320-00-264-4208

Part Number	Cage Code	Manufacturer
NAS1097AD3-4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
R5674	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-264-4208

Compare

Related Products | NSN 5320-00-264-4208

5320-00-264-4216, 5320-00-264-4232, 5320-00-264-4233, 5320-00-264-4234, 5320-00-264-4236

Technical Data | NSN 5320-00-264-4208

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 2117 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	OXIDE FILM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C13 UNDERSIZED OVAL COUNTERSUNK
HEAD HEIGHT	0.003 INCHES MINIMUM AND 0.005 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.126 INCHES MINIMUM AND 0.148 INCHES MAXIMUM
HEAD MINOR DIAMETER	0.086 INCHES MINIMUM AND 0.096 INCHES MAXIMUM
COUNTERSINK HEIGHT	0.021 INCHES NOMINAL
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
SHANK STYLE	D9 STRAIGHT
FASTENER LENGTH	0.250 INCHES NOMINAL
SHANK DIAMETER	0.094 INCHES NOMINAL
GRIP LENGTH	ANY ACCEPTABLE
SPECIFICATION/STANDARD DATA	80205-NAS1097 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	R5674

Restrictions/Controls & Freight Information | NSN 5320-00-264-4208

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-264-4208

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 LB : Pounds
