NSN 5320-00-204-5440 AF517232, AF5172-3-2, CCR244SS3

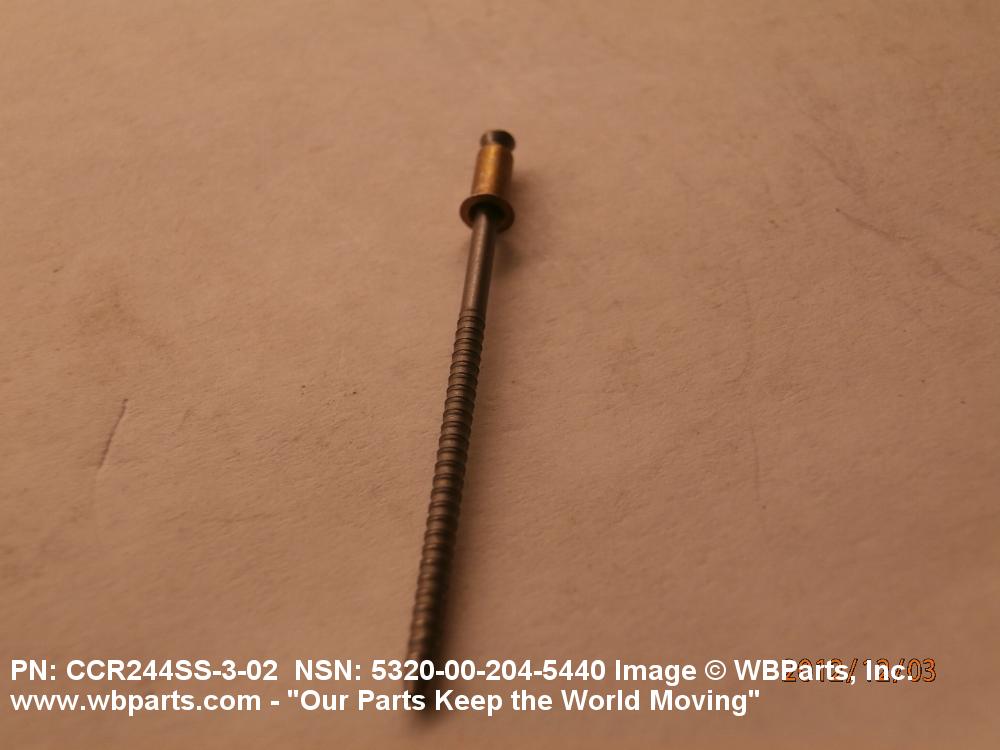

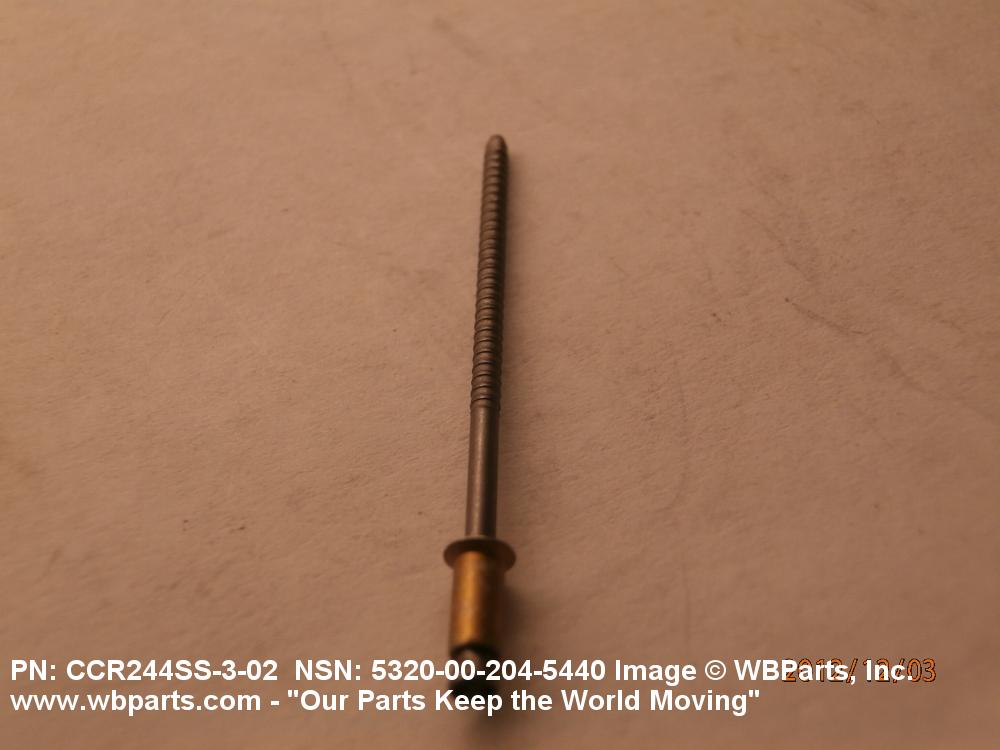

Product Details | BLIND RIVET

5320-00-204-5440 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: AF517232, AF5172-3-2, CCR244SS3, CCR244SS-3, CCR244SS302, CCR244SS-3-02, CCR244SS32, CCR244SS-3-2, 5320-00-204-5440, 00-204-5440, 5320002045440, 002045440

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	31 MAR 1973	00-204-5440	00864 ( RIVET, BLIND )

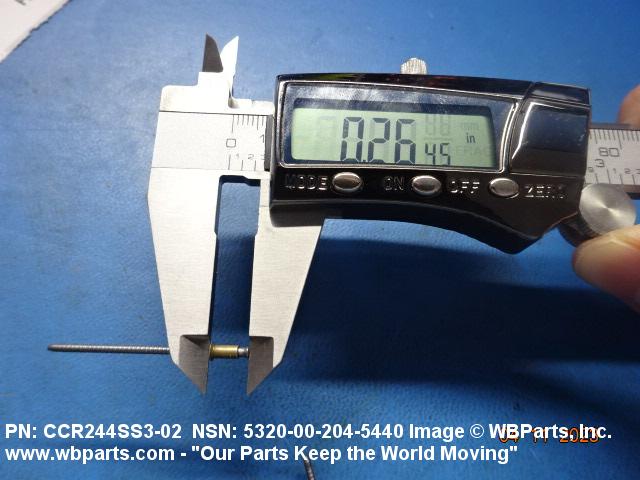

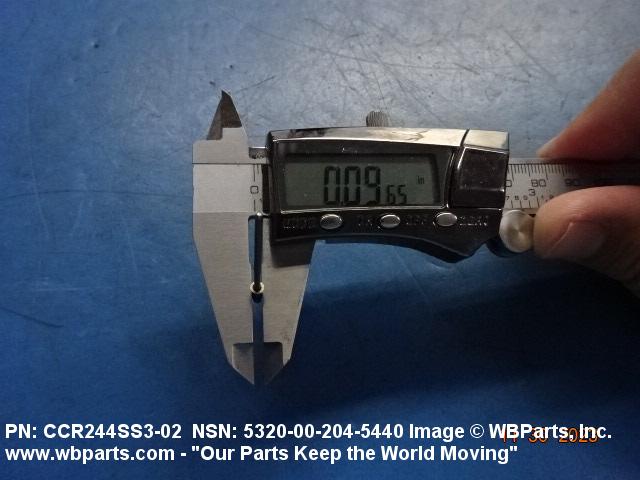

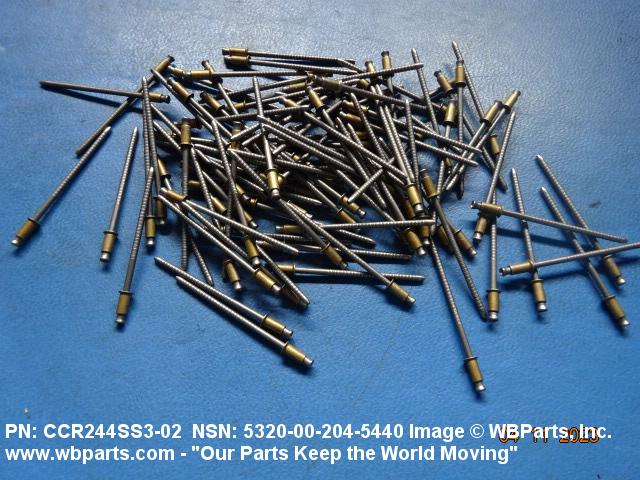

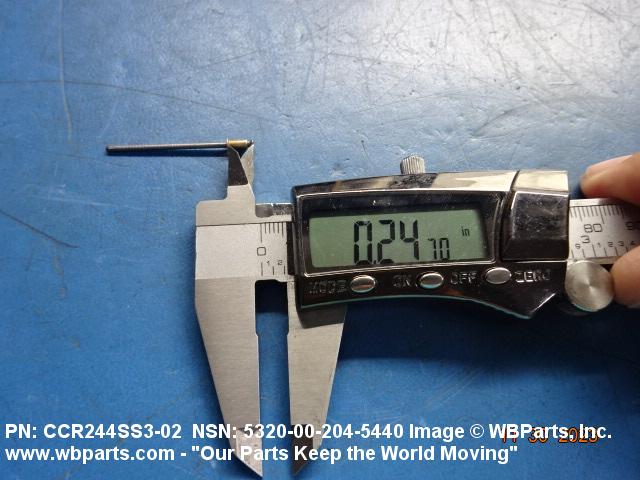

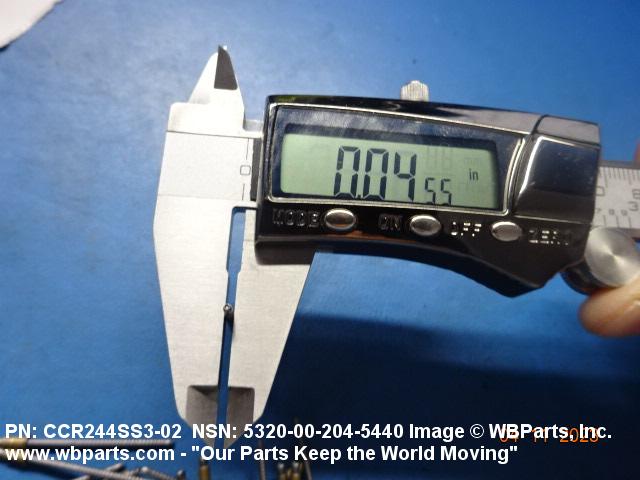

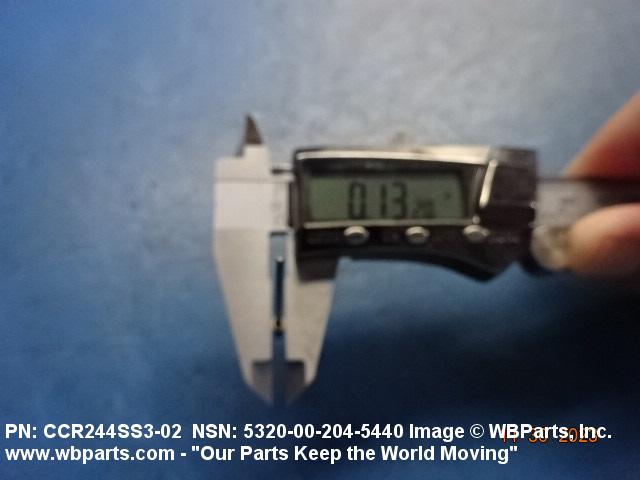

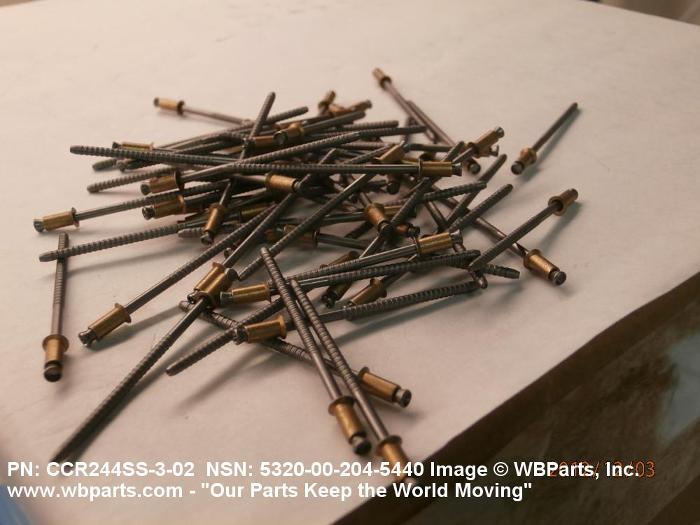

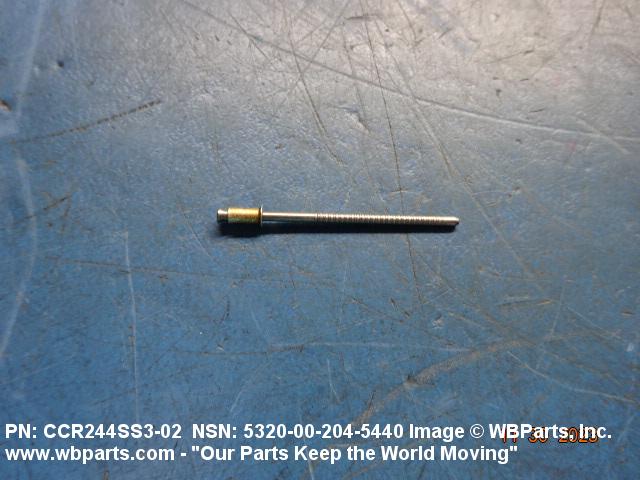

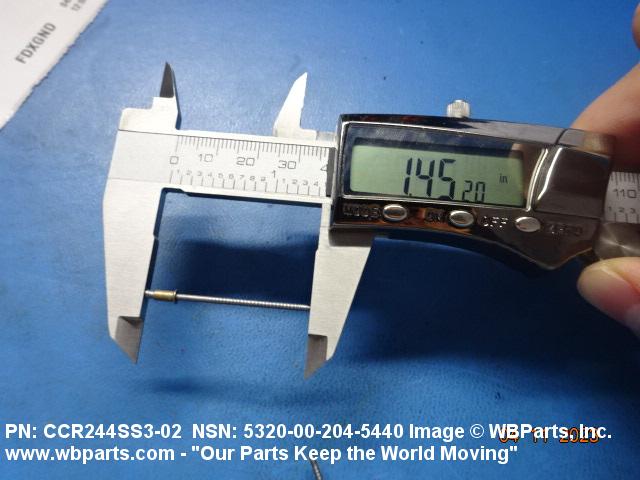

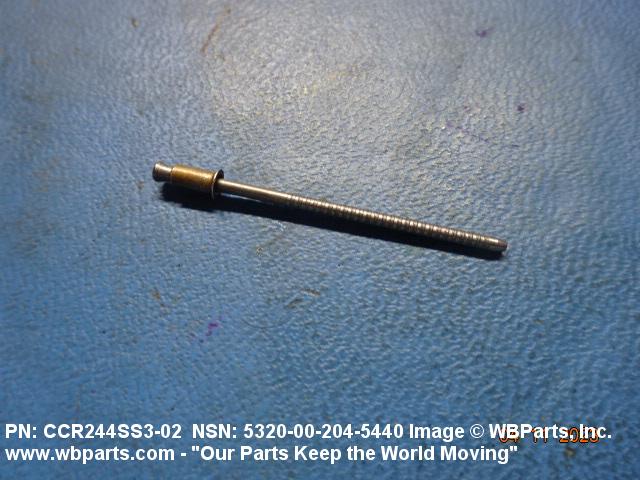

Drawings & Photos | NSN 5320-00-204-5440

Part Number	Request Date	QTY	Origin
CCR244SS302	2025-03-78	100	UK
CCR244SS302	2024-12-365	200	United States
CCR244SS302	2024-10-288	500	AE
CCR244SS32	2024-09-268	1000	United States
5320-00-204-5440	2024-09-262	1000	TR
CCR244SS302	2024-08-235	15	US
CCR244SS302	2024-06-169	100	China
CCR244SS32	2023-08-243	2500	United States
CCR244SS32	2023-08-241	2500	United States
CCR244SS32	2023-08-220	2500	United States
AF5172-3-2	2023-06-180	16358	DIBBS
CCR244SS-3-02	2023-06-180	16358	DIBBS
CCR244SS-3-2	2023-06-180	16358	DIBBS
HS5612	2023-06-180	16358	DIBBS
HS5612-3A2	2023-06-180	16358	DIBBS
AF5172-3-2	2023-06-172	16358	DIBBS
CCR244SS-3-02	2023-06-172	16358	DIBBS
CCR244SS-3-2	2023-06-172	16358	DIBBS
HS5612	2023-06-172	16358	DIBBS
HS5612-3A2	2023-06-172	16358	DIBBS
CCR244SS302	2022-12-347	70	United States
AF5172-3-2	2021-12-341	12580	DIBBS
CCR244SS-3-02	2021-12-341	12580	DIBBS
CCR244SS-3-2	2021-12-341	12580	DIBBS
HS5612	2021-12-341	12580	DIBBS
HS5612-3A2	2021-12-341	12580	DIBBS
AF5172-3-2	2020-12-352	11729	DIBBS
CCR244SS-3-02	2020-12-352	11729	DIBBS
CCR244SS-3-2	2020-12-352	11729	DIBBS
HS5612-3A2	2020-12-352	11729	DIBBS
5320-00-204-5440	2017-09-270	18188	DIBBS
5320-00-204-5440	2016-12-353	16610	DIBBS
5320-00-204-5440	2016-06-175	8458	DIBBS
5320-00-204-5440	2013-09-252	50	United States
CCR244SS302	2013-04-92	1000	United States
5320-00-204-5440	2012-11-318	1000	United States
5320-00-204-5440	2012-10-283	2500	United States
5320-00-204-5440	2012-10-278	2500	United States
CCR244SS32	2012-08-220	4000	United States
CCR244SS302	2011-07-207	2	MX
CCR244SS302	2011-03-76	1200	US
CCR244SS302	2011-03-76	1200	US
5320-00-204-5440	2010-01-06	38239	DIBBS
CCR244SS32	2009-11-320	1500	China
5320-00-204-5440	2009-10-288	6937	DIBBS
CCR244SS32	2009-08-219	1000	Brazil
CCR244SS302	2008-07-213	5	US
5320-00-204-5440	2008-07-184	10000	US

Cross Reference | NSN 5320-00-204-5440

Part Number	Cage Code	Manufacturer
AF5172-3-2	53551	ALLFAST FASTENING SYSTEMS, LLC
CCR244SS-3	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CCR244SS-3-02	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CCR244SS-3-2	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-204-5440

Compare

Related Products | NSN 5320-00-204-5440

5320-00-204-5465, 5320-00-204-5468, 5320-00-204-5472, 5320-00-205-0470, 5320-00-205-0738

Technical Data | NSN 5320-00-204-5440

Characteristic	Specifications
MATERIAL	STEEL COMP 1012 SLEEVE STEEL COMP 1012 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES SLEEVE 66 FED STD ALL MATERIAL RESPONSES STEM
SURFACE TREATMENT	CADMIUM AND CHROMATE SLEEVE CADMIUM AND CHROMATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE STEM
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.140 INCHES MINIMUM AND 0.148 INCHES MAXIMUM
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL

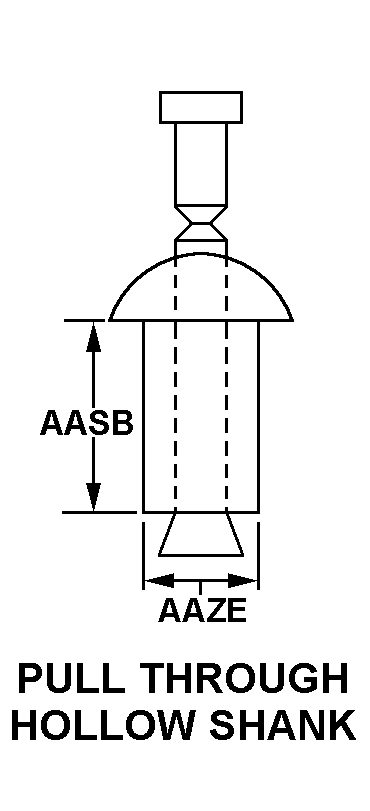

SHANK STYLE	D19 PULL THROUGH HOLLOW SHANK
