NSN 5320-00-170-3043 MS20470T45, MS20470T4-5, NASM20470
Product Details | SOLID RIVET

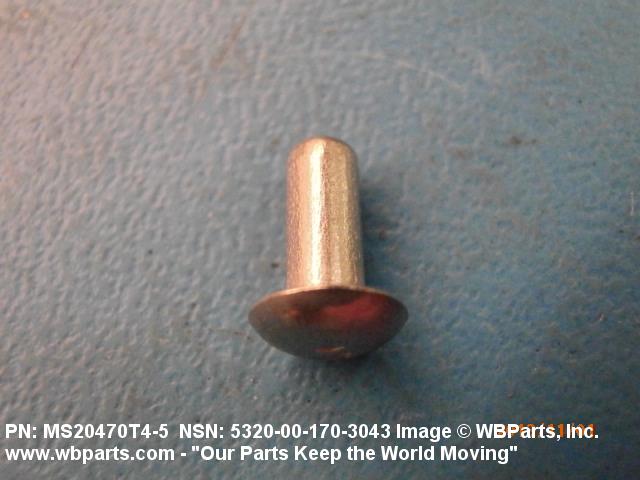

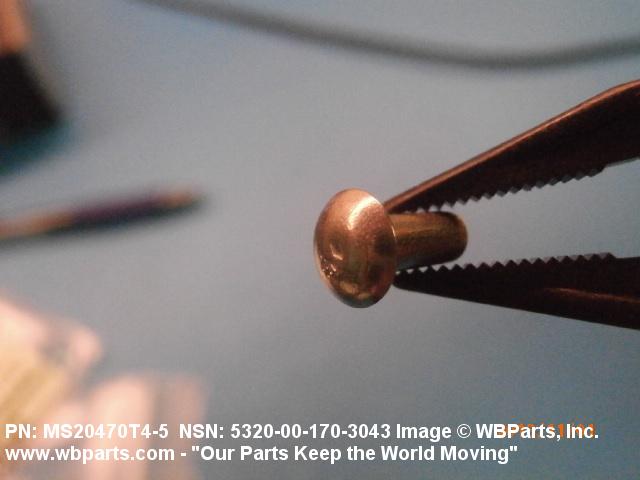

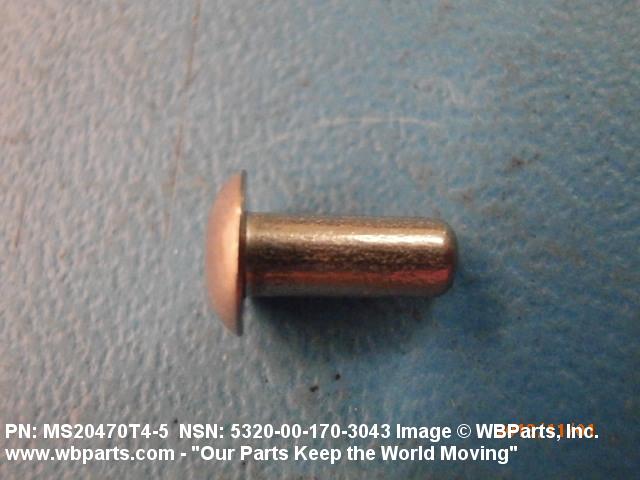

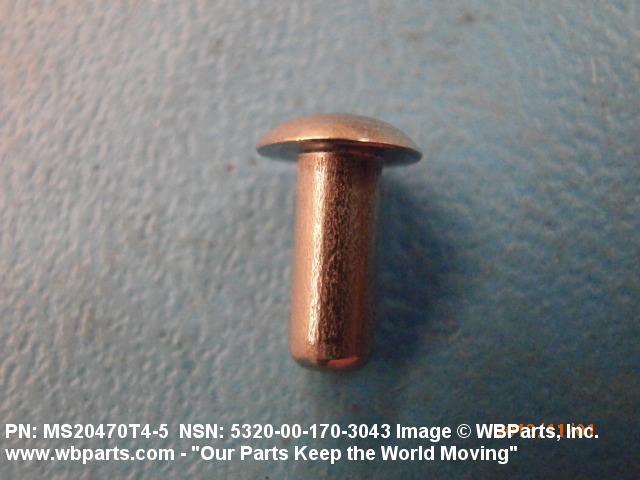

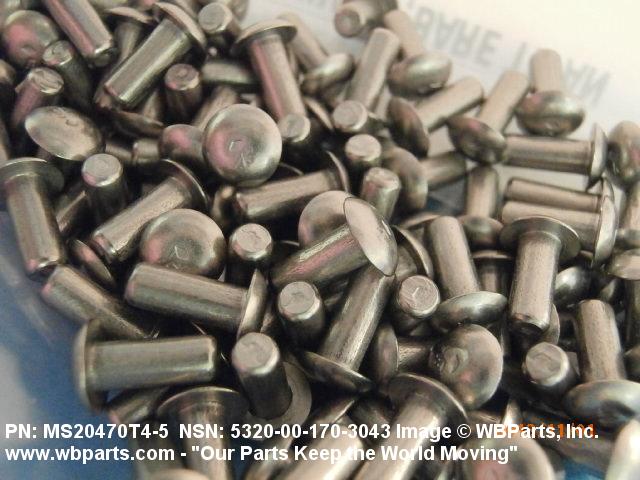

5320-00-170-3043 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20470T45, MS20470T4-5, NASM20470, AF271T45, AF271T-4-5, AIC50845, AIC508-4-5, ARM3005T45, ARM3005T4-5, CSR903B45, CSR903B-4-5, SCR2945, SC-R29-4-5, ST3M67645, ST3M676-4-5, 03A09245, 03A092-4-5, 10123516 , 71R20745, 71R207-4-5, 5320-00-170-3043, 00-170-3043, 5320001703043, 001703043
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 FEB 1973 | 00-170-3043 | 00861 ( RIVET, SOLID ) |

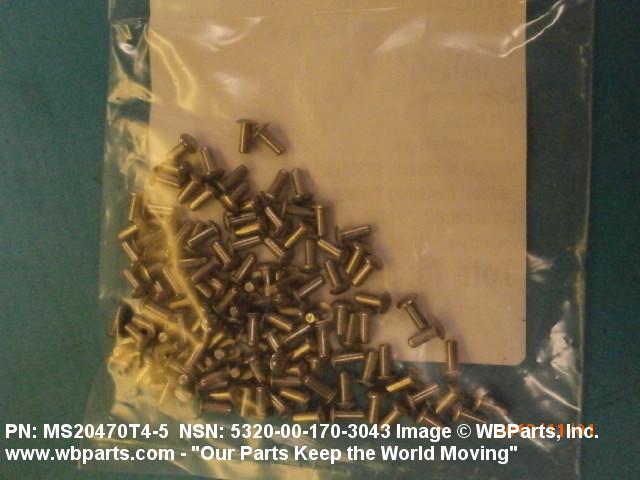

Drawings & Photos | NSN 5320-00-170-3043
Demand History | NSN 5320-00-170-3043
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20470T45 | 2024-11-318 | 20 | us |
| MS20470T45 | 2024-08-221 | 20 | US |
| 5320-00-170-3043 | 2018-12-360 | 13203 | DIBBS |
| 5320-00-170-3043 | 2013-10-291 | 100 | United States |
| CSR903B45 | 2013-04-114 | 50 | United States |
| NASM20470 | 2010-12-344 | 120 | US |
| NASM20470 | 2010-11-308 | 2100 | US |
| 71R20745 | 2010-07-200 | 100 | CN |
| 5320-00-170-3043 | 2009-09-252 | 150 | US |
| NASM20470 | 2008-08-217 | 14 | United States |
Cross Reference | NSN 5320-00-170-3043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A092-4-5 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 71R207-4-5 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| AF271T-4-5 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AIC508-4-5 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| ARM3005T4-5 | 64728 | AEROSPACE RIVET MFRS CORP |
| CSR903B-4-5 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| MS20470T4-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20470T4-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NASM20470 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SC-R29-4-5 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| ST3M676-4-5 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-170-3043
Related Products | NSN 5320-00-170-3043
Technical Data | NSN 5320-00-170-3043
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | M172,FSCM 11815 MFR REF SINGLE MATERIAL RESPONSE OVERALL |
| HEAT TREATMENT | ANNEALED OVERALL |
| SHEAR STRENGTH | 50000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |

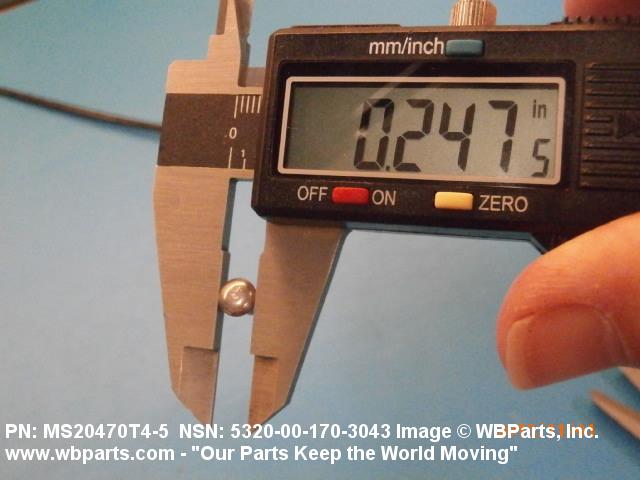

| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |

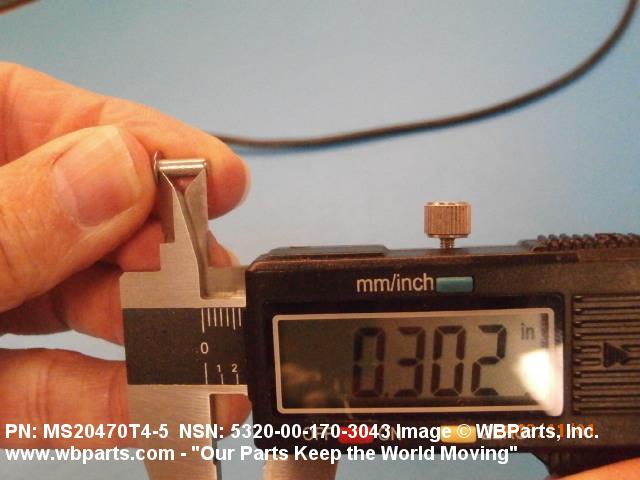

| FASTENER LENGTH | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

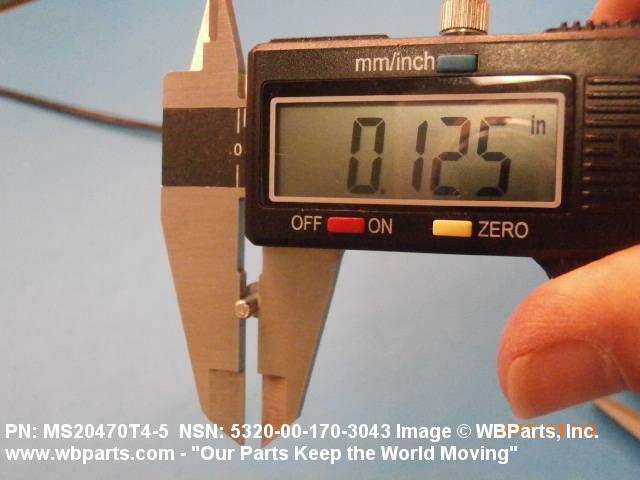

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
