NSN 5320-00-119-5548 AF461510, AF461-5-10, BACR15AP5123
Product Details | BLIND RIVET
5320-00-119-5548 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: AF461510, AF461-5-10, BACR15AP5123, BACR15AP5-123, CKLP5D, CKLXP5D, P5D, XP5D, 5320-00-119-5548, 00-119-5548, 5320001195548, 001195548
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-119-5548 | 00864 ( RIVET, BLIND ) |

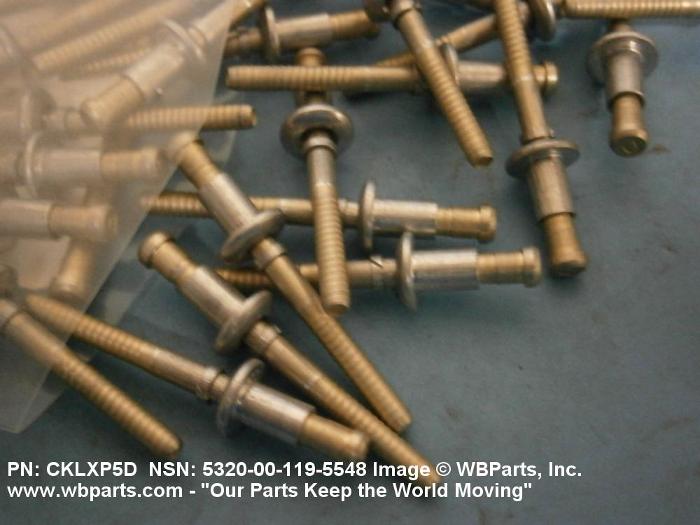

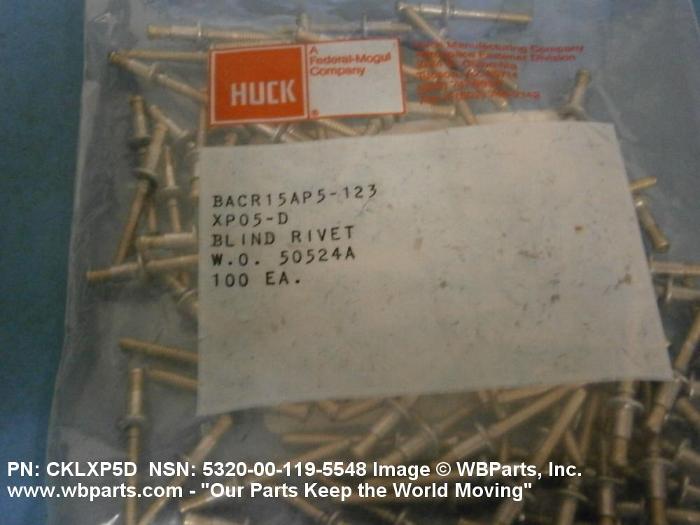

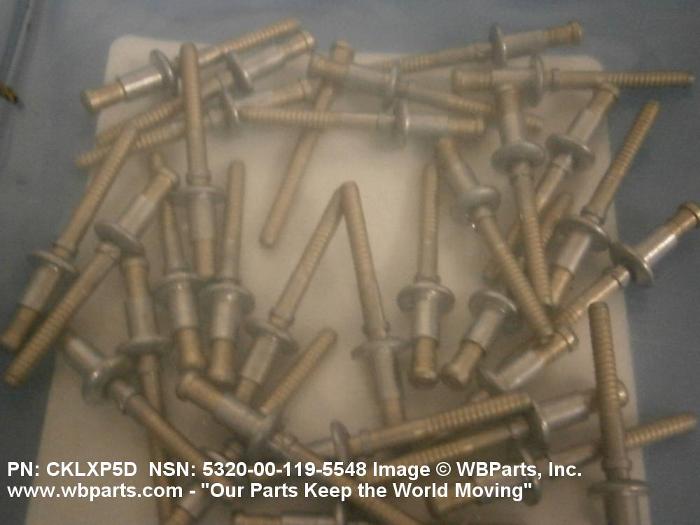

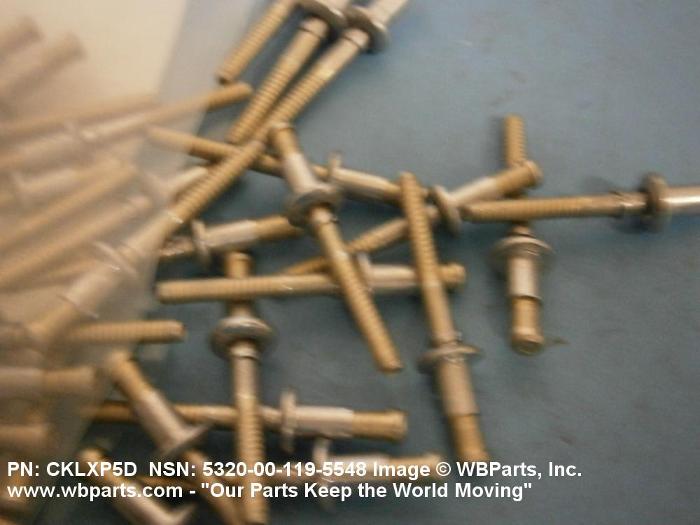

Drawings & Photos | NSN 5320-00-119-5548
Demand History | NSN 5320-00-119-5548
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-119-5548 | 2017-11-305 | 15 | United States |
| BACR15AP5123 | 2011-10-276 | 250 | United States |
| XP5D | 2007-10-304 | 400 | US |
Cross Reference | NSN 5320-00-119-5548
