NSN 5320-00-118-2065 MS20427M56, MS20427M5-6, 00-118-2065
Product Details | SOLID RIVET
5320-00-118-2065 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20427M56, MS20427M5-6, 5320-00-118-2065, 00-118-2065, 5320001182065, 001182065
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-118-2065 | 00861 ( RIVET, SOLID ) |

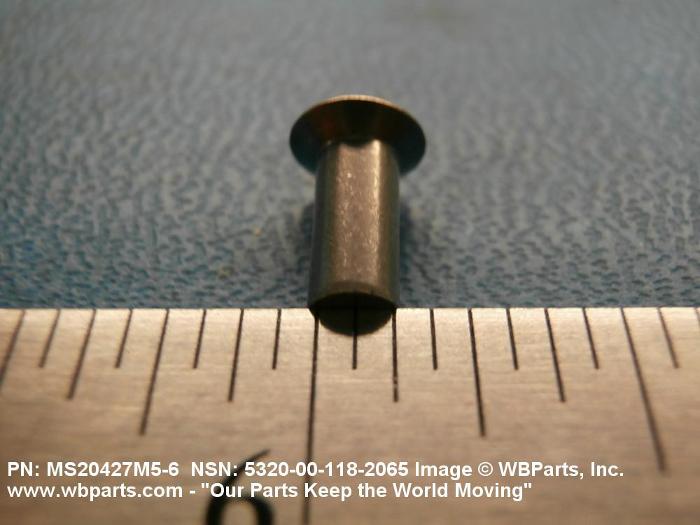

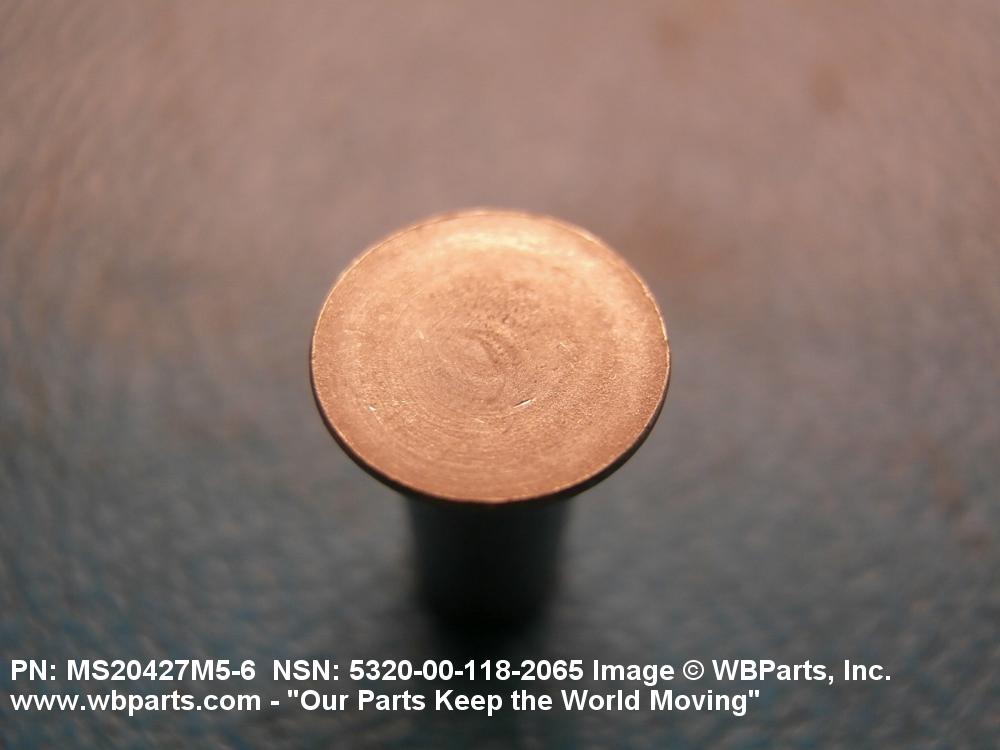

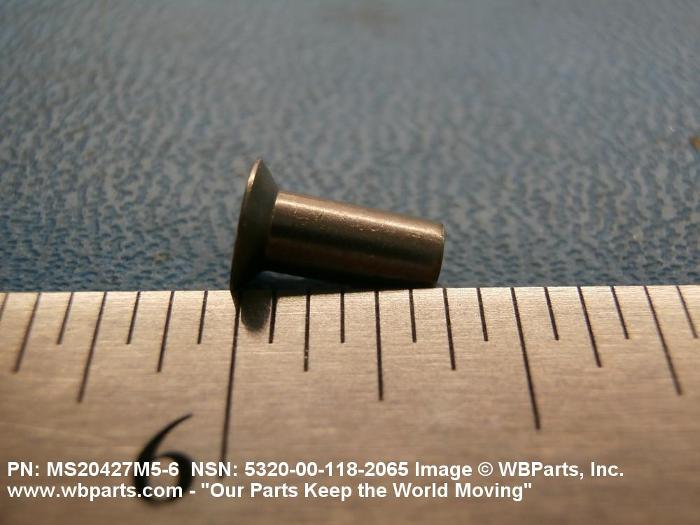

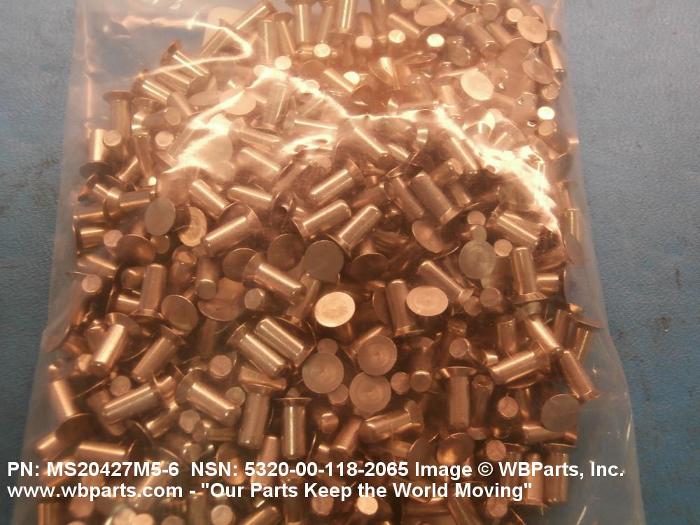

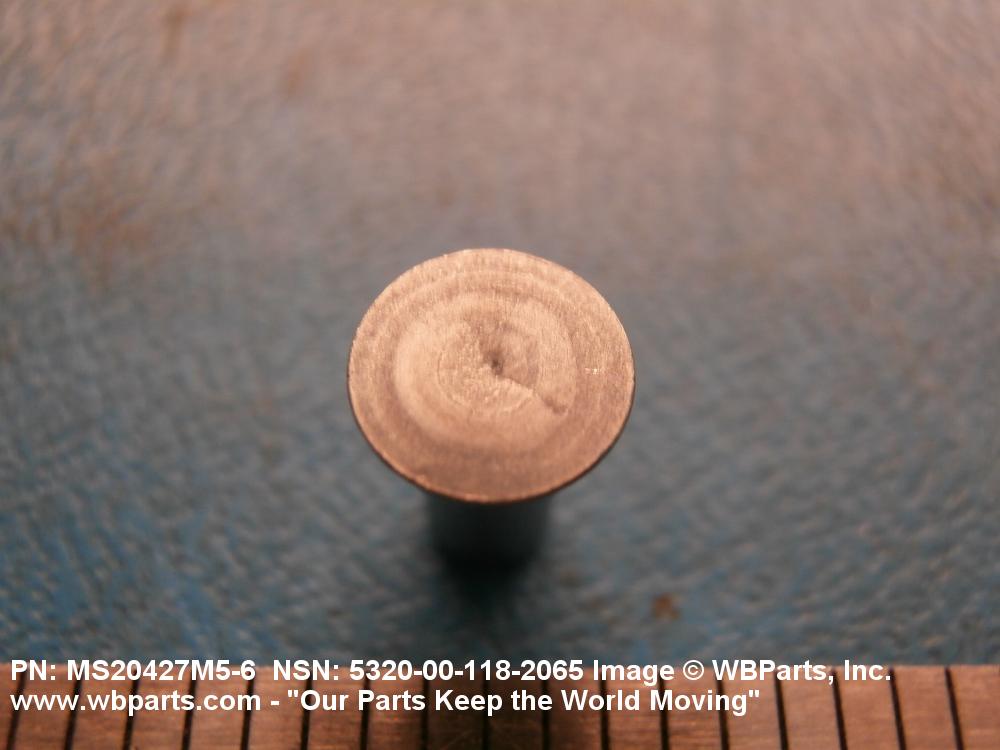

Drawings & Photos | NSN 5320-00-118-2065
Demand History | NSN 5320-00-118-2065
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20427M56 | 2019-03-80 | 1 | US |
| 5320-00-118-2065 | 2018-01-01 | 256 | DIBBS |
| 5320-00-118-2065 | 2017-12-354 | 1 | DIBBS-RFPs |
| 5320-00-118-2065 | 2017-09-271 | 159 | DIBBS |
| 5320-00-118-2065 | 2016-09-262 | 44 | DIBBS |
| 5320-00-118-2065 | 2016-07-213 | 303 | DIBBS |
| 5320-00-118-2065 | 2016-05-145 | 313 | DIBBS |
| 5320-00-118-2065 | 2016-03-76 | 239 | DIBBS |
| 5320-00-118-2065 | 2016-02-40 | 186 | DIBBS |
| MS20427M56 | 2013-02-42 | 50 | United States |
| MS20427M56 | 2013-01-10 | 200 | United States |
| MS20427M56 | 2011-07-203 | 80 | UK |
| 5320-00-118-2065 | 2009-07-201 | 222 | DIBBS |
| MS20427M56 | 2008-07-185 | 10 | Brazil |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-118-2065
Related Products | NSN 5320-00-118-2065
Technical Data | NSN 5320-00-118-2065
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OR NICKEL ALLOY R-405 OVERALL |
| SHEAR STRENGTH | 49000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.257 INCHES MINIMUM AND 0.298 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| GRIP LENGTH | 0.141 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-00-118-2065
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
