NSN 5320-00-117-6886 MS20426AD520, MS20426AD5-20 , MS20426AD59

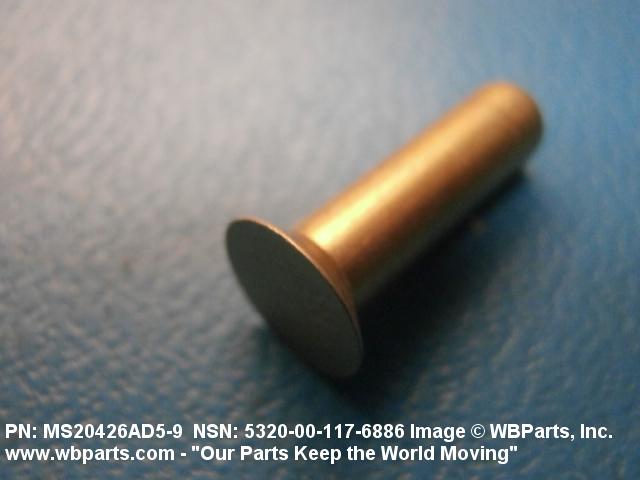

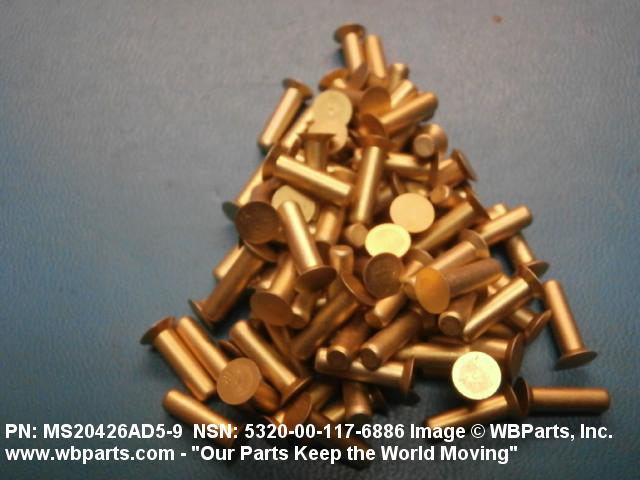

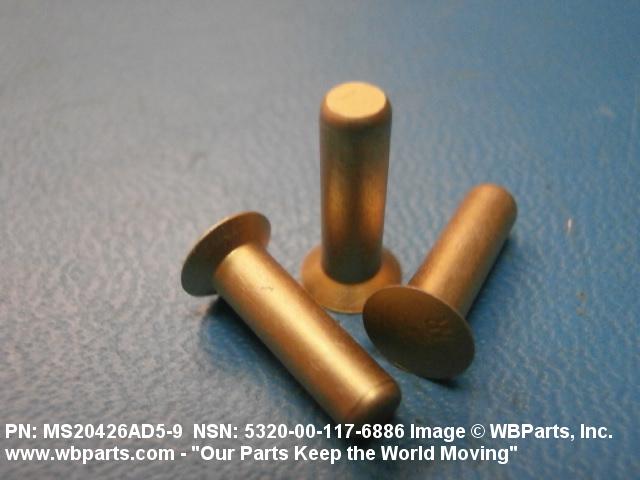

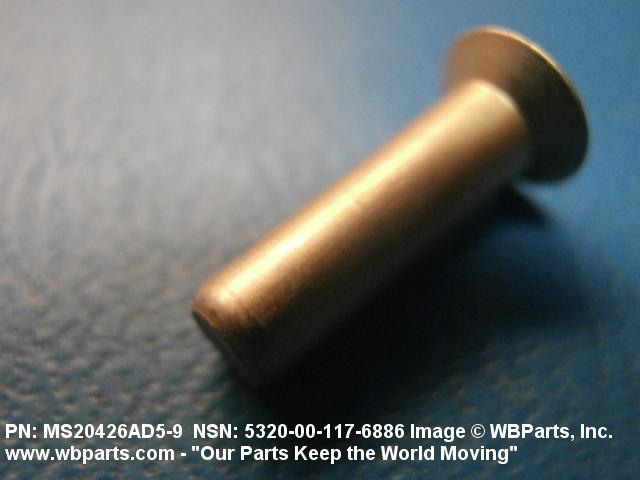

Product Details | SOLID RIVET
5320-00-117-6886 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: MS20426AD520, MS20426AD5-20 , MS20426AD59, MS20426AD5-9, AN426AD59, AN426AD5-9, 0600339, 0600-339, 5320-00-117-6886, 00-117-6886, 5320001176886, 001176886
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-117-6886 | 00861 ( RIVET, SOLID ) |
Drawings & Photos | NSN 5320-00-117-6886
Demand History | NSN 5320-00-117-6886
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-117-6886 | 2023-06-172 | 8 | DIBBS |
| 5320-00-117-6886 | 2023-05-141 | 8 | DIBBS |
| MS20426AD59 | 2022-10-279 | 100 | Malaysia |
| MS20426AD59 | 2021-09-257 | 100 | United States |
| MS20426AD5-9 | 2020-06-174 | 320 | Hong Kong |
| MS20426AD5-20 | 2020-05-147 | 1000 | US |
| MS20426AD5-9 | 2020-05-147 | 1000 | US |
| MS20426AD59 | 2019-09-269 | 400 | United States |
| MS20426AD59 | 2019-09-262 | 400 | United States |
| MS20426AD59 | 2019-06-164 | 1 | United States |
| MS20426AD59 | 2019-06-164 | 2 | United States |
| MS20426AD59 | 2019-06-164 | 6 | United States |
| MS20426AD59 | 2019-06-164 | 10 | United States |
| MS20426AD59 | 2019-06-164 | 20 | United States |
| MS20426AD59 | 2019-06-164 | 40 | United States |
| 5320-00-117-6886 | 2019-05-125 | 390 | DIBBS |
| 5320-00-117-6886 | 2018-05-148 | 126 | DIBBS |
| MS20426AD59 | 2017-10-298 | 1400 | Malaysia |
| 5320-00-117-6886 | 2014-02-49 | 15 | MY |
| 5320-00-117-6886 | 2008-09-259 | 1000 | Malaysia |
| 5320-00-117-6886 | 2007-09-270 | 6000 | Mexico |
Cross Reference | NSN 5320-00-117-6886
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0600-339 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 0600-339 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| AN426AD5-9 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS20426AD5-9 | 64728 | AEROSPACE RIVET MFRS CORP |
| MS20426AD5-9 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20426AD5-9 | 8J942 | RAPID RIVET AND FASTENER CORPORATION |
| MS20426AD5-9 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-117-6886
Related Products | NSN 5320-00-117-6886
Technical Data | NSN 5320-00-117-6886
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OR OXIDE FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 26000 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.282 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.5 DEGREES MINIMUM AND 100.5 DEGREES MAXIMUM |
| SHANK STYLE | D10 STRAIGHT WITH RADIUS CHAMFERED TIP |

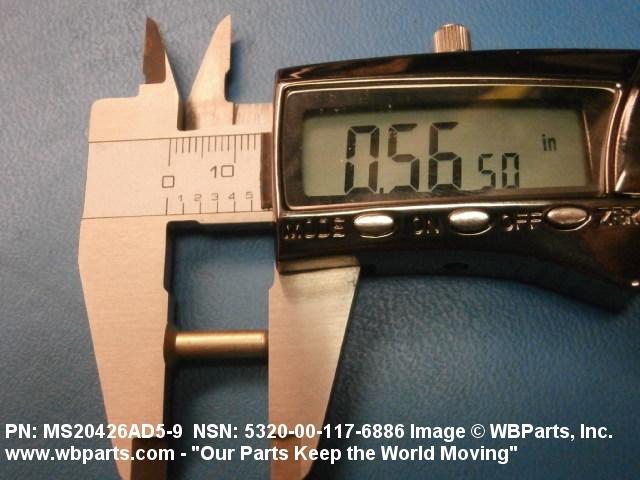

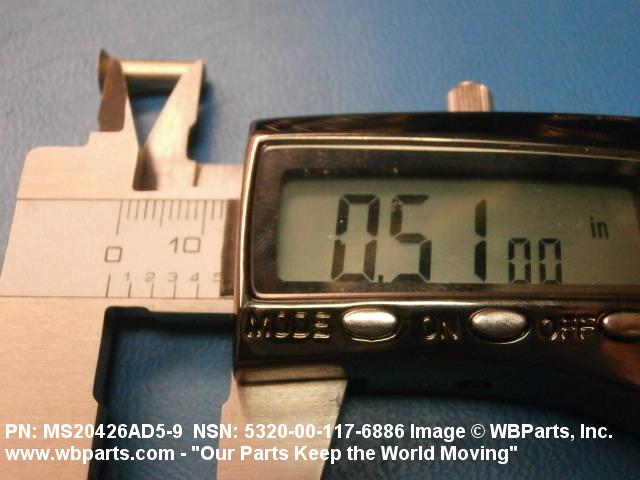

| FASTENER LENGTH | 0.552 INCHES MINIMUM AND 0.572 INCHES MAXIMUM |

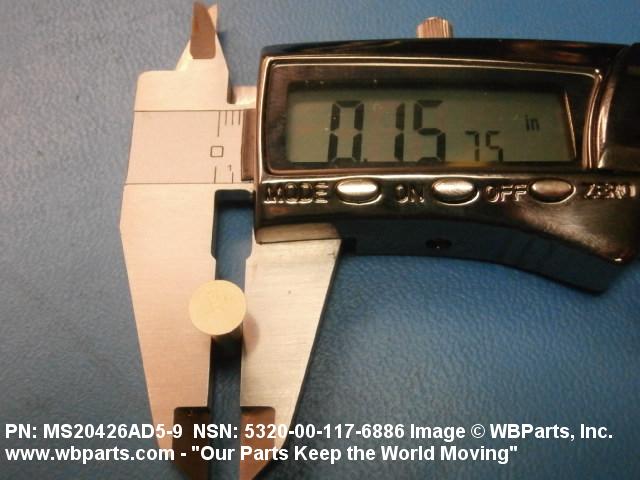

| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| GRIP LENGTH | 0.318 INCHES MINIMUM AND 0.338 INCHES MAXIMUM |
