NSN 5315-01-362-5516 MS9390681, MS9390-681, 01-362-5516
Product Details | HEADLESS STRAIGHT PIN
5315-01-362-5516 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS9390681, MS9390-681, 5315-01-362-5516, 01-362-5516, 5315013625516, 013625516
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 AUG 1992 | 01-362-5516 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

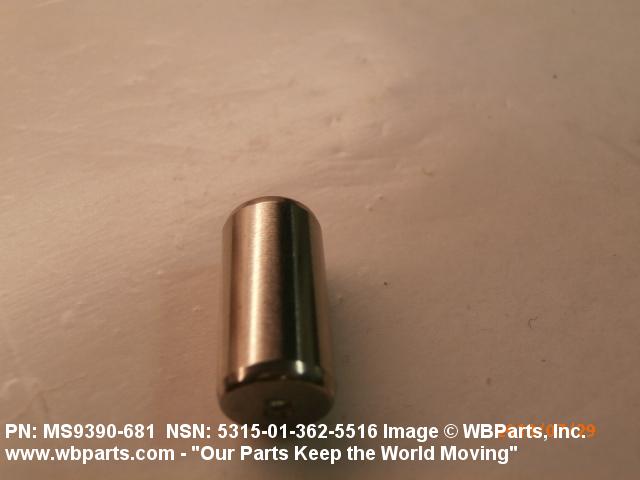

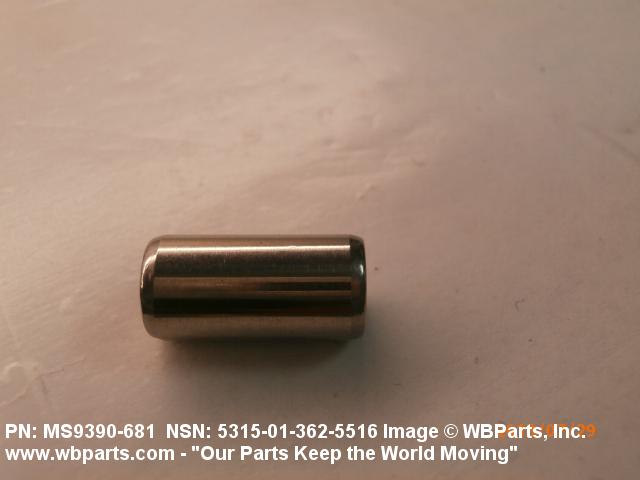

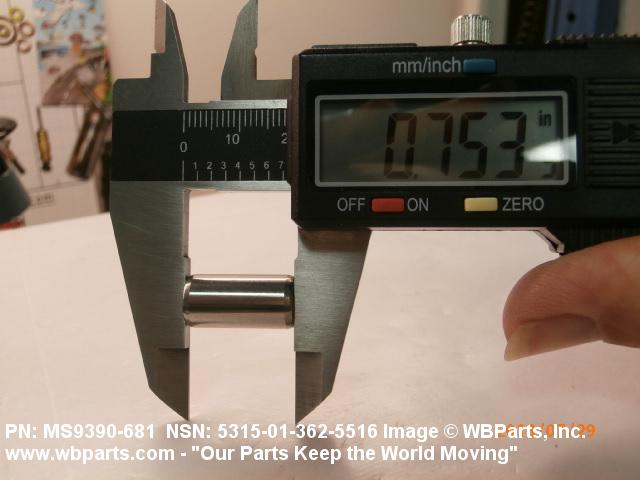

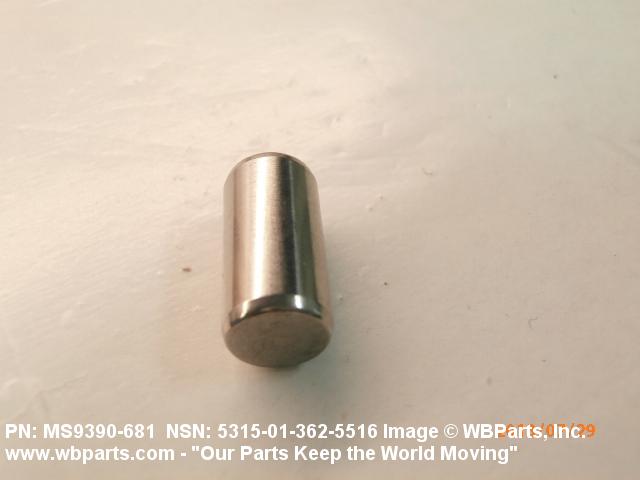

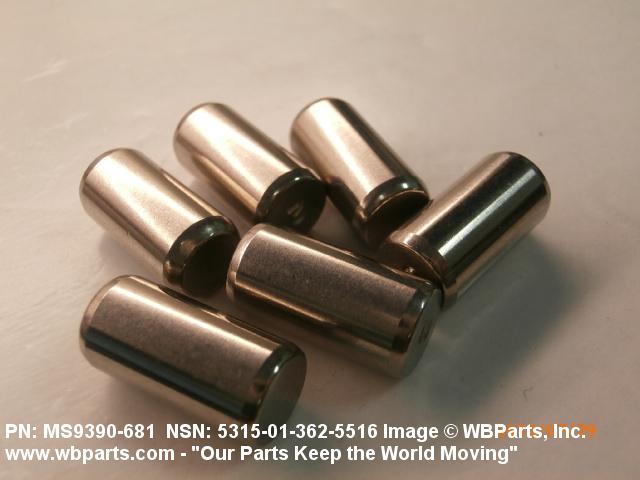

Drawings & Photos | NSN 5315-01-362-5516
Demand History | NSN 5315-01-362-5516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 013625516 | 2016-09-259 | 300 | United States |
| MS9390681 | 2013-07-200 | 60 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-362-5516
Technical Data | NSN 5315-01-362-5516
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| FIRST END STYLE | 4 RADIUS |
| FIRST END CORNER RADIUS | 0.100 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER |
| PIN OVERALL LENGTH | 0.750 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.37675 INCHES MINIMUM AND 0.37725 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-01-362-5516
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
