NSN 5315-01-306-1025 M21143/1-33, M21143133, NASM21143/1-33
Product Details | HEADLESS STRAIGHT PIN
5315-01-306-1025 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: M21143/1-33, M21143133, NASM21143/1-33, NASM21143133, MILP21143B, MIL-P-21143B, 5315-01-306-1025, 01-306-1025, 5315013061025, 013061025
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 AUG 1989 | 01-306-1025 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

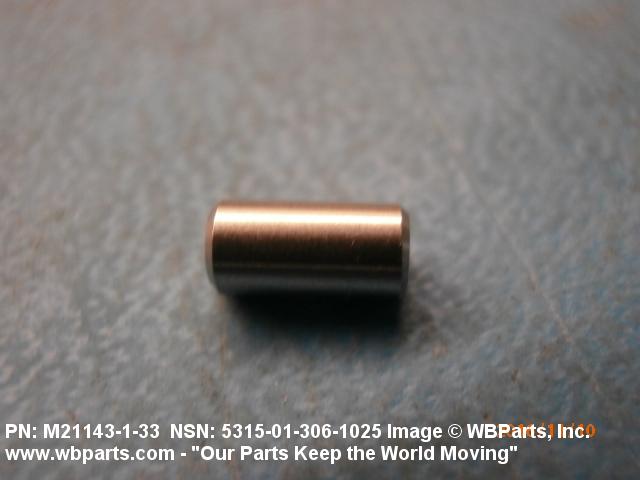

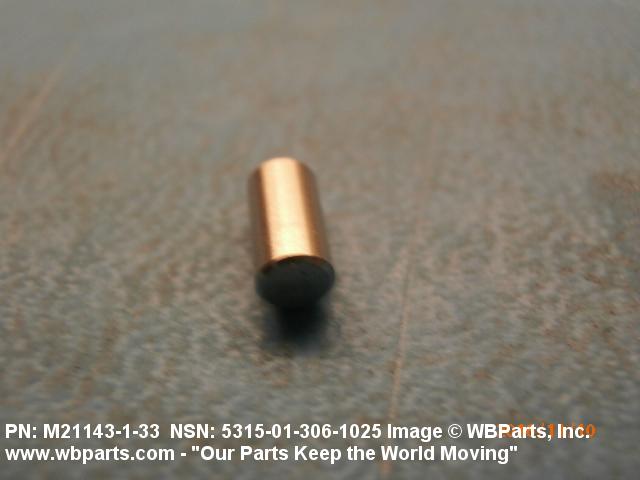

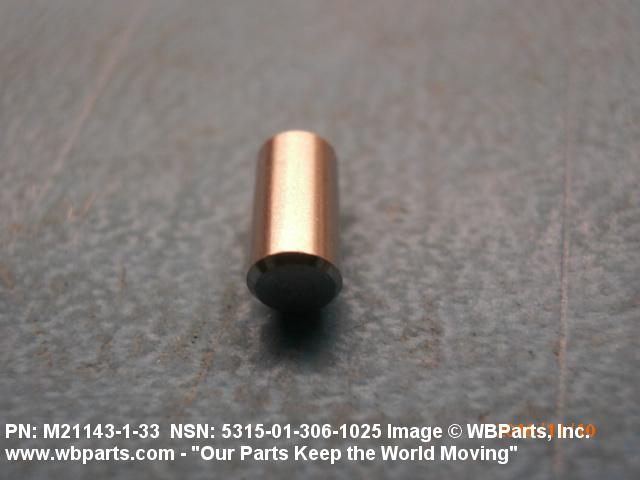

Drawings & Photos | NSN 5315-01-306-1025
Demand History | NSN 5315-01-306-1025
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-306-1025 | 2021-06-165 | 1 | US |
| M21143133 | 2017-07-193 | 20 | Australia |
| M21143133 | 2016-11-312 | 100 | United States |
| 5315-01-306-1025 | 2014-03-77 | 80 | DIBBS |
| M21143133 | 2013-11-319 | 1000 | US |
| M21143133 | 2013-11-319 | 500 | US |
| M21143133 | 2013-11-319 | 200 | US |
| 5315-01-306-1025 | 2012-08-236 | 16 | DIBBS |
| NASM21143133 | 2012-01-09 | 10 | US |
| M21143133 | 2010-06-173 | 30 | US |
| M21143133 | 2009-04-111 | 200 | US |
| M21143133 | 2008-08-228 | 1000 | Singapore |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-306-1025
Related Products | NSN 5315-01-306-1025
Technical Data | NSN 5315-01-306-1025
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 75.0 ROCKWELL B MINIMUM AND 83.0 ROCKWELL B MAXIMUM OVERALL |
| SHEAR STRENGTH | 1800 DOUBLE POUND |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SURFACE FINISH | 16.0 MICROINCHES OUTSIDE DIAMETER |

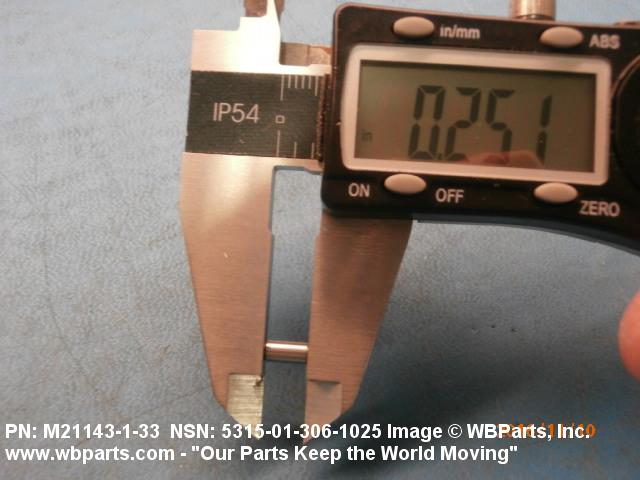

| PIN OVERALL LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

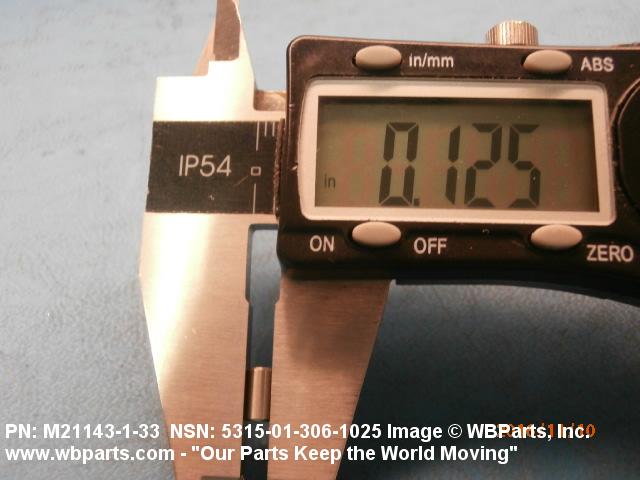

| PIN OVERALL DIAMETER | 0.1250 INCHES MINIMUM AND 0.1252 INCHES MAXIMUM |
