NSN 5315-01-201-5604 101169, 2471025060, 247-1025-060
Product Details | GUIDED DRIVE PIN
5315-01-201-5604 An item specifically designed to fasten steel, wood or composition material to concrete, masonry, or steel, with power provided by the blow of a HAMMER, HAND, while the item is in a hand-held guide.
Part Alternates: 101169, 2471025060, 247-1025-060, 7842531, 784253-1, 5315-01-201-5604, 01-201-5604, 5315012015604, 012015604
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 FEB 1985 | 01-201-5604 | 20602 ( PIN, DRIVE, GUIDED ) |

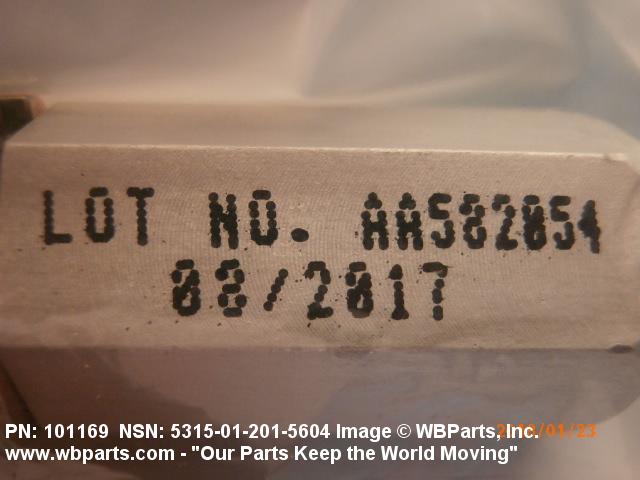

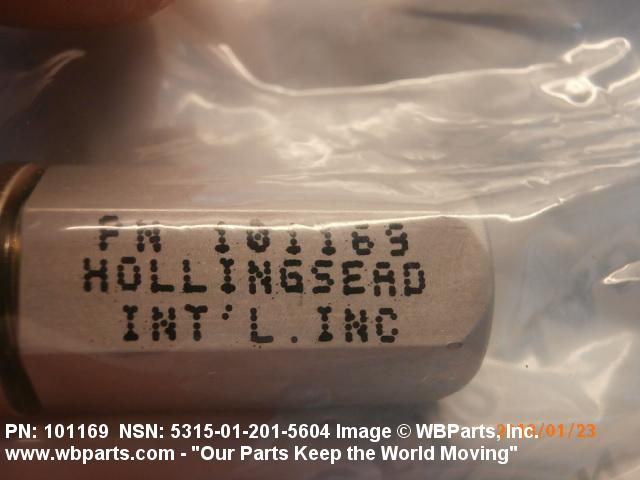

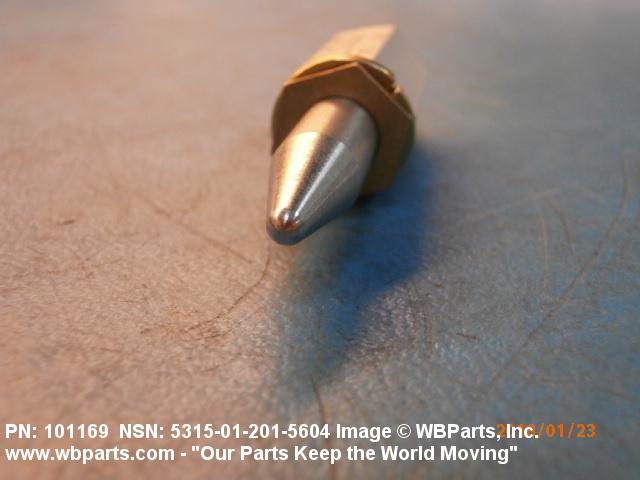

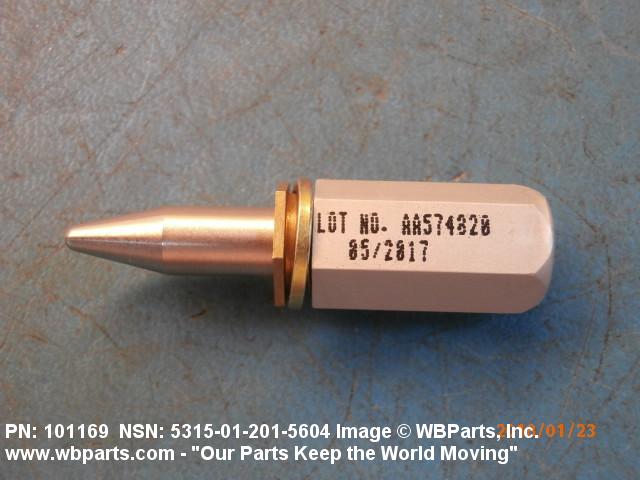

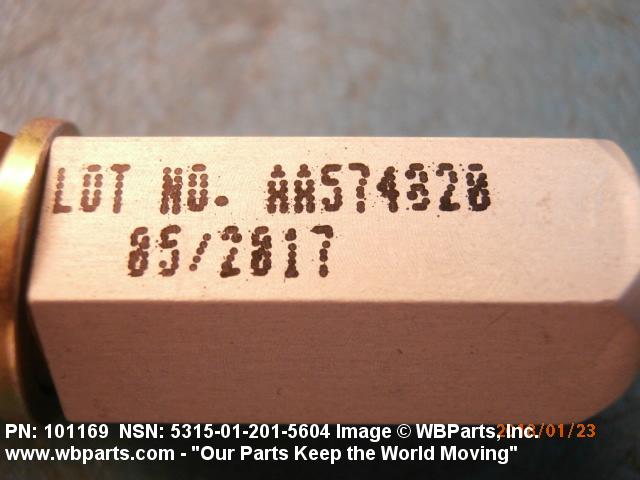

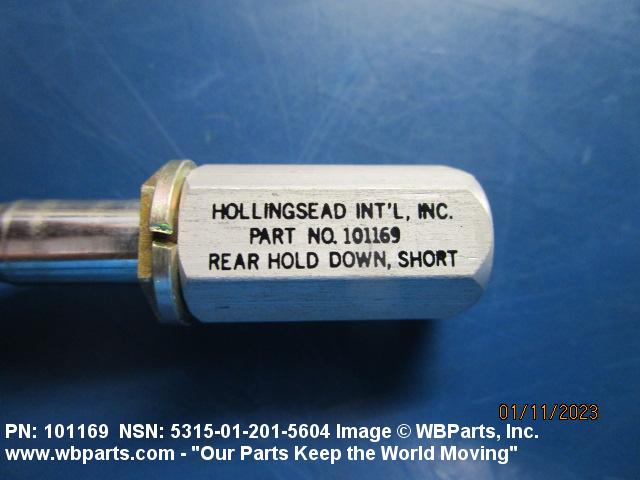

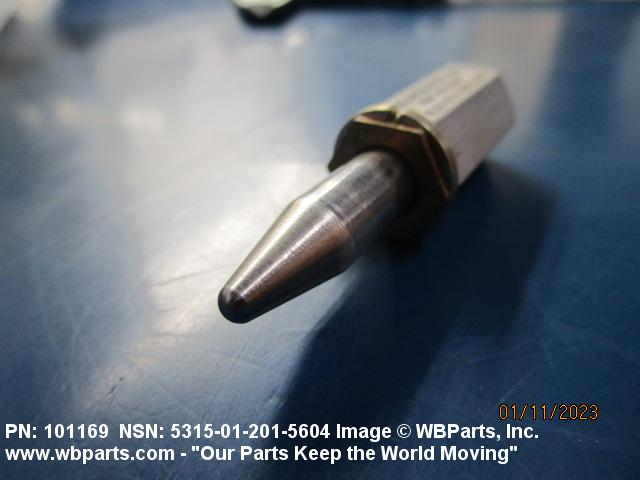

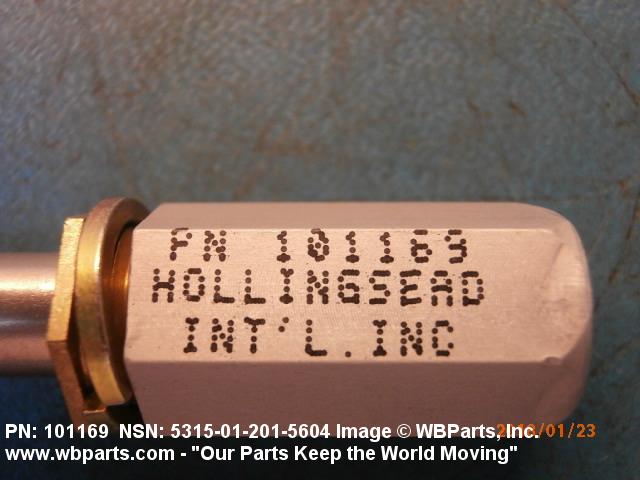

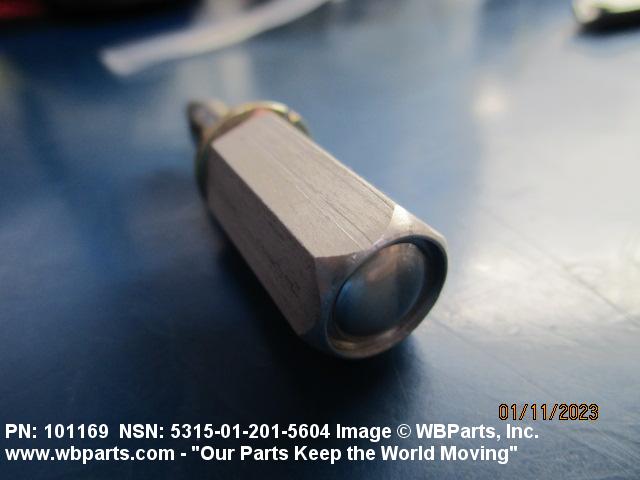

Drawings & Photos | NSN 5315-01-201-5604
Demand History | NSN 5315-01-201-5604
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 101169 | 2024-02-38 | 31 | United States |
| 101169 | 2023-10-293 | 20 | United States |
| 5315-01-201-5604 | 2022-11-307 | 16 | United Kingdom |
| 5315-01-201-5604 | 2022-11-307 | 16 | United Kingdom |
| 101169 | 2020-06-175 | 25 | US |
| 5315-01-201-5604 | 2020-04-120 | 4 | United States |
| 5315-01-201-5604 | 2020-02-56 | 1 | US |
| 101169 | 2019-08-230 | 72 | DIBBS |
| 101169 | 2019-05-121 | 30 | United States |
| 5315-01-201-5604 | 2019-02-38 | 1 | DIBBS-RFPs |
| 5315-01-201-5604 | 2018-01-16 | 25 | United States |
| 101169 | 2017-12-341 | 18 | United States |
| 5315-01-201-5604 | 2017-11-331 | 10 | us |
| 5315-01-201-5604 | 2017-10-290 | 10 | US |
| 5315-01-201-5604 | 2016-12-342 | 2 | US |
| 5315-01-201-5604 | 2016-12-342 | 2 | US |
| 5315-01-201-5604 | 2015-07-184 | 10 | US |
| 101169 | 2012-08-226 | 1 | United States |
| 101169 | 2012-08-226 | 20 | United States |
| 5315-01-201-5604 | 2012-04-121 | 101 | United States |
| 5315-01-201-5604 | 2012-04-121 | 200 | United States |
| 101169 | 2012-04-121 | 220 | United States |
| 5315-01-201-5604 | 2011-09-262 | 20 | US |
| 5315-01-201-5604 | 2011-04-104 | 100 | United States |
| 5315-01-201-5604 | 2010-11-305 | 25 | United States |
| 7842531 | 2008-10-284 | 182 | United States |
| 5315-01-201-5604 | 2008-10-282 | 182 | DIBBS |
Cross Reference | NSN 5315-01-201-5604
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-201-5604
Related Products | NSN 5315-01-201-5604
Technical Data | NSN 5315-01-201-5604
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 SHANK |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-7720 MIL SPEC SINGLE MATERIAL RESPONSE SHANK |

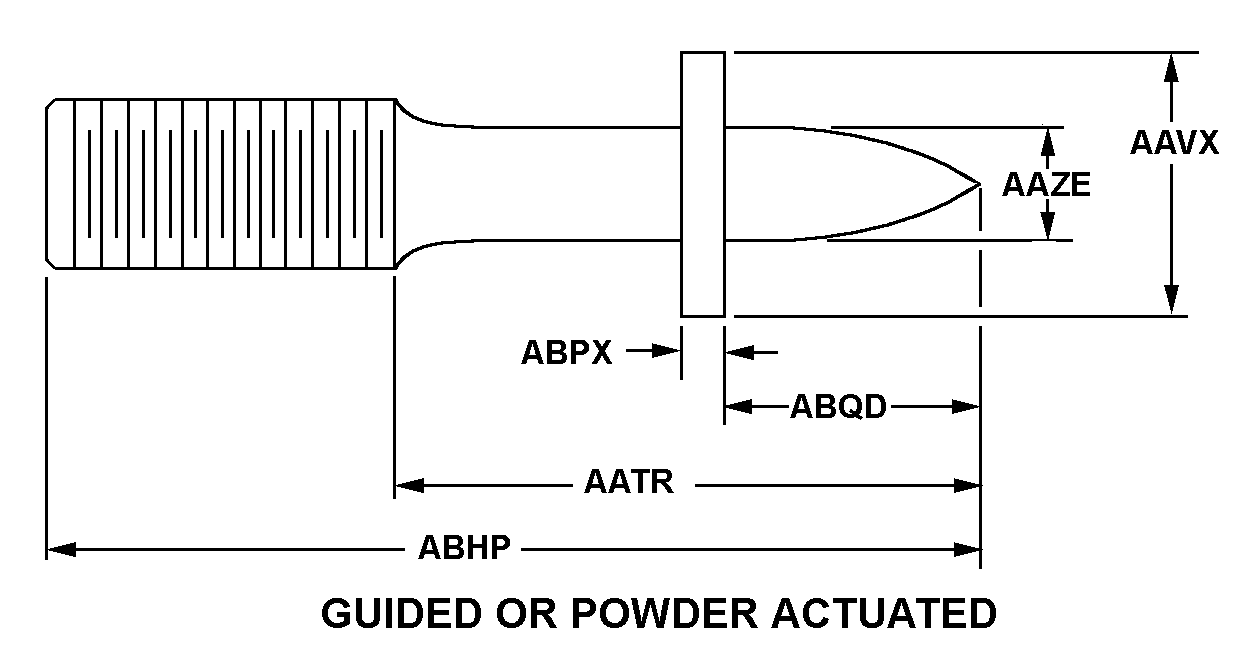

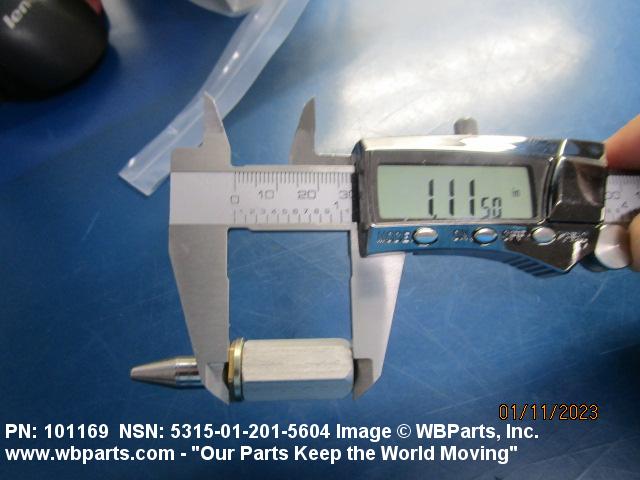

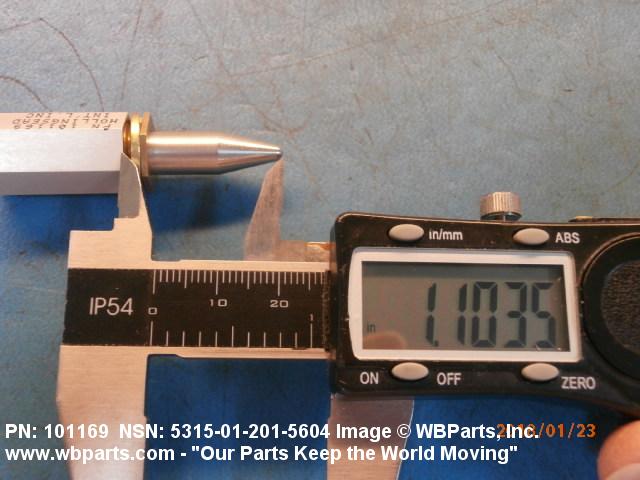

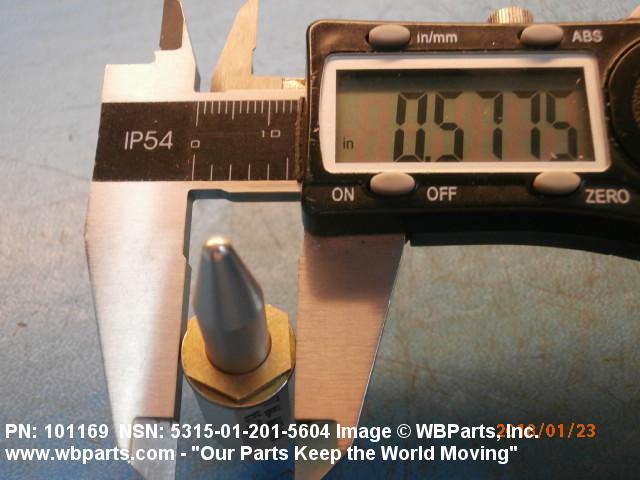

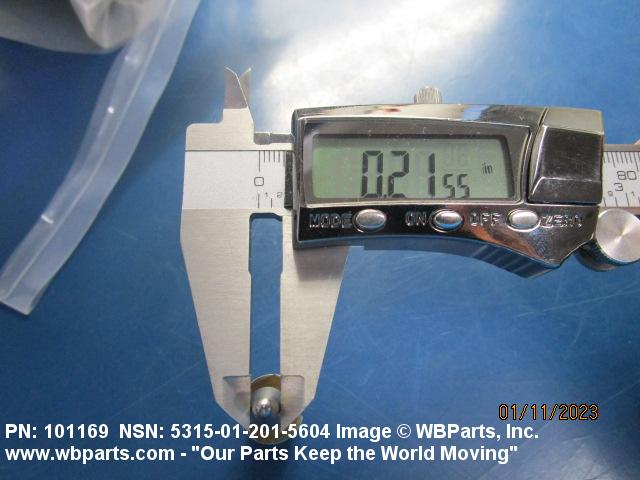

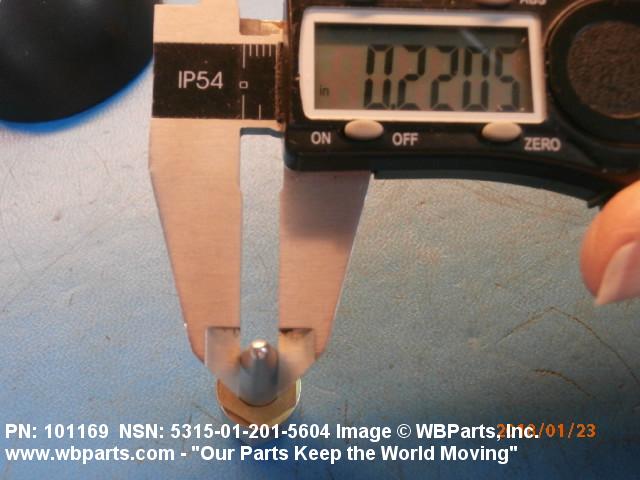

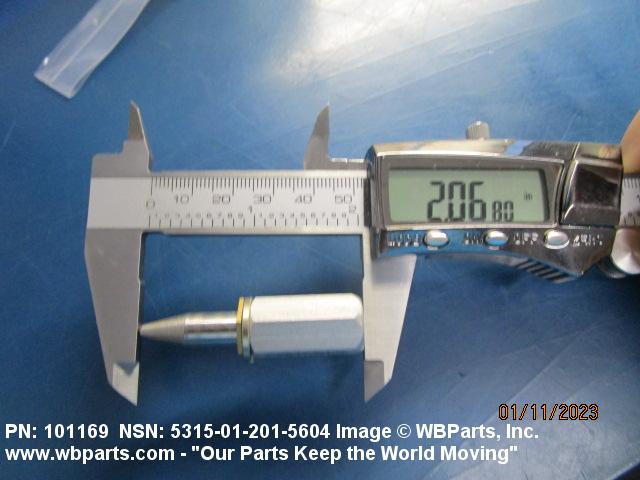

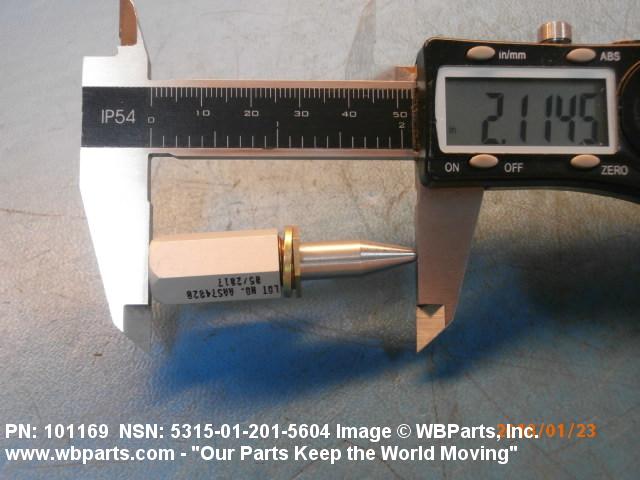

| STYLE DESIGNATOR | P238 GUIDED OR POWDER ACTUATED |
| SHANK LENGTH | 1.110 INCHES MINIMUM AND 1.170 INCHES MAXIMUM |
| WASHER OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| SHANK DIAMETER | 0.221 INCHES NOMINAL |
| OVERALL LENGTH | 2.080 INCHES MINIMUM AND 2.200 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.438 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL FOR WHICH DESIGNED | STEEL |
| MANUFACTURERS CODE | 73030 |
| MFR SOURCE CONTROLLING REFERENCE | 784253-1 |
