NSN 5315-01-199-9572 53984-10-47, 9M716C1047, 9M716C10-47
Product Details | EXPANDING GRIP PIN
5315-01-199-9572 A quick-acting fastening and aligning device with a cam handle and a solid, inner pin surrounded by male and female bushings. Actuation of the handle creates an expanding or contracting action. It may be furnished with captive pin, locking cam handle, lanyard or lock ring.
Part Alternates: 53984-10-47, 9M716C1047, 9M716C10-47, 5315-01-199-9572, 01-199-9572, 5315011999572, 539841047, 011999572
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JAN 1985 | 01-199-9572 | 35796 ( PIN, EXPANDING GRIP ) |

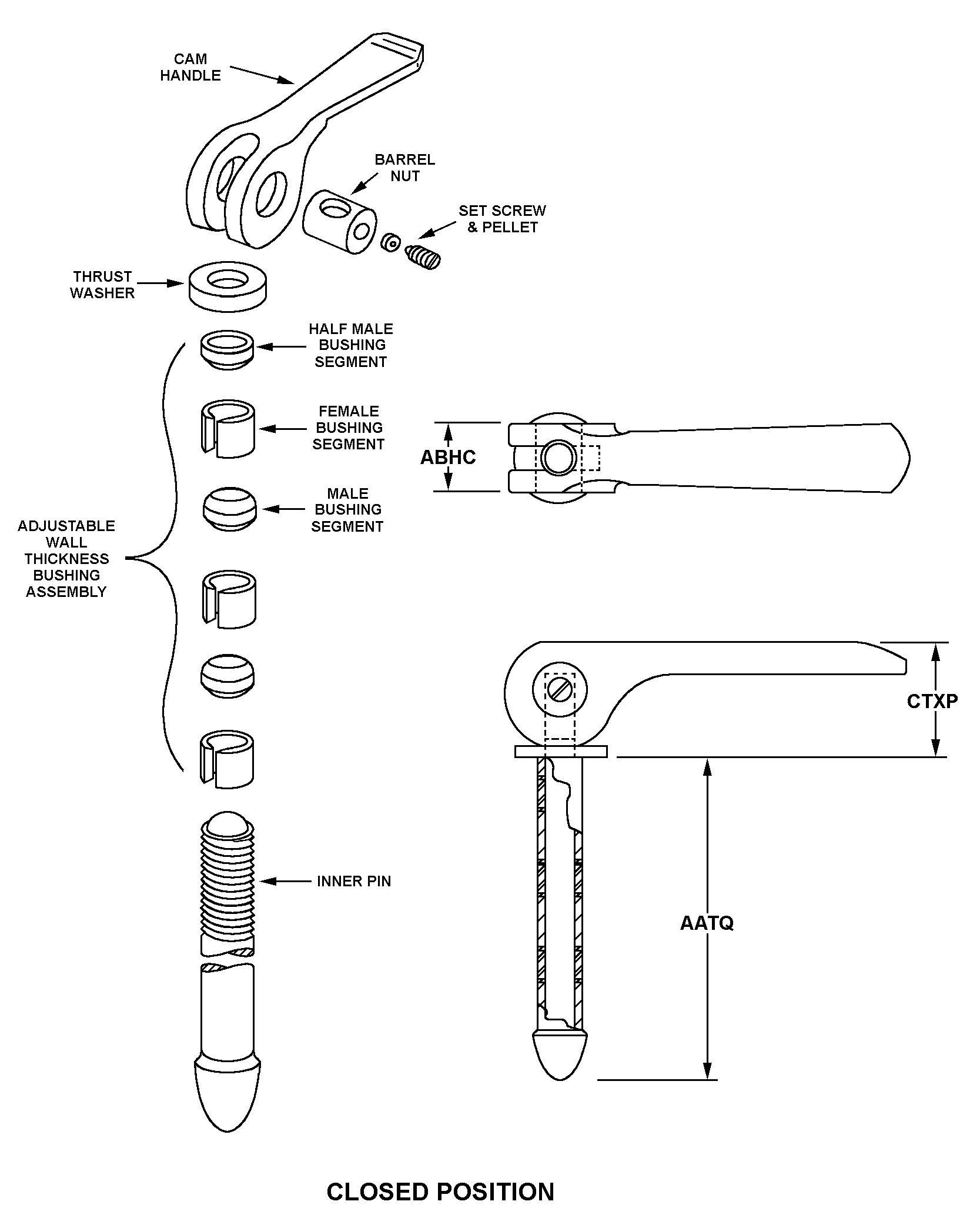

Drawings & Photos | NSN 5315-01-199-9572
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-199-9572
Technical Data | NSN 5315-01-199-9572
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM HANDLE STEEL COMP 630 HEAD STEEL COMP 630 BARREL NUT AND THRUST WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE HEAD AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE BARREL NUT AND THRUST WASHER |
| SURFACE TREATMENT | ANODIZE HANDLE PASSIVATE INNER PIN |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE HANDLE |
| SHEAR STRENGTH | 58300 DOUBLE POUND |
| STYLE DESIGNATOR | Y1 PIN, EXPANDING GRIP |
| GRIP LENGTH | 2.938 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 1.640 INCHES MAXIMUM |
| ACTUATION METHOD | HANDLE |
| PIN NOMINAL DIAMETER | 0.618 INCHES |
| MANUFACTURERS CODE | 84256 |
| DESIGN CONTROL REFERENCE | 53984-10-47 |
Restrictions/Controls & Freight Information | NSN 5315-01-199-9572
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-199-9572
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
