Product Details | HEADLESS STRAIGHT PIN

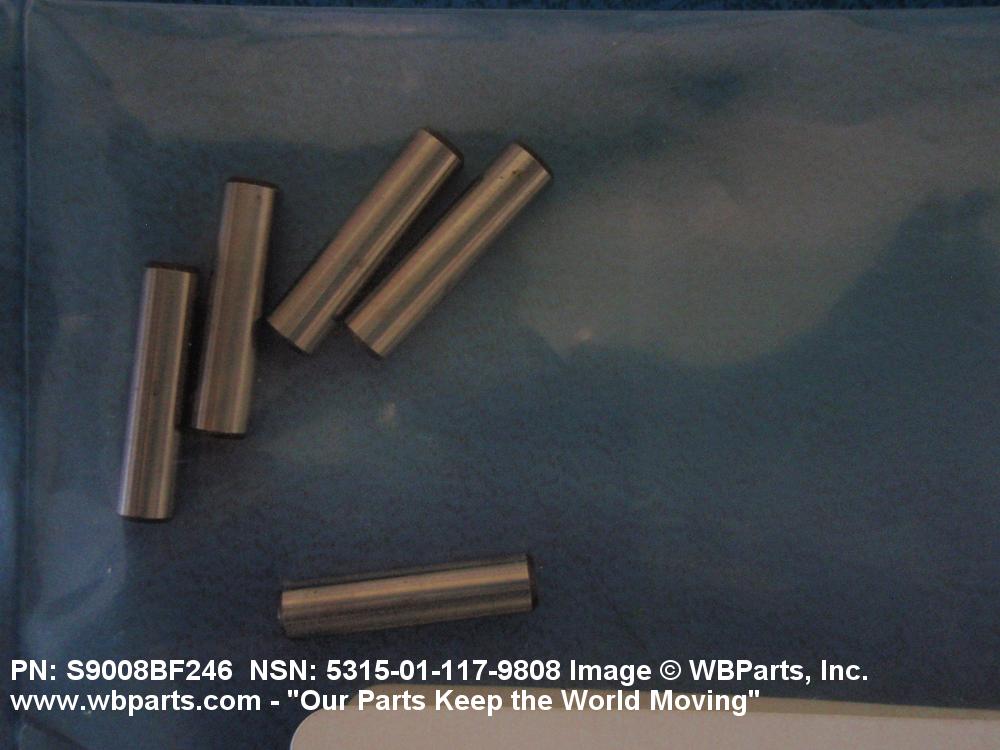

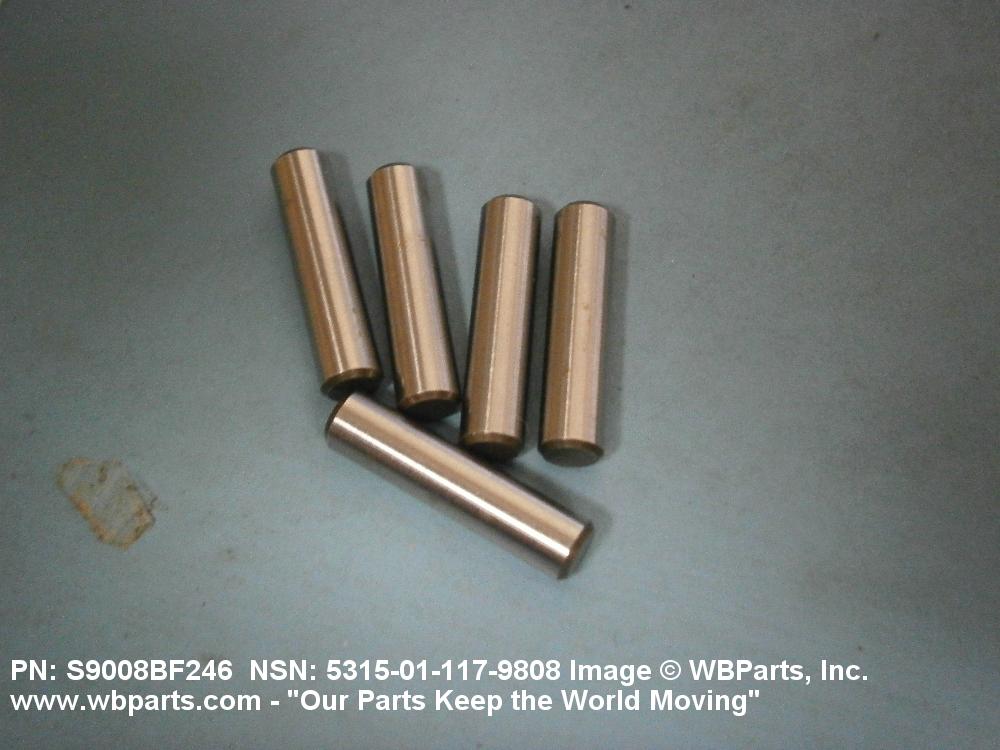

5315-01-117-9808 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: S9008BF246, 5315-01-117-9808, 01-117-9808, 5315011179808, 011179808
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 AUG 1981 | 01-117-9808 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-01-117-9808
Demand History | NSN 5315-01-117-9808
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-117-9808 | 2018-01-03 | 388 | DIBBS |
| 5315-01-117-9808 | 2017-02-39 | 185 | DIBBS |
| 5315-01-117-9808 | 2016-01-18 | 135 | DIBBS |
| 5315-01-117-9808 | 2013-11-308 | 35 | DIBBS |
| S9008BF246 | 2012-05-124 | 5 | United States |
| S9008BF246 | 2011-05-129 | 5 | United States |
