NSN 5315-01-116-9402 MS939092, MS9390-92, MS9390920

Product Details | HEADLESS STRAIGHT PIN

5315-01-116-9402 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS939092, MS9390-92, MS9390920, MS9390-920, 5315-01-116-9402, 01-116-9402, 5315011169402, 011169402

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 AUG 1981	01-116-9402	02390 ( PIN, STRAIGHT, HEADLESS )

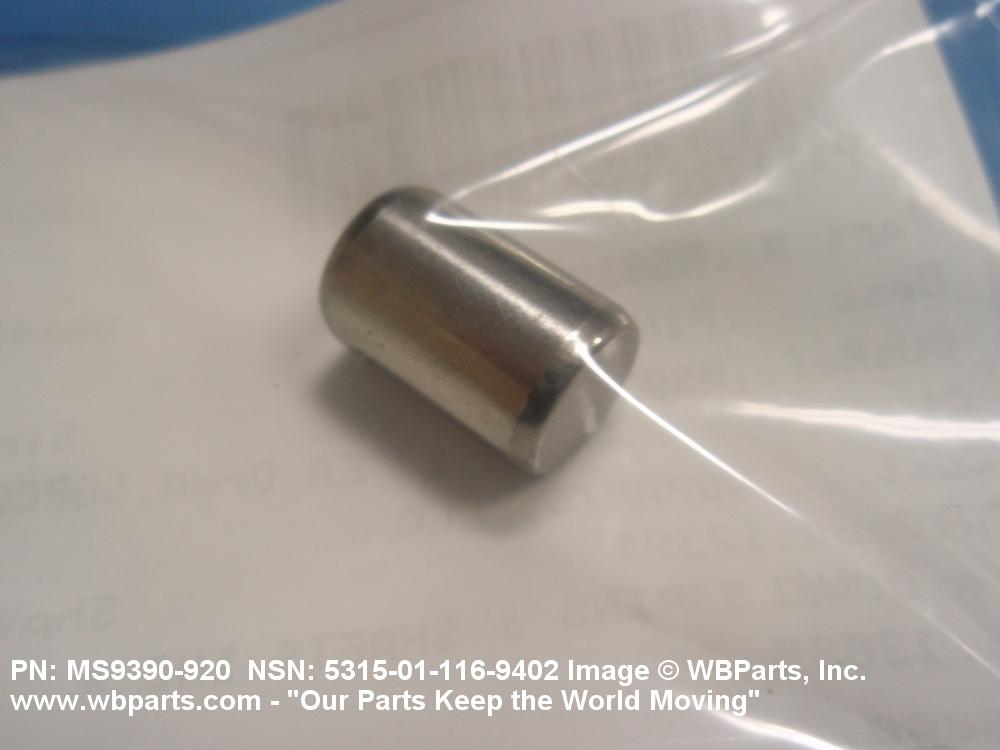

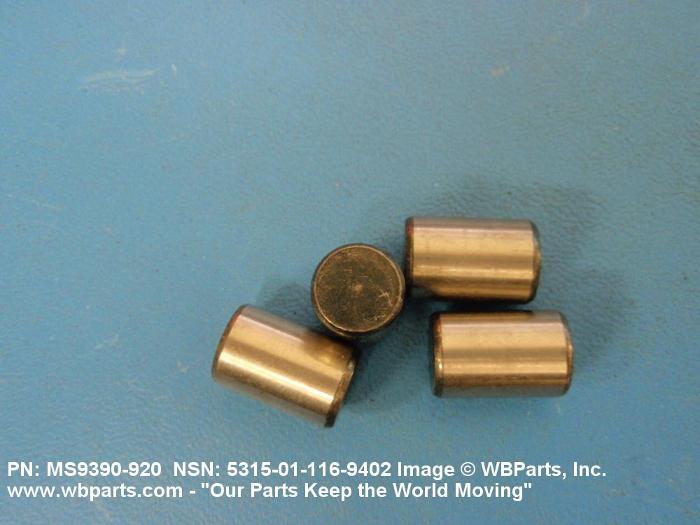

Drawings & Photos | NSN 5315-01-116-9402

Part Number	Request Date	QTY	Origin
5315-01-116-9402	2022-08-223	16	US
5315-01-116-9402	2021-09-257	41	DIBBS
5315-01-116-9402	2019-09-255	65	US
5315-01-116-9402	2015-07-193	66	DIBBS
MS9390-920	2012-02-54	90	IN
5315-01-116-9402	2011-06-154	1	United States
MS9390920	2011-05-145	20	United States
MS9390920	2011-05-124	300	US
5315-01-116-9402	2011-02-43	5	DIBBS
5315-01-116-9402	2010-10-292	11	DIBBS
MS9390920	2009-11-316	20	US
5315-01-116-9402	2009-10-274	20	DIBBS

Cross Reference | NSN 5315-01-116-9402

Part Number	Cage Code	Manufacturer
MS9390-92	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS9390-920	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS9390-920	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-01-116-9402

Compare

Related Products | NSN 5315-01-116-9402

5315-01-116-9403, 5315-01-116-9404, 5315-01-116-9760, 5315-01-116-9784, 5315-01-116-9786

Technical Data | NSN 5315-01-116-9402

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
FIRST END STYLE	4 RADIUS
FIRST END CORNER RADIUS	0.100 INCHES NOMINAL
SECOND END RELATIONSHIP WITH FIRST END	IDENTICAL
SURFACE FINISH	32.0 MICROINCHES OVERALL
PIN OVERALL LENGTH	0.750 INCHES NOMINAL
PIN OVERALL DIAMETER	0.49975 INCHES MINIMUM AND 0.50025 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5315-01-116-9402

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-01-116-9402

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
