NSN 5315-01-091-7071 16A111259, 16A11125-9, 01-091-7071
Product Details | HEADLESS STRAIGHT PIN
5315-01-091-7071 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 16A111259, 16A11125-9, 5315-01-091-7071, 01-091-7071, 5315010917071, 010917071
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 MAR 1980 | 01-091-7071 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-01-091-7071
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-091-7071
Technical Data | NSN 5315-01-091-7071
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 CL 321 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

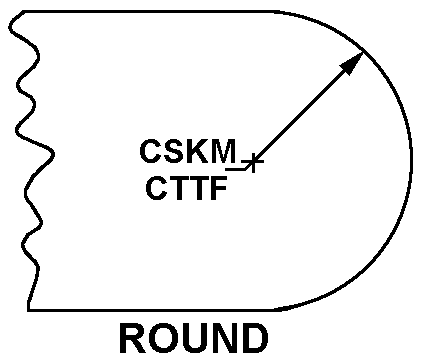

| FIRST END STYLE | 5 ROUND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.156 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.250 INCHES NOMINAL |
| PIN OVERALL LENGTH | 6.000 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 0.7480 INCHES MINIMUM AND 0.7490 INCHES MAXIMUM |
| SPECIAL FEATURES | INCL WIRE ROPE 14.300 IN. LG AND ONE SLEEVE P/N C353-3 FSCM 81755 |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16A11125-9 |
