NSN 5315-00-989-2787 2813231, 291AS204, 00-989-2787

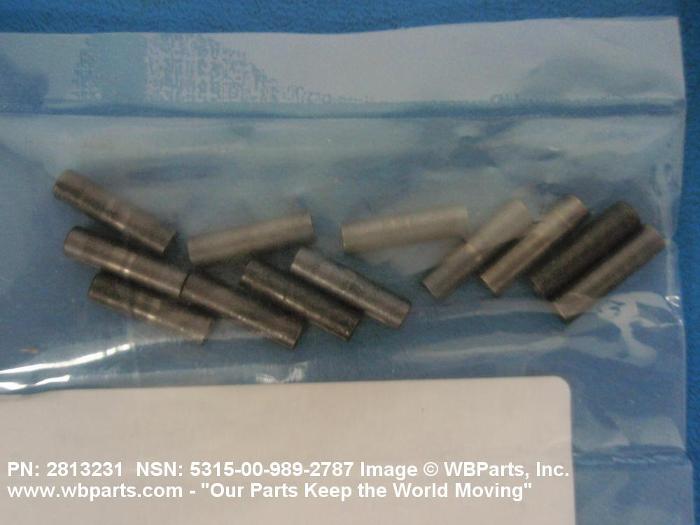

Product Details | HEADLESS STRAIGHT PIN
5315-00-989-2787 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 2813231, 291AS204, 5315-00-989-2787, 00-989-2787, 5315009892787, 009892787
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-989-2787 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-00-989-2787
Demand History | NSN 5315-00-989-2787
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-989-2787 | 2019-10-296 | 1450 | DIBBS |
| 5315-00-989-2787 | 2019-10-280 | 1450 | DIBBS |
| 5315-00-989-2787 | 2019-07-203 | 852 | DIBBS |
| 5315-00-989-2787 | 2019-06-171 | 852 | DIBBS |
| 291AS204 | 2011-05-124 | 12 | Taiwan |
| 5315-00-989-2787 | 2009-09-247 | 2890 | DIBBS |
