5315-00-987-6853 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.

Part Alternates: B800509006FN20, B8005-09-006FN20, V09006020, V09-006-020, 5315-00-987-6853, 00-987-6853, 5315009876853, 009876853

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-987-6853

Drawings & Photos | NSN 5315-00-987-6853


Demand History | NSN 5315-00-987-6853

Part Number Request Date QTY Origin
5315-00-987-6853 2015-07-210 25 DIBBS
5315-00-987-6853 2014-10-295 5 DIBBS
5315-00-987-6853 2014-07-196 10 DIBBS
5315-00-987-6853 2014-06-152 8 DIBBS
5315-00-987-6853 2013-11-332 10 DIBBS
5315-00-987-6853 2012-04-93 4 DIBBS
5315-00-987-6853 2011-08-234 3 DIBBS
5315-00-987-6853 2011-07-196 4 DIBBS
5315-00-987-6853 2010-08-225 1 DIBBS
5315-00-987-6853 2010-06-168 1 DIBBS
5315-00-987-6853 2010-04-115 1 DIBBS
5315-00-987-6853 2010-03-66 1 DIBBS
5315-00-987-6853 2010-02-45 1 DIBBS
5315-00-987-6853 2009-08-222 8 DIBBS

Cross Reference | NSN 5315-00-987-6853

Part Number Cage Code Manufacturer
B8005-09-006FN20 81996 U S ARMY AVIATION AND MISSILE COMMAND
V09-006-020 25169 PROJECT MANAGER AMPHIBIOUS LIGHTERS ST LOUIS MO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-987-6853

Technical Data | NSN 5315-00-987-6853

Characteristic Specifications
MATERIAL COPPER ALLOY OVERALL

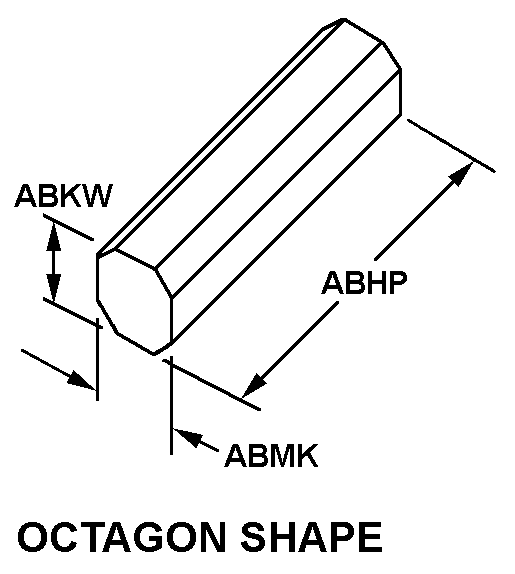

STYLE DESIGNATOR B31 OCTAGON SHAPE
OVERALL LENGTH 5.484 INCHES MINIMUM AND 5.516 INCHES MAXIMUM
OVERALL HEIGHT 0.620 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
OVERALL WIDTH 0.624 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
STARTING EDGE SHAPE STRAIGHT

Restrictions/Controls & Freight Information | NSN 5315-00-987-6853

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI
Less than car load rating P 77.5
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5315-00-987-6853

Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code5Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code1Bin
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
