Product Details | MACHINE KEY

5315-00-962-1473 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.

Part Alternates: MS20066257, MS20066-257, 5315-00-962-1473, 00-962-1473, 5315009621473, 009621473

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-962-1473

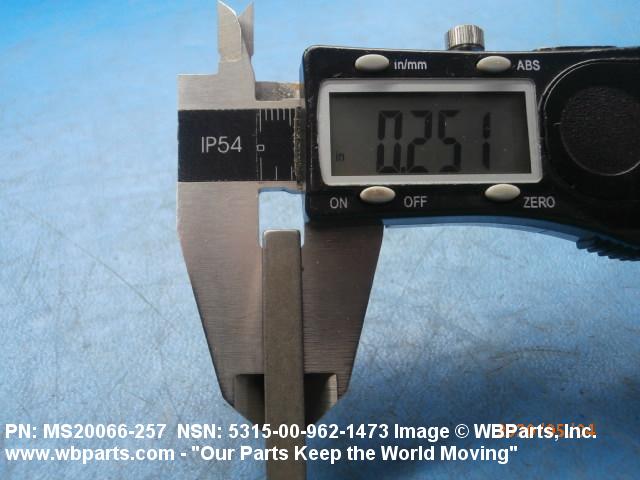

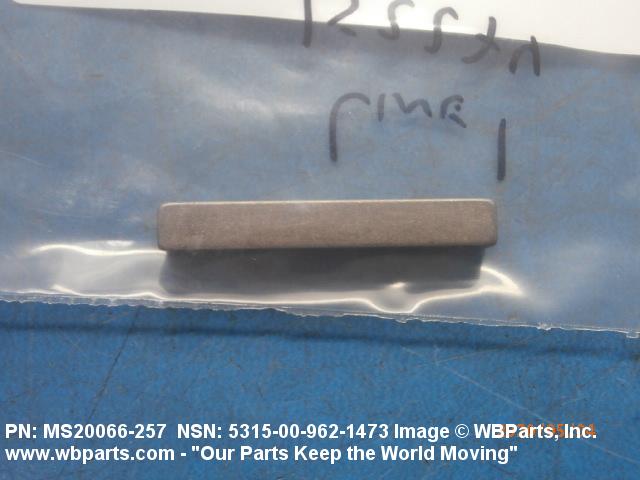

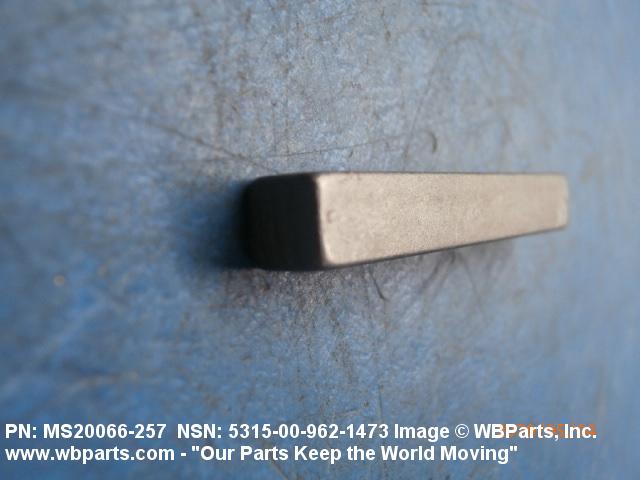

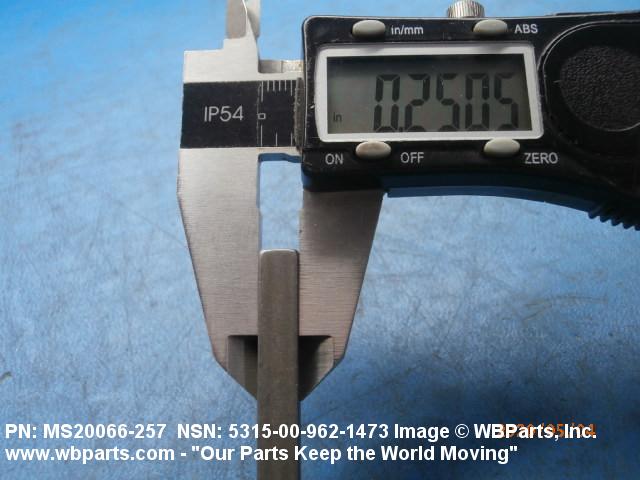

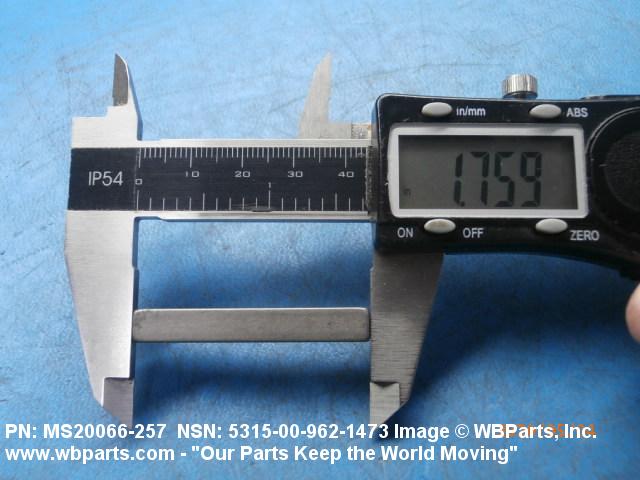

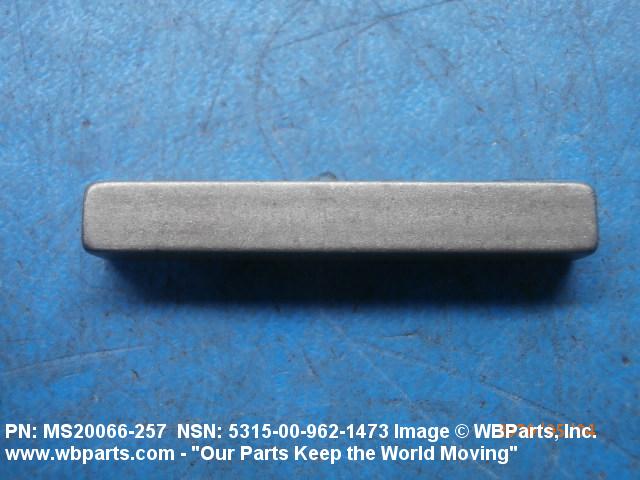

Drawings & Photos | NSN 5315-00-962-1473


Demand History | NSN 5315-00-962-1473

Part Number Request Date QTY Origin
MS20066257 2019-10-280 1 United States
5315-00-962-1473 2017-03-85 371 DIBBS
MS20066257 2008-05-151 12 United States

Cross Reference | NSN 5315-00-962-1473

Part Number Cage Code Manufacturer
MS20066-257 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20066-257 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-962-1473

Technical Data | NSN 5315-00-962-1473

Characteristic Specifications
MATERIAL STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1025 OR STEEL COMP 1026 OR STEEL COMP 1029 OR STEEL COMP 1030 OR STEEL COMP 1031 OR STEEL COMP 1033 OR STEEL COMP 1035 OR STEEL COMP 1034 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 66 FED STD ALL MATERIAL RESPONSES OVERALL
STYLE DESIGNATOR B15 PLAIN
OVERALL LENGTH 1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM
OVERALL HEIGHT 0.250 INCHES MINIMUM AND 0.251 INCHES MAXIMUM
OVERALL WIDTH 0.250 INCHES MINIMUM AND 0.251 INCHES MAXIMUM
STARTING EDGE SHAPE STRAIGHT
NONDEFINITIVE SPEC/STD DATA 3 TYPE AND C GRADE
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS20066-257

Restrictions/Controls & Freight Information | NSN 5315-00-962-1473

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 095190 HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating Q 70.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5315-00-962-1473

Category Code Description
Materiel Category and Inventory ManagerT Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityAItem requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesZINSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
