NSN 5315-00-890-4877 ASTM F1667STFCC08, ASTMF1667STFCC08, GGGS1309
Product Details | STAPLE
5315-00-890-4877 A U-shaped fastening device with pointed ends.20253150029Nails, Machine Keys, and Pins65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: ASTM F1667STFCC08, ASTMF1667STFCC08, GGGS1309, GGG-S-1309, GGG-S-1309 SZ1, GGGS1309SZ1, 5315-00-890-4877, 00-890-4877, 5315008904877, 008904877
Hardware and Abrasives | Nails, Machine Keys, and Pins
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 12 APR 1968 | 00-890-4877 | 29632 ( STAPLE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-890-4877
Related Products | NSN 5315-00-890-4877
Technical Data | NSN 5315-00-890-4877
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
SURFACE TREATMENT | TIN OR GALVANIZED OR LACQUER |
SURFACE TREATMENT LOCATION | OVERALL |
STERILIZED | NO |
METALLIC HARDNESS RATING | NOT RATED |
HEAD STYLE | 31 STRAIGHT RECTANGULAR STOCK |
INSIDE DISTANCE BETWEEN PRONGS | 0.437 INCHES MINIMUM AND 0.447 INCHES MAXIMUM |
STOCK WIDTH | 0.047 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
STOCK THICKNESS | 0.017 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |

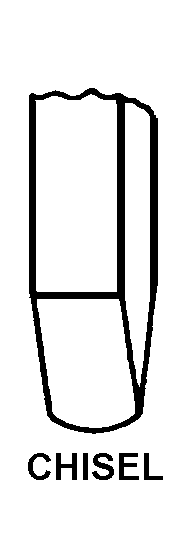

POINT STYLE | 4 CHISEL |
FASTENER LENGTH | 0.375 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
STOCK SHAPE | RECTANGULAR |
NONDEFINITIVE SPEC/STD DATA | 1 SIZE |
MANUFACTURERS CODE | 81348 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-S-1309 |
Restrictions/Controls & Freight Information | NSN 5315-00-890-4877
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
No Freight Information |
Management | NSN 5315-00-890-4877
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
B BX : Box |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
B BX : Box |
