NSN 5315-00-881-2253 MS16562221, MS16562-221, MS171526

Product Details | SPRING PIN

5315-00-881-2253 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.

Part Alternates: MS16562221, MS16562-221, MS171526, M1927L, M19357, M193-57, NAS561C48, NAS561C4-8, NASM16562, SF-10565 ITEM 0, SF10565ITEM0, SMC14955346, SMC149553-46, F12648L, F126-4-8L, PS1250500CRPA028, PS125-0500CRPA028, 589746, 6514842, 6695694, 6695-694, 699328S, 69932-8S, 790281250500, 79-028-125-0500, 79R50001250500, 79R5000-125-0500, 930769, 049558, 0495-58, 10122786 , 1034D24011, 1034-D240-11, 14320, 2931022P36, 293-1022P36, 293M0007P020, 3110383000, 311-0383-000, 42P116997080, 42P11699-7080, 480 735, 480735, 515808, 51580-8, 5315-00-881-2253, 00-881-2253, 5315008812253 , 008812253

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-881-2253	02389 ( PIN, SPRING )

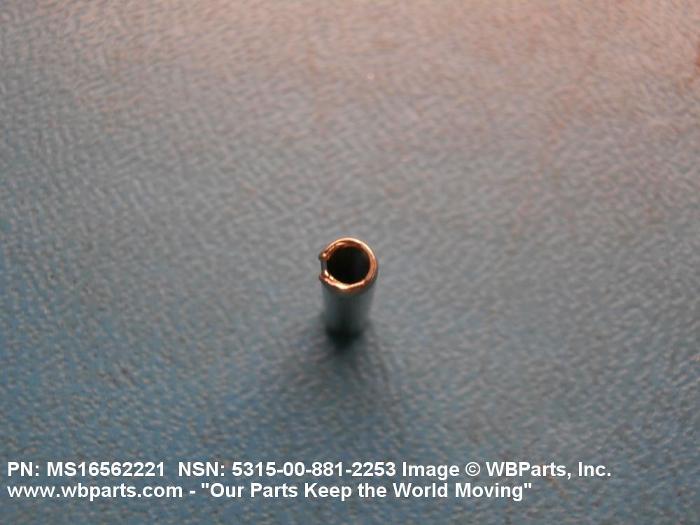

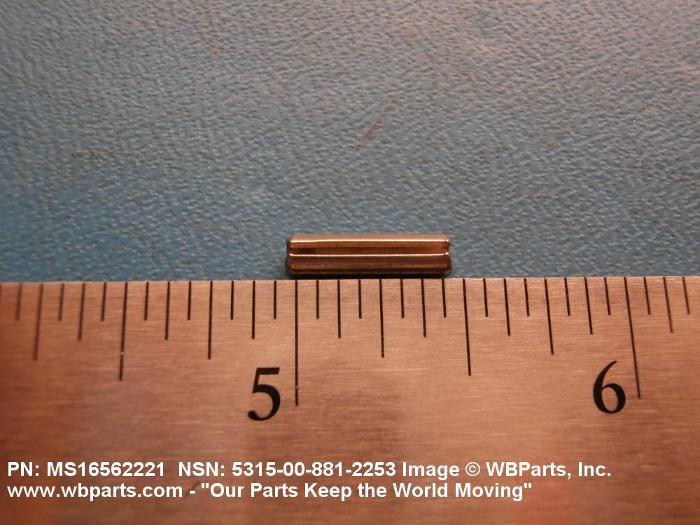

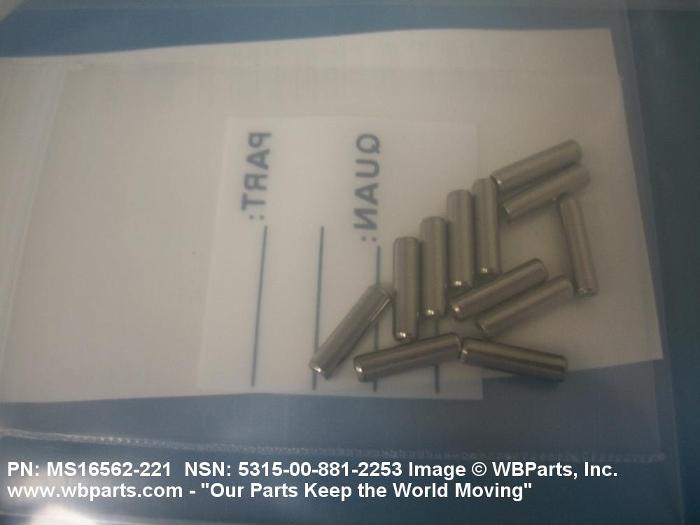

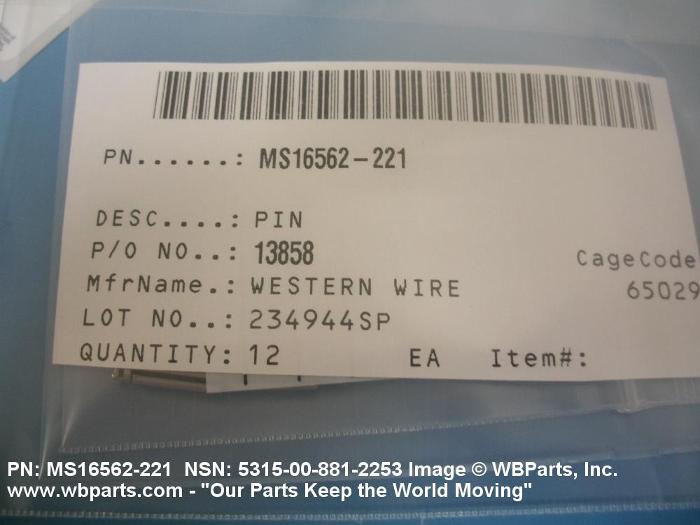

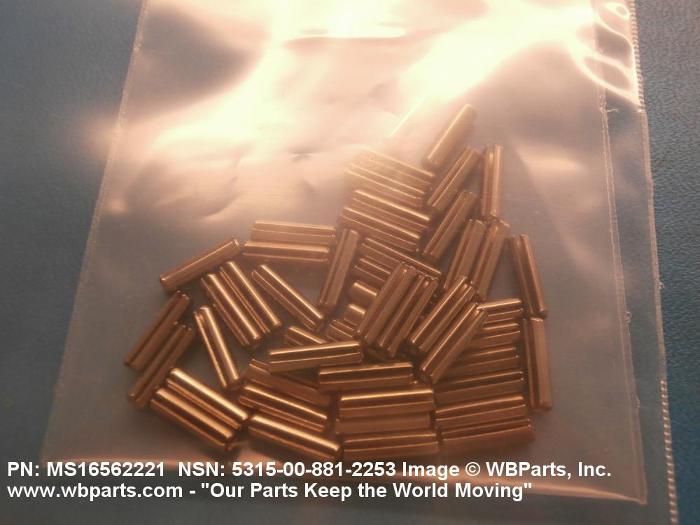

Drawings & Photos | NSN 5315-00-881-2253

Part Number	Request Date	QTY	Origin
5315-00-881-2253	2025-01-17	12000	US
5315-00-881-2253	2024-08-235	2	United States
NASM16562	2021-11-306	1	US
5315-00-881-2253	2021-02-53	100	CA
NAS561C48	2021-02-35	14	US
5315-00-881-2253	2020-11-322	26	United States
MS16562-221	2020-06-174	80	Hong Kong
14320	2018-11-319	1	United States
MS16562-221	2018-11-310	36	Israel
5315-00-881-2253	2018-05-130	500	DIBBS
5315-00-881-2253	2017-10-297	1	CN
5315-00-881-2253	2017-06-166	502	DIBBS
5315-00-881-2253	2017-06-157	502	DIBBS
5315-00-881-2253	2017-03-90	199	DIBBS
5315-00-881-2253	2017-03-82	199	DIBBS
5315-00-881-2253	2017-02-52	215	DIBBS
5315-00-881-2253	2017-01-04	423	DIBBS
5315-00-881-2253	2016-08-229	428	DIBBS
5315-00-881-2253	2016-06-164	679	DIBBS
NAS561C48	2015-07-196	100	US
MS16562221	2015-06-169	100	US
MS16562221	2015-05-141	100	United States
NASM16562	2015-03-65	69	United States
5315-00-881-2253	2014-09-254	570	DIBBS
5315-00-881-2253	2014-04-111	688	DIBBS
5315-00-881-2253	2014-04-98	688	DIBBS
MS16562221	2014-04-97	20	US
MS16562-221	2014-04-97	20	US
5315-00-881-2253	2014-02-48	26	US
008812253	2013-08-240	3	US
MS16562221	2012-11-332	50	United States
5315-00-881-2253	2012-04-116	20	AU
NAS561C48	2011-11-327	1	US
MS16562221	2011-09-272	12	United States
5315-00-881-2253	2011-08-214	68	US
5315-00-881-2253	2011-07-194	216	US
MS171526	2011-06-154	1	US
5315-00-881-2253	2011-05-126	1	United States
MS16562221	2011-03-69	3	United States
MS16562221	2010-12-356	1	Italy
MS16562221	2010-07-189	500	US
MS16562221	2010-07-189	700	US
NASM16562	2010-06-161	4000	US
5315-00-881-2253	2010-01-27	561	DIBBS
NASM16562	2010-01-05	3	US
NASM16562	2009-12-348	4	US
MS16562221	2009-08-236	4	US
MS16562221	2009-04-92	120	Australia
MS16562221	2009-02-57	100	United States
MS16562221	2009-02-57	200	United States
5315-00-881-2253	2008-07-211	5	US
MS16562221	2008-04-107	100	United States
5315-00-881-2253	2008-01-18	4000	India
MS16562221	2007-11-320	50	US

Cross Reference | NSN 5315-00-881-2253

Part Number	Cage Code	Manufacturer
0495-58	02769	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
0495-58	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
1034-D240-11	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
14320	11599	TRIUMPH ENGINE CONTROL SYSTEMS, LLC
293-1022P36	49956	RAYTHEON COMPANY DBA RAYTHEON
293M0007P020	49956	RAYTHEON COMPANY DBA RAYTHEON
311-0383-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
311-0383-000	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
42P11699-7080	94135	NAVAL ORDNANCE STANDARDS
480 735	77294	PIPER AIRCRAFT INC.
51580-8	53397	NUMAX ELECTRONICS INC
5315008812253	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
589746	24617	GENERAL MOTORS CORP
6514842	24617	GENERAL MOTORS CORP
6514842	70168	AEROPRODUCTS OPNS OF ALLISON DIV OF GENERAL MOTORS CORP
6695-694	11871	RECON/OPTICAL, INC.
6695-694	80294	BOURNS INSTRUMENTS INC
69932-8S	73030	HAMILTON SUNDSTRAND CORPORATION
79-028-125-0500	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
79-028-125-0500	13257	AMERACE LTD
79R5000-125-0500	72962	HARVARD INDUSTRIES INC
930769	07524	DOVER FLUID MANAGEMENT, INC. DBA BLACKMER
F126-4-8L	72314	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
M1927L	61208	TWIN DISC INCORPORATED
M193-57	54418	MILTOPE CORPORATION
MS16562-221	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16562-221	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS171526	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS171526	97499	BELL HELICOPTER TEXTRON INC.
MS171526	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS561C4-8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NASM16562	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
PS125-0500CRPA028	K1368	MINISTRY OF DEFENCE, DE&S DEFENCECLOTHING TEAM
SF-10565 ITEM 0	16712	SIEMENS DEMAG DELAVAL TURBOMACHINERY, INC.
SMC149553-46	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-881-2253

Compare

Related Products | NSN 5315-00-881-2253

5315-00-881-2705, 5315-00-881-3218, 5315-00-881-3222, 5315-00-881-3223, 5315-00-881-3243

Technical Data | NSN 5315-00-881-2253

Characteristic	Specifications
MATERIAL	STEEL COMP 410 OR STEEL COMP 420 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	43.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL
STYLE DESIGNATOR	K174 SLOTTED
OVERALL LENGTH	0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM
DIAMETER	0.131 INCHES MINIMUM AND 0.135 INCHES MAXIMUM
MATERIAL THICKNESS	0.028 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5315-00-881-2253

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	094380	COTTER PINS/SPRING COTTERS IRON
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-881-2253

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
