NSN 5315-00-868-1931 SL191105, SL19110-5, LW17491
Product Details | QUICK RELEASE PIN

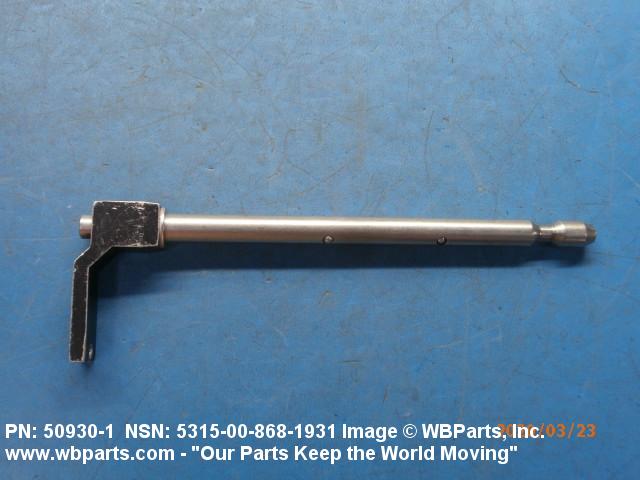

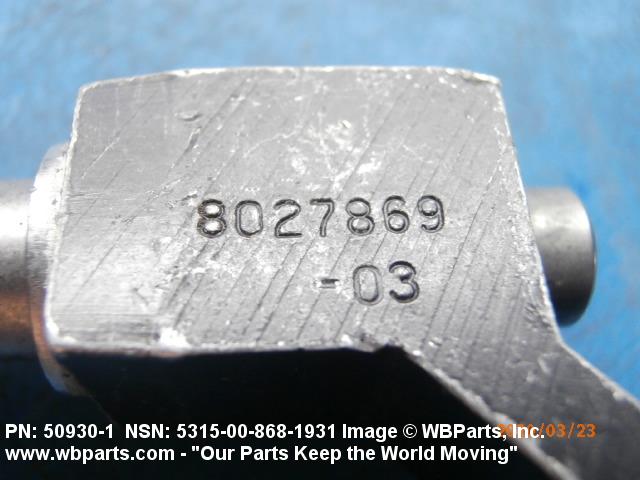

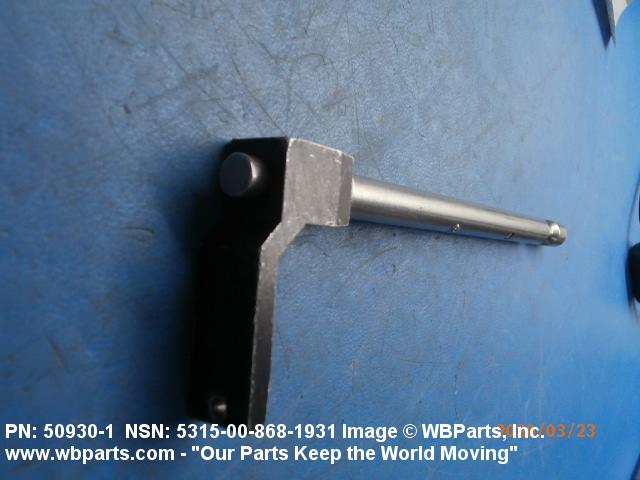

5315-00-868-1931 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: SL191105, SL19110-5, LW17491, LW1749-1, 509301, 50930-1, 5315-00-868-1931, 00-868-1931, 5315008681931, 008681931
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-868-1931 | 08323 ( PIN, QUICK RELEASE ) |
Drawings & Photos | NSN 5315-00-868-1931
Demand History | NSN 5315-00-868-1931
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 50930-1 | 2021-08-220 | 86 | DIBBS |
| SL19110-5 | 2021-08-220 | 86 | DIBBS |
| 50930-1 | 2021-02-59 | 12 | DIBBS |
| SL19110-5 | 2021-02-59 | 12 | DIBBS |
| 50930-1 | 2020-11-317 | 25 | DIBBS |
| SL19110-5 | 2020-11-317 | 25 | DIBBS |
| 50930-1 | 2020-10-281 | 92 | DIBBS |
| SL19110-5 | 2020-10-281 | 92 | DIBBS |
| 50930-1 | 2020-08-233 | 102 | DIBBS |
| SL19110-5 | 2020-08-233 | 102 | DIBBS |
| 50930-1 | 2020-06-174 | 133 | DIBBS |
| SL19110-5 | 2020-06-174 | 133 | DIBBS |
| 5315-00-868-1931 | 2020-03-63 | 1 | United States |
| 509301 | 2013-11-319 | 50 | FR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-868-1931
Related Products | NSN 5315-00-868-1931
Technical Data | NSN 5315-00-868-1931
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SHANK |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE SHANK |
| SURFACE TREATMENT | PASSIVATE SHANK |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK |
| STYLE DESIGNATOR | Q244 L HANDLE |
| SHANK DIAMETER | 0.3720 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM |

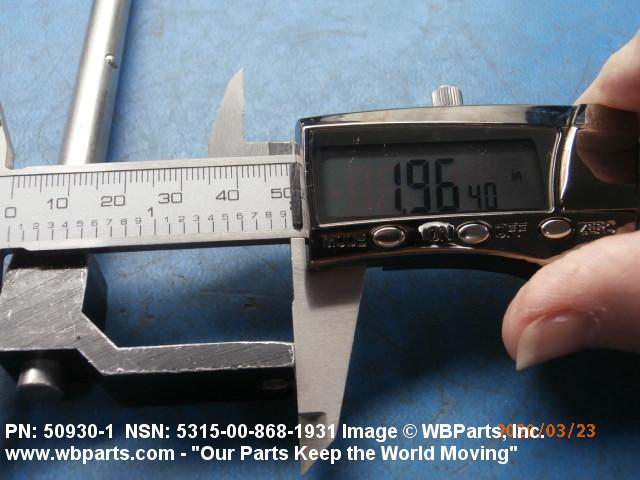

| GRIP LENGTH | 2.000 INCHES MINIMUM AND 2.020 INCHES MAXIMUM |

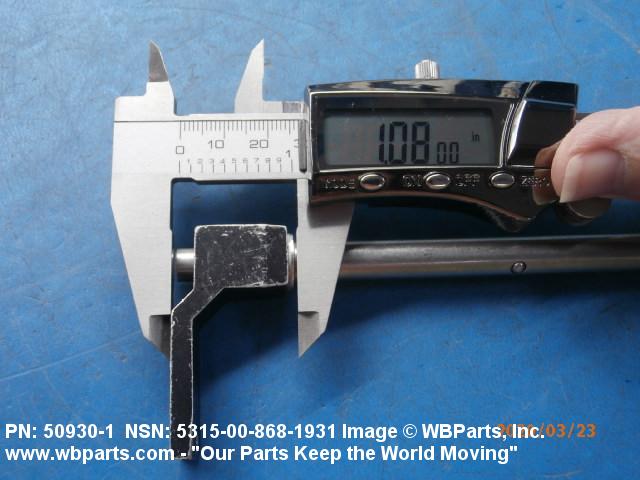

| SHOULDER TO HEAD END DISTANCE | 1.370 INCHES MINIMUM AND 1.470 INCHES MAXIMUM |
| PIN CENTER TO HANDLE END DISTANCE | 1.690 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 1.812 INCHES NOMINAL |
| ACTUATION TYPE | PUSH |

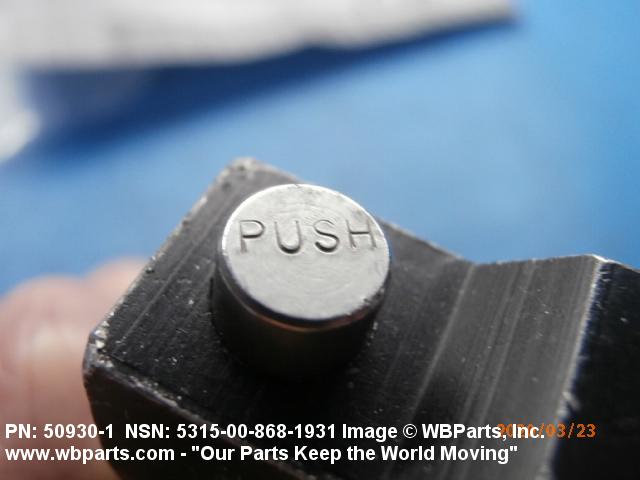

| ACTUATION METHOD | PUSH BUTTON |

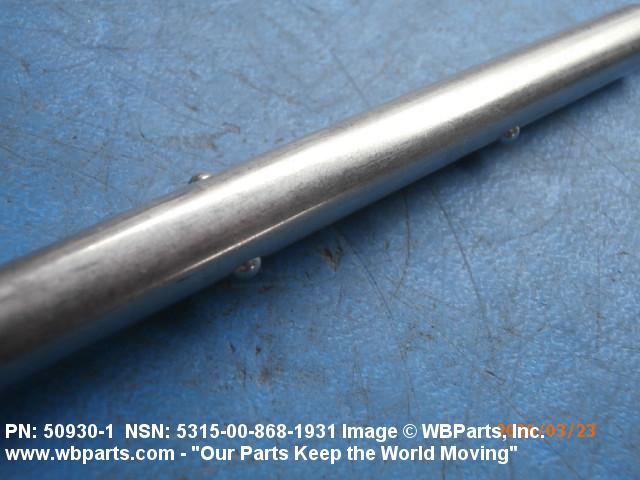

| DETENT QUANTITY | 4 |
| PIN ATTACHMENT TYPE | RING |
