Product Details | COTTER PIN

5315-00-865-5390 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.

Part Alternates: MS24665370, MS24665-370, 5315-00-865-5390, 00-865-5390, 5315008655390, 008655390

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1962 00-865-5390

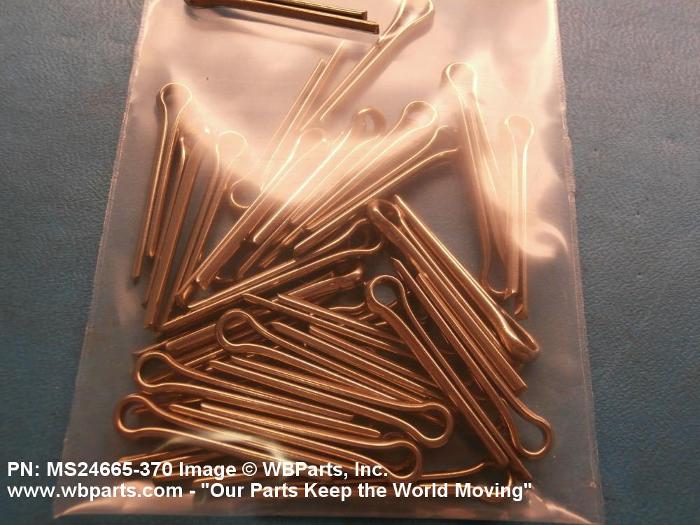

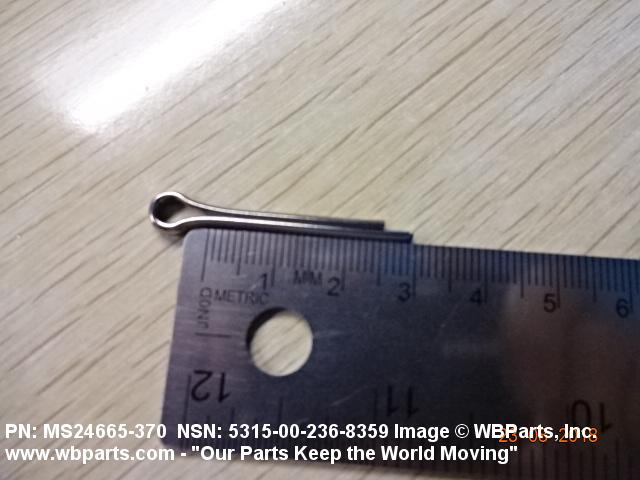

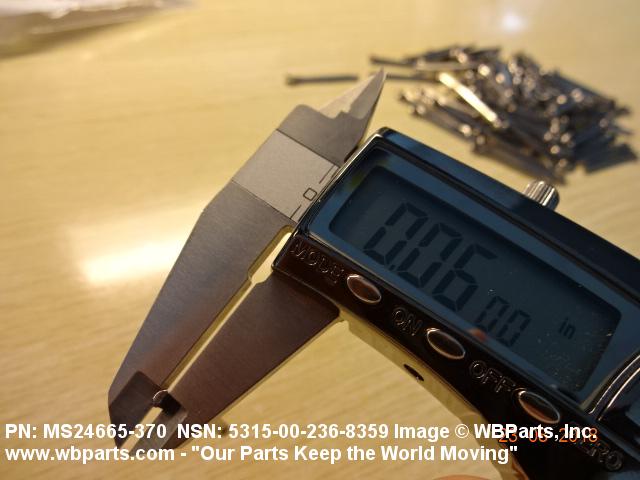

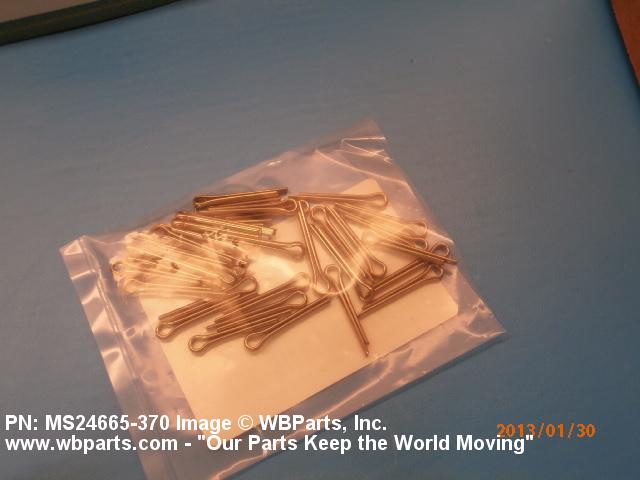

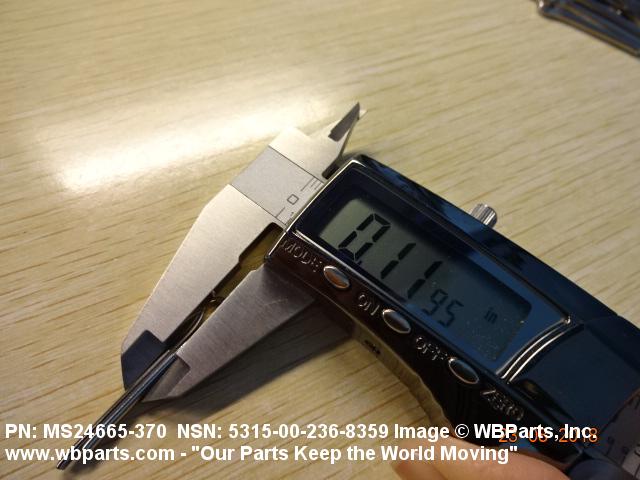

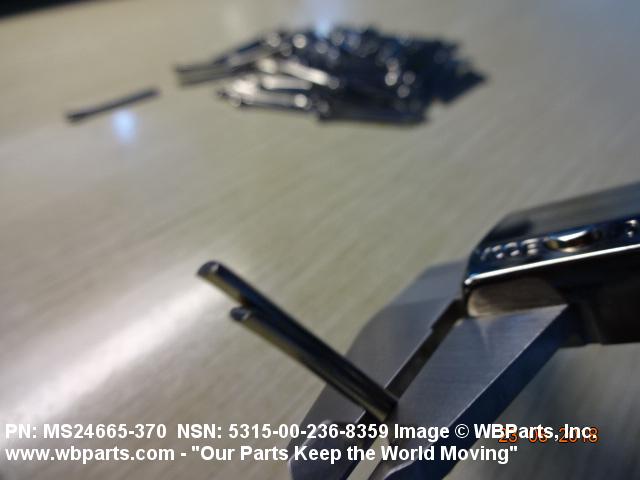

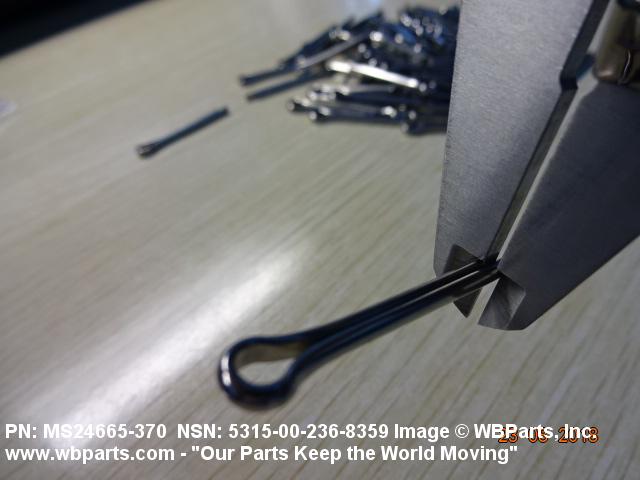

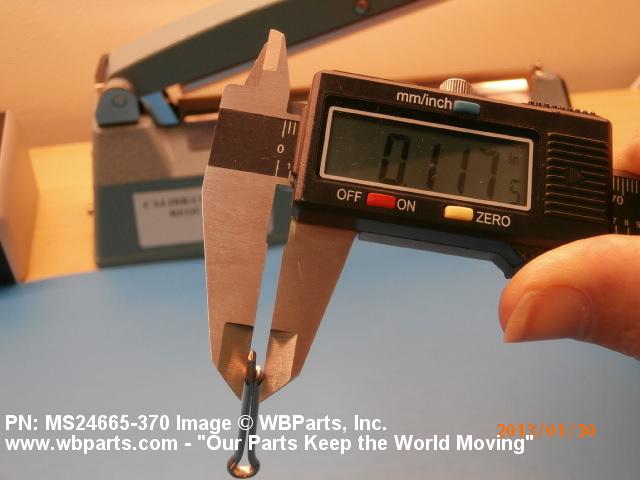

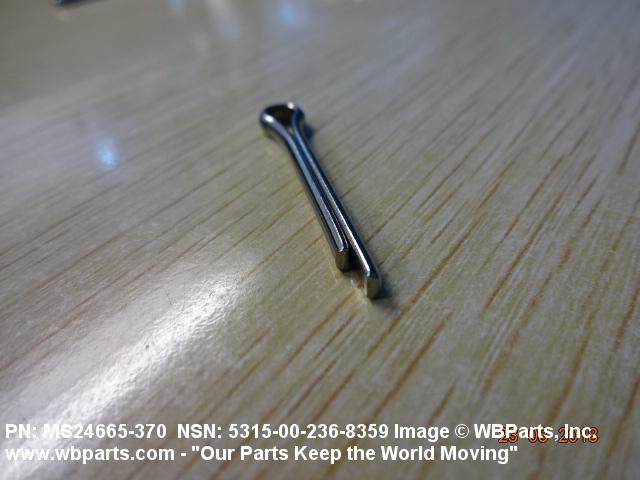

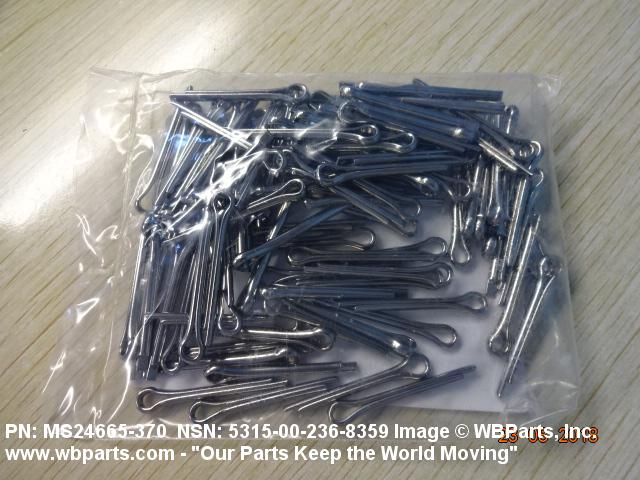

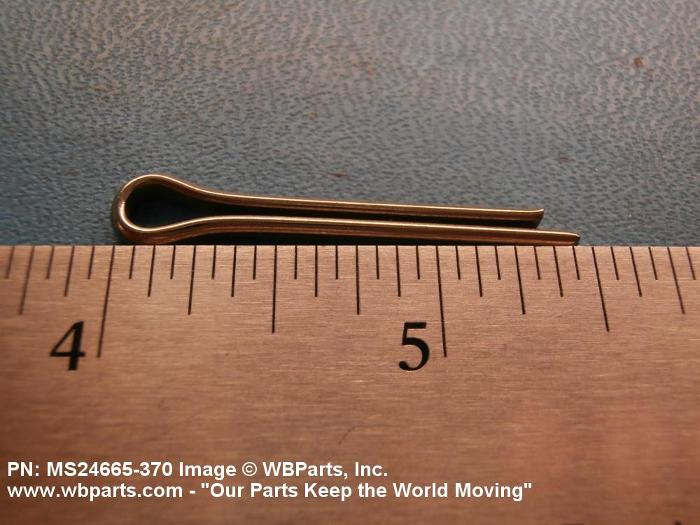

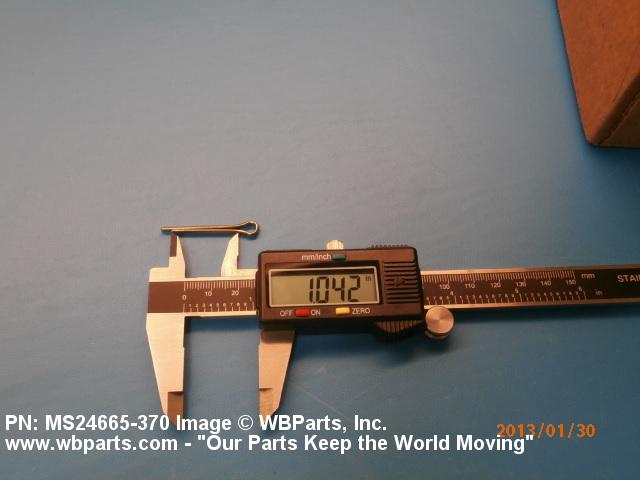

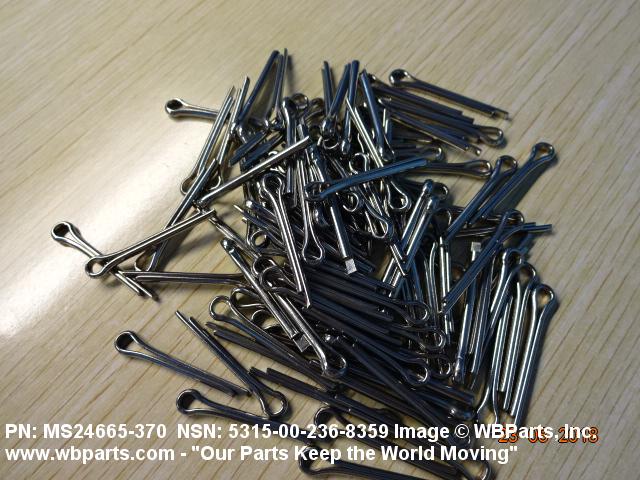

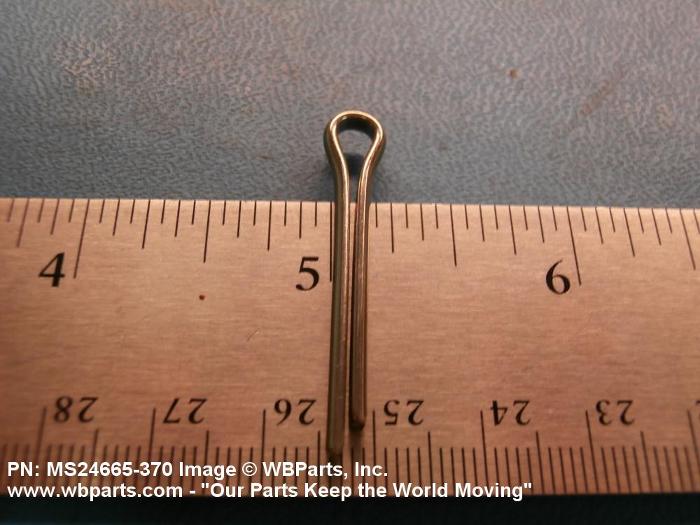

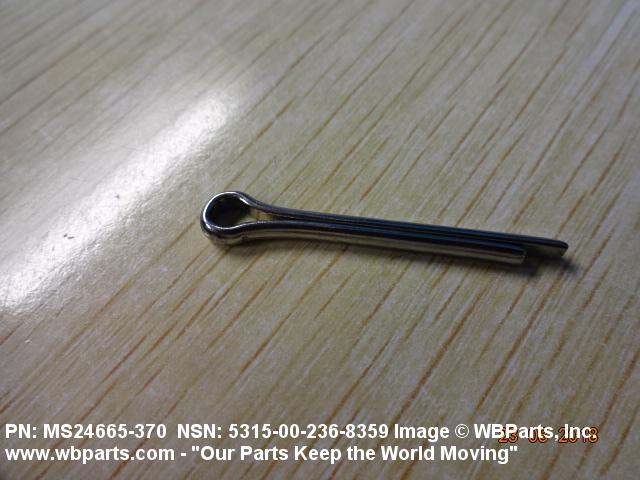

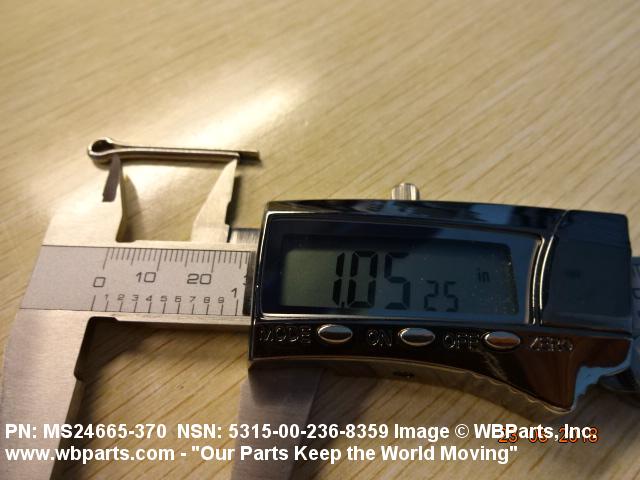

Drawings & Photos | NSN 5315-00-865-5390


Demand History | NSN 5315-00-865-5390

Part Number Request Date QTY Origin
MS24665370 2024-01-31 18 United States
MS24665370 2021-08-235 500 SG
MS24665370 2020-10-296 170 US
MS24665370 2019-10-290 1 Poland
5315-00-865-5390 2019-09-267 6 United States
MS24665-370 2019-03-66 96 US
MS24665370 2018-10-289 144 United States
MS24665370 2018-01-23 160 United States
MS24665370 2017-10-284 100 US
MS24665370 2014-12-336 132 US
MS24665370 2014-05-135 1800 SE
MS24665-370 2014-03-71 69 United States
MS24665370 2013-11-331 2 United States
MS24665-370 2013-05-134 100 CZ
MS24665370 2013-01-25 36 United States
MS24665370 2013-01-07 36 United States
MS24665-370 2012-07-191 360 Canada
MS24665370 2012-04-114 3 Australia
MS24665370 2011-07-201 400 TR
MS24665370 2011-03-69 1960 US
5315-00-865-5390 2009-12-338 3 US
MS24665370 2009-07-203 16 US
MS24665370 2009-03-71 3000 US
5315-00-865-5390 2008-04-120 30 US

Cross Reference | NSN 5315-00-865-5390

Part Number Cage Code Manufacturer
MS24665-370 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-865-5390

Technical Data | NSN 5315-00-865-5390

Characteristic Specifications
MATERIAL STEEL COMP 301 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
STYLE DESIGNATOR A1 STANDARD
DIAMETER 0.125 INCHES NOMINAL
UNDERLOOP LENGTH 1.000 INCHES NOMINAL
POINT TYPE ANY ACCEPTABLE
MANUFACTURERS CODE 96906
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS24665-370

Restrictions/Controls & Freight Information | NSN 5315-00-865-5390

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 094380 COTTER PINS/SPRING COTTERS IRON
Less than car load rating U 50
Less than truck load rating U 50.0
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
