NSN 5315-00-847-5677 MS16555626, MS16555-626, B69757

Product Details | HEADLESS STRAIGHT PIN

5315-00-847-5677 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.

Part Alternates: MS16555626, MS16555-626, B69757, D554257RBPC35, D554-257RBPC35, 601864C1 , 10122777 , 5315-00-847-5677, 00-847-5677, 5315008475677, 008475677

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-847-5677	02390 ( PIN, STRAIGHT, HEADLESS )

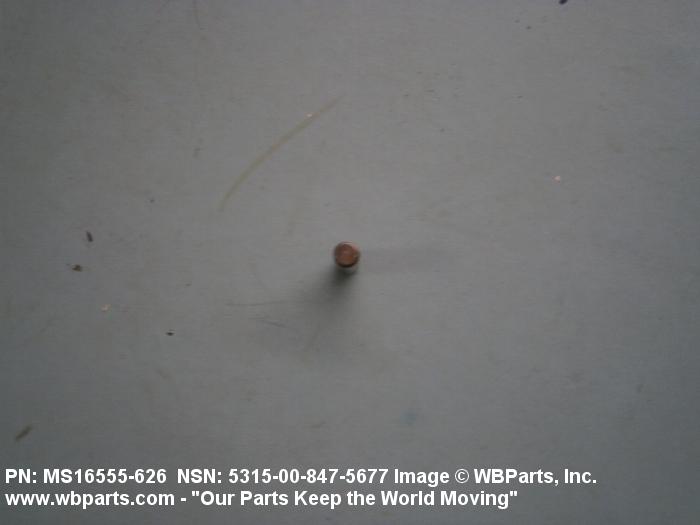

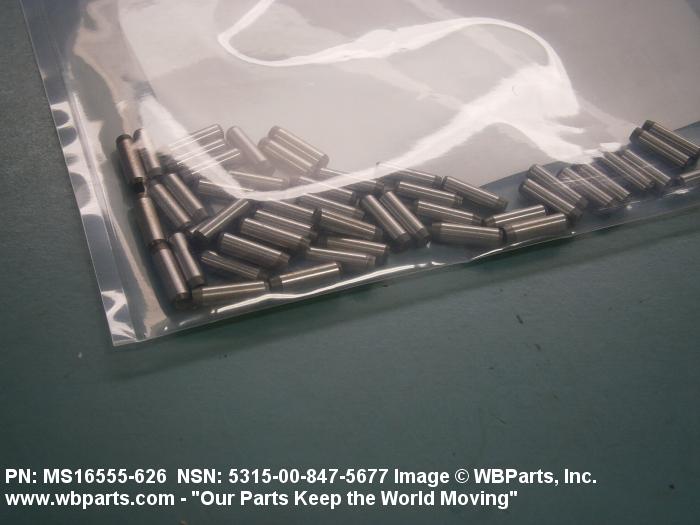

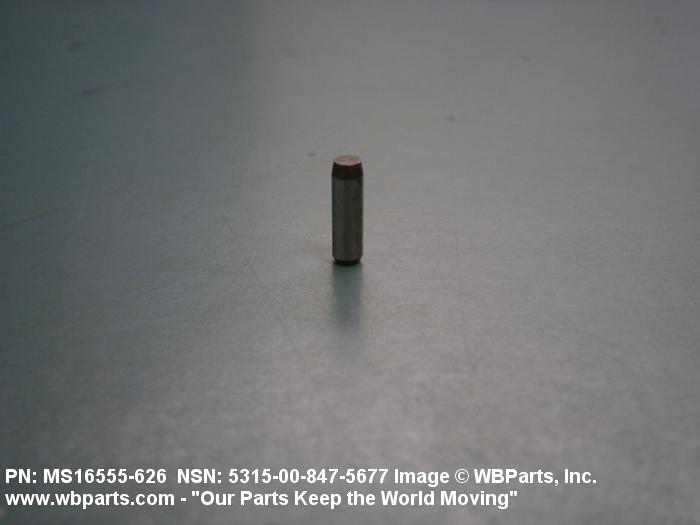

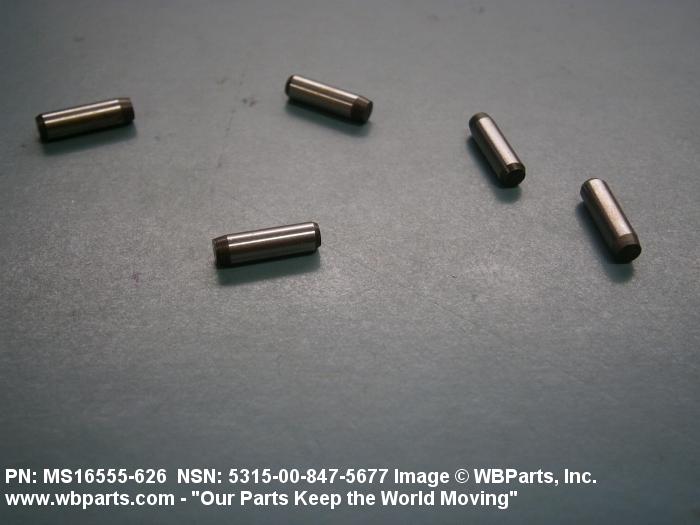

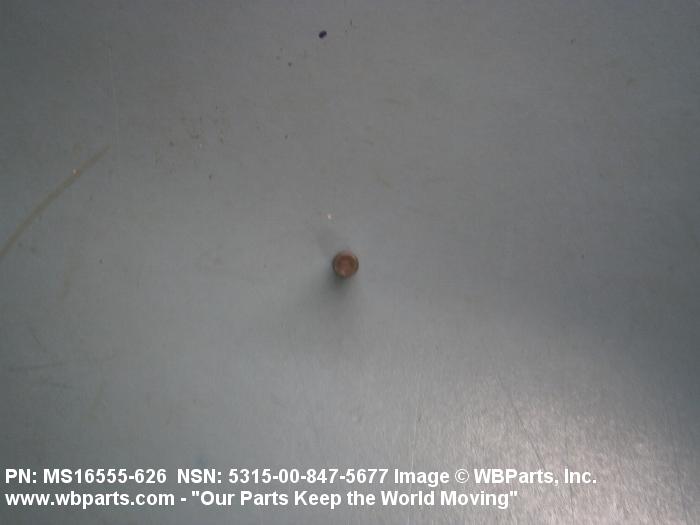

Drawings & Photos | NSN 5315-00-847-5677

Part Number	Request Date	QTY	Origin
5315-00-847-5677	2024-05-134	2176	DIBBS
5315-00-847-5677	2024-05-126	2176	DIBBS
MS16555626	2023-10-303	180	Korea
MS16555626	2023-03-79	170	Korea
5315-00-847-5677	2020-11-308	2054	DIBBS
MS16555-626	2019-08-232	1300	South Korea
MS16555626	2019-01-11	1	FR
MS16555626	2018-08-214	700	United States
MS16555626	2018-08-214	1400	United States
MS16555626	2017-02-32	110	Australia
MS16555626	2017-01-16	88	Australia
MS16555626	2017-01-11	400	United States
MS16555626	2016-07-189	1000	United States
MS16555626	2016-07-189	2000	United States
MS16555626	2016-04-118	500	US
MS16555626	2016-04-118	1000	US
MS16555626	2016-04-118	2500	US
MS16555626	2016-04-118	5000	US
MS16555626	2016-04-112	1800	United States
5315-00-847-5677	2016-02-42	2500	DIBBS
MS16555626	2014-12-342	200	Australia
MS16555626	2013-06-156	20	Australia
MS16555626	2013-02-38	1000	US
MS16555626	2013-02-38	2000	US
MS16555626	2012-07-193	100	US
MS16555626	2012-07-193	500	US
MS16555626	2012-07-193	800	US
5315-00-847-5677	2011-08-230	100	US
5315-00-847-5677	2010-08-239	400	Australia
5315-00-847-5677	2010-07-207	25	United States
MS16555626	2010-03-67	2000	India
MS16555626	2009-12-342	8	US
5315-00-847-5677	2008-11-317	25	Canada
5315-00-847-5677	2008-07-192	100	US

Cross Reference | NSN 5315-00-847-5677

Part Number	Cage Code	Manufacturer
5315008475677	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
B69757	K0967	MBDA UK LTD
D554-257RBPC35	34228	L-3 COMMUNICATIONS CORPORATION DBA L-3 KEO
MS16555-626	03950	NAVAL INVENTORY CONTROL POINT MECHANICSBURG
MS16555-626	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16555-626	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-847-5677

Compare

Related Products | NSN 5315-00-847-5677

5315-00-847-5712, 5315-00-847-5751, 5315-00-847-6028, 5315-00-847-6034, 5315-00-847-6954

Technical Data | NSN 5315-00-847-5677

Characteristic	Specifications
MATERIAL	STEEL COMP 410 OR STEEL COMP 416 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	ASTM A493 ASSN STD 1ST MATERIAL RESPONSE OR ASTM A582 ASSN STD 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM OVERALL
SHEAR STRENGTH	1800 DOUBLE POUND
FIRST END STYLE	1 CHAMFERED

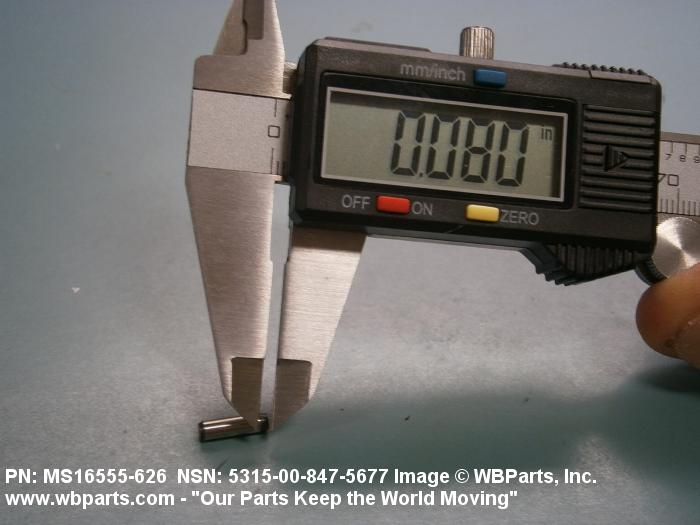

FIRST END TAPER LENGTH	0.080 INCHES NOMINAL
FIRST END TAPER ANGLE	4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM
SECOND END RELATIONSHIP WITH FIRST END	NOT IDENTICAL
SECOND END STYLE	4 RADIUS
SECOND END CORNER RADIUS	0.041 INCHES NOMINAL
SURFACE FINISH	16.0 MICROINCHES OUTSIDE DIAMETER

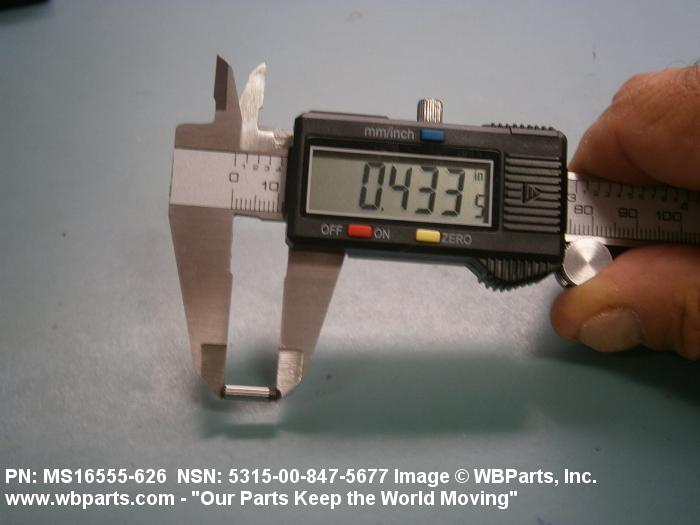

PIN OVERALL LENGTH	0.428 INCHES MINIMUM AND 0.448 INCHES MAXIMUM

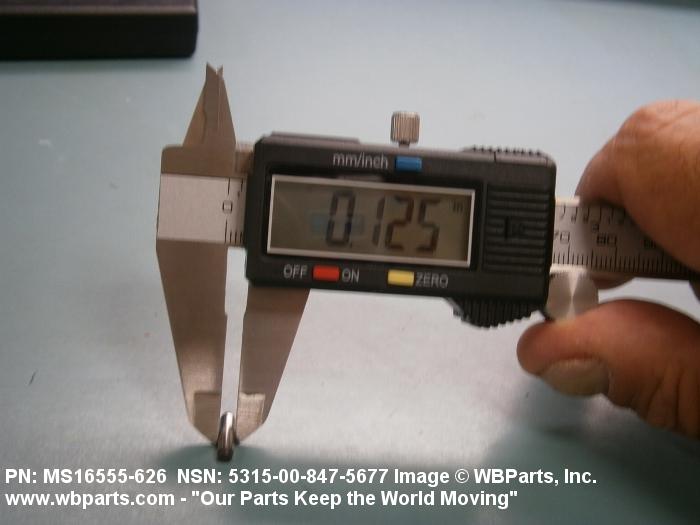

PIN OVERALL DIAMETER	0.1251 INCHES MINIMUM AND 0.1253 INCHES MAXIMUM
SPECIAL FEATURES	RADIUS END MAY BE CHAMFERED 25 DEG
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS16555-626

Restrictions/Controls & Freight Information | NSN 5315-00-847-5677

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	105000	DOWEL PINS I/S NOI IN BAG/BBL/BOXES
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	574	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5315-00-847-5677

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
