NSN 5315-00-843-7986 MS1656233, MS16562-33 , NAS561P48

Product Details | SPRING PIN

5315-00-843-7986 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.

Part Alternates: MS1656233, MS16562-33 , NAS561P48, NAS561P4-8 , F520281250500, F52-028-125-0500 , MILP10971TYPE1C0MP0SITI0NA , 10250C1, 10250C-1 , 41404055, 414-04-055 , 455532 , 520281250500, 52-028-125-0500 , 590281250500, 59-028-125-0500 , 83601400, 836014-00 , 990331-765 , 5315-00-843-7986, 00-843-7986, 5315008437986 , 008437986, 990331765

Hardware and Abrasives | Nails, Machine Keys, and Pins

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-843-7986	02389 ( PIN, SPRING )

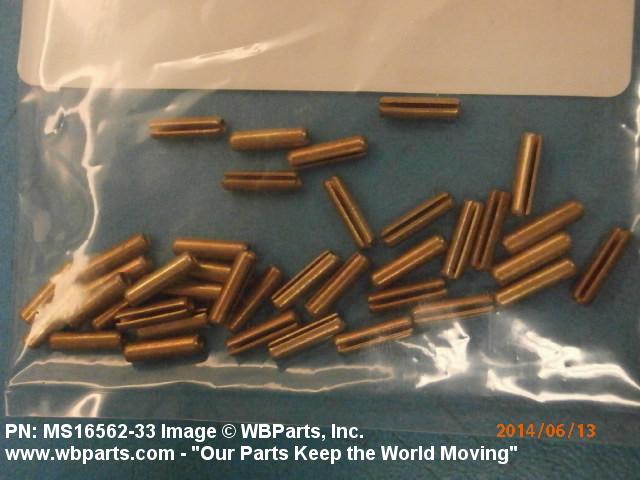

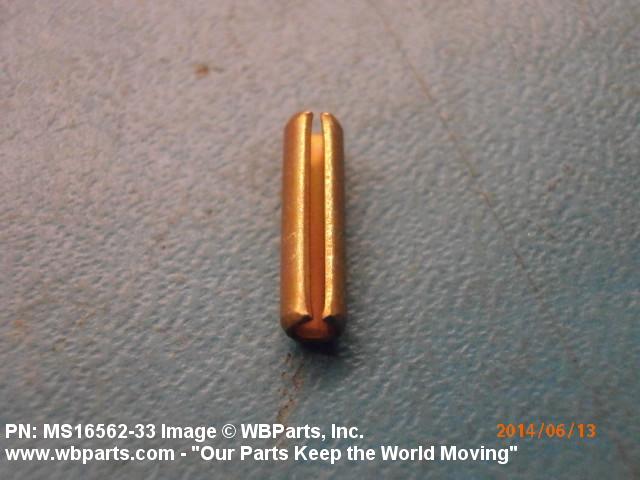

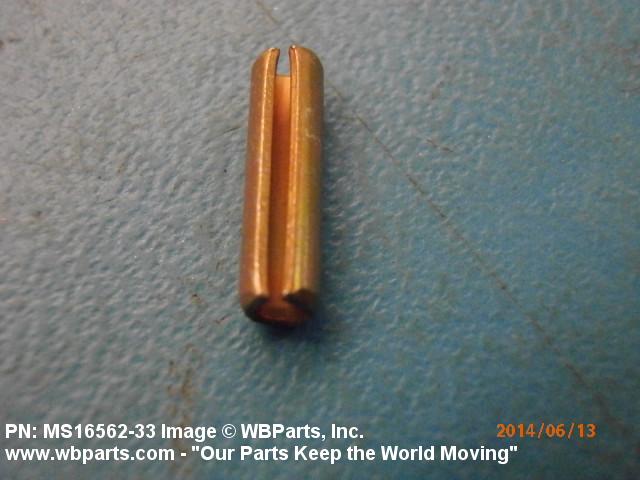

Drawings & Photos | NSN 5315-00-843-7986

Part Number	Request Date	QTY	Origin
5315-00-843-7986	2020-06-156	654	DIBBS
5315-00-843-7986	2020-05-148	654	DIBBS
NAS561P48	2017-12-335	10	Thailand
MS1656233	2015-09-258	30	US
MS1656233	2015-07-196	150	US
MS1656233	2014-06-161	5	United States
MS16562-33	2014-03-71	46	United States
MS16562-33	2013-12-336	20	US
MS16562-33	2013-12-336	20	US
5315-00-843-7986	2012-10-298	50	AR
MS1656233	2012-02-57	100	US
MS16562-33	2011-11-332	2	United States
MS1656233	2011-01-14	530	US
MS1656233	2010-05-144	10	United States
NAS561P48	2009-12-362	10	US
5315-00-843-7986	2009-11-331	1089	DIBBS
NAS561P48	2009-09-251	30	us
5315-00-843-7986	2009-06-169	55	United States
5315-00-843-7986	2009-04-98	50	US
MS1656233	2008-04-99	110	us
5315-00-843-7986	2008-03-67	200	US
5315-00-843-7986	2008-03-65	225	US

Cross Reference | NSN 5315-00-843-7986

Part Number	Cage Code	Manufacturer
10250C-1	2C085	COLT CANADA CORPORATION
414-04-055	01205	LOGETRONICS CORPORATION
455532	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
52-028-125-0500	72962	HARVARD INDUSTRIES INC
5315008437986	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
59-028-125-0500	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
836014-00	32345	DEFENSE REDUCTION AGENCY
990331-765	02734	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
990331-765	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
F52-028-125-0500	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
F52-028-125-0500	72962	HARVARD INDUSTRIES INC
MILP10971TYPE1C0MP0SITI0NA	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS16562-33	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS16562-33	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS16562-33	H0910	VEREENIGDE INGENIEURSBUREAUX 'VIBA'N.V.
NAS561P4-8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5315-00-843-7986

Compare

Related Products | NSN 5315-00-843-7986

5315-00-843-7987, 5315-00-843-7988, 5315-00-843-8055, 5315-00-843-8126, 5315-00-843-8224

Technical Data | NSN 5315-00-843-7986

Characteristic	Specifications
MATERIAL	STEEL COMP 1070 OR STEEL COMP 1074 OR STEEL COMP 1080 OR STEEL COMP 1086 OR STEEL COMP 1095 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	46.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL
SHEAR STRENGTH	2100 DOUBLE POUND

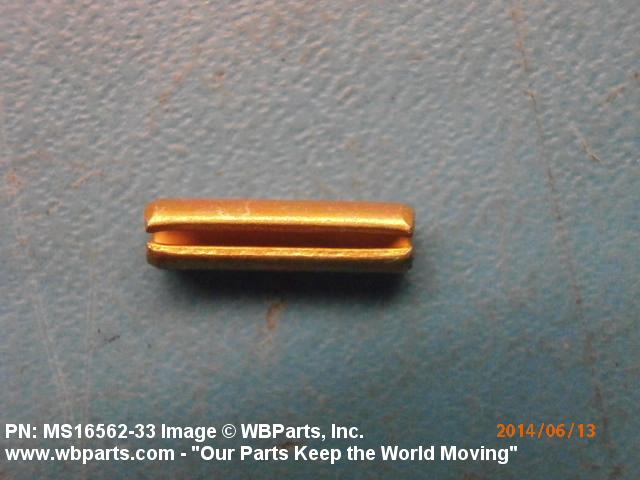

STYLE DESIGNATOR	K174 SLOTTED

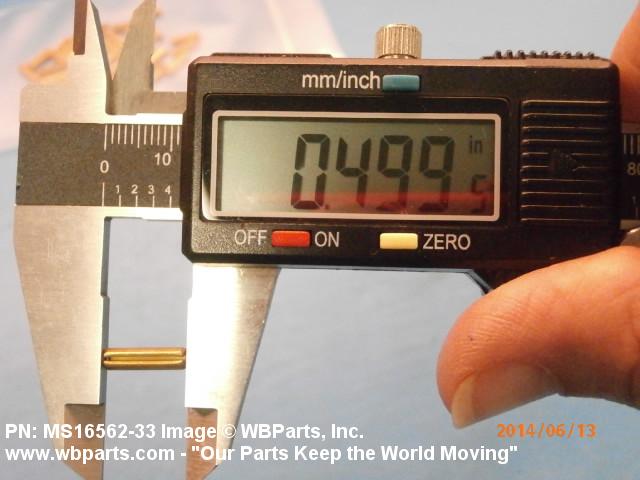

OVERALL LENGTH	0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM

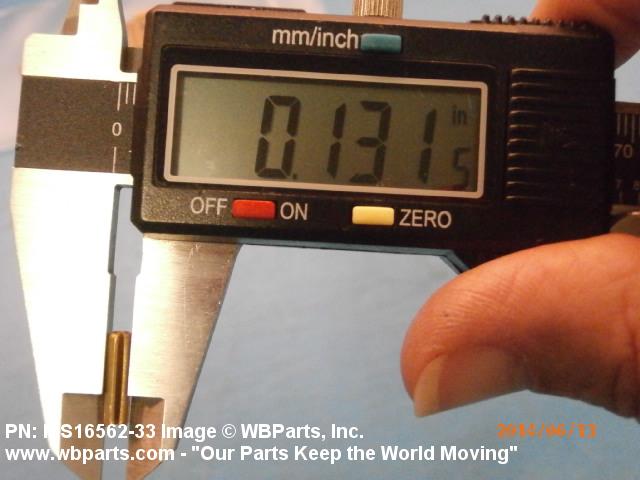

DIAMETER	0.131 INCHES MINIMUM AND 0.135 INCHES MAXIMUM

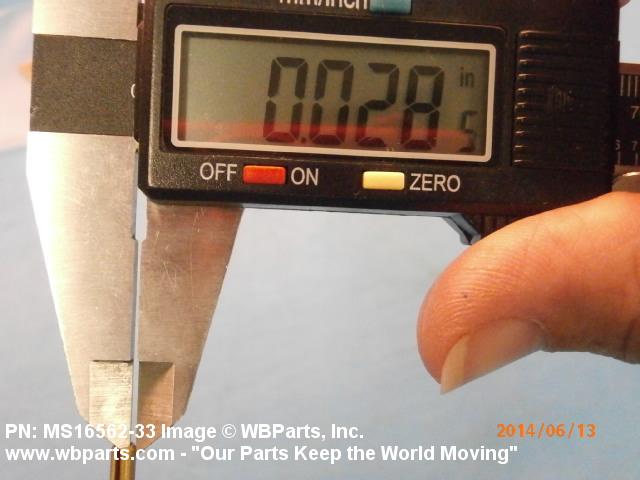

MATERIAL THICKNESS	0.028 INCHES NOMINAL
