NSN 5315-00-843-7187 MS9048038, MS9048-038, D520180780500
Product Details | SPRING PIN
5315-00-843-7187 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS9048038, MS9048-038, D520180780500, D52-018-078-0500, 5315-00-843-7187, 00-843-7187, 5315008437187, 008437187
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-843-7187 | 02389 ( PIN, SPRING ) |

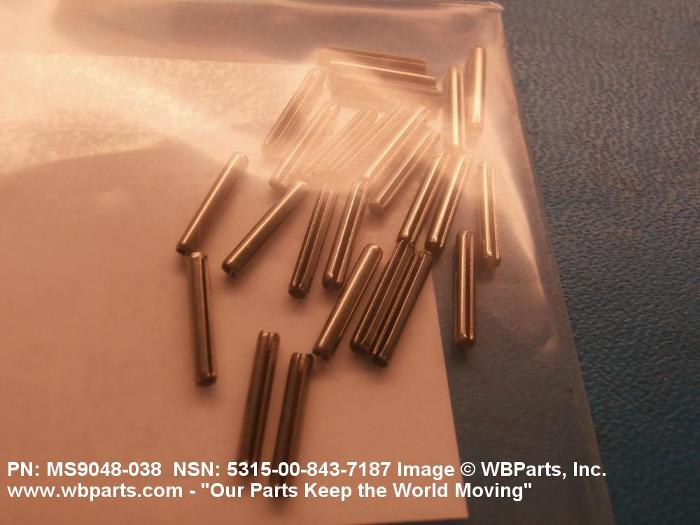

Drawings & Photos | NSN 5315-00-843-7187
Demand History | NSN 5315-00-843-7187
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS9048038 | 2012-10-278 | 25 | United States |
| MS9048038 | 2012-08-222 | 12 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-843-7187
Technical Data | NSN 5315-00-843-7187
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1074 OR STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5120 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5121 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| DIAMETER | 0.078 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.018 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS9048-038 |
Restrictions/Controls & Freight Information | NSN 5315-00-843-7187
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
