NSN 5315-00-839-8218 MS1655547, MS16555-47, 53158325099
Product Details | HEADLESS STRAIGHT PIN

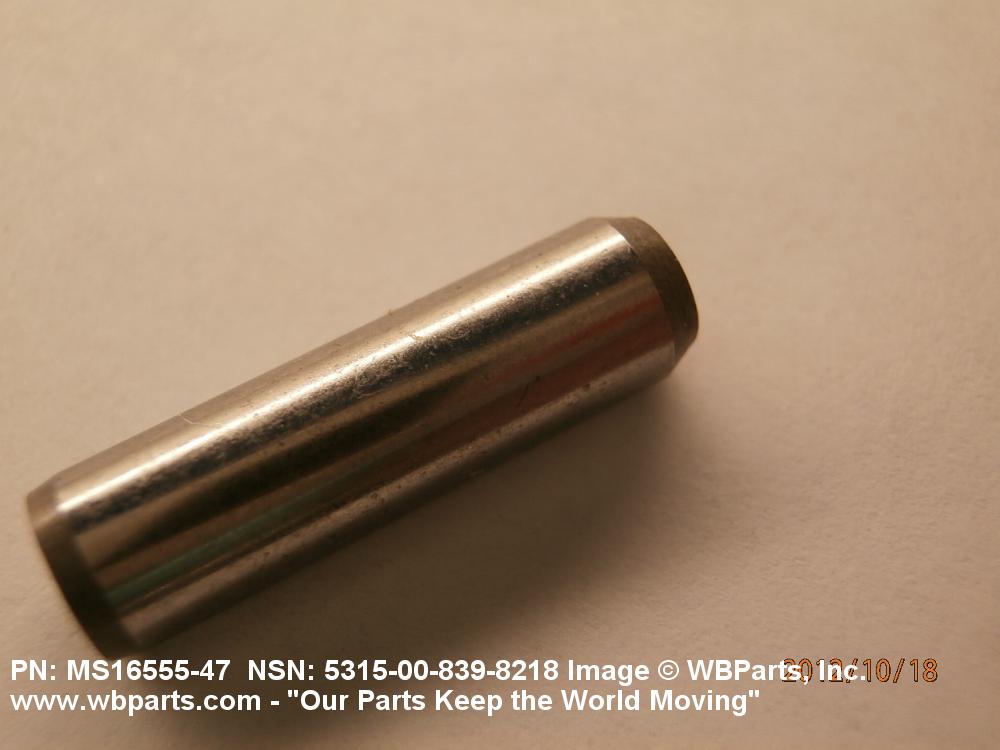

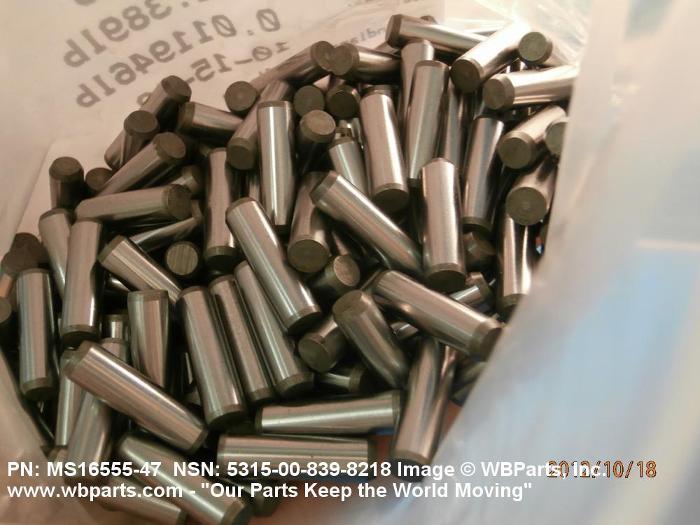

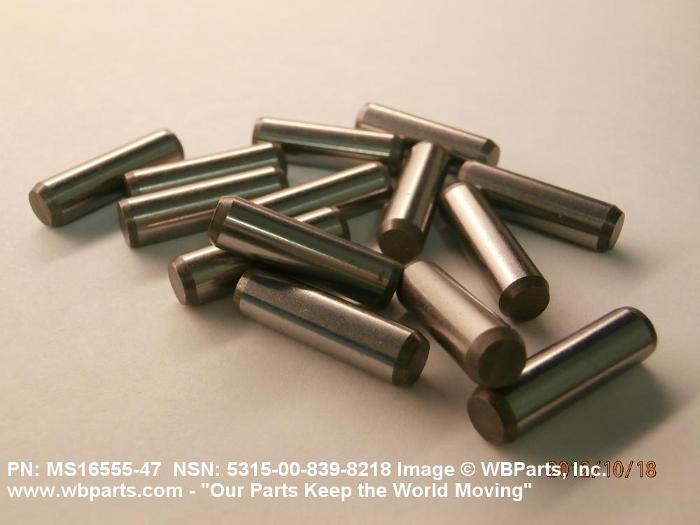

5315-00-839-8218 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: MS1655547, MS16555-47, 53158325099, 53158398218 , 5315-00-839-8218, 00-839-8218, 5315008398218, 008398218
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-839-8218 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-00-839-8218
Demand History | NSN 5315-00-839-8218
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-839-8218 | 2020-02-38 | 584 | DIBBS |
| 5315-00-839-8218 | 2019-06-176 | 584 | DIBBS |
| 5315-00-839-8218 | 2019-02-41 | 584 | DIBBS |
| 5315-00-839-8218 | 2018-11-332 | 503 | DIBBS |
| 5315-00-839-8218 | 2018-11-318 | 859 | DIBBS |
| 5315-00-839-8218 | 2018-11-305 | 859 | DIBBS |
| 5315-00-839-8218 | 2016-06-181 | 477 | DIBBS |
| 5315-00-839-8218 | 2016-05-132 | 477 | DIBBS |
| MS1655547 | 2015-02-49 | 2 | United States |
| 5315-00-839-8218 | 2012-10-277 | 200 | France |
| MS1655547 | 2011-07-188 | 100 | US |
| MS1655547 | 2011-01-24 | 160 | US |
| MS1655547 | 2010-12-362 | 50 | US |
| 5315-00-839-8218 | 2010-04-99 | 633 | DIBBS |
| 5315-00-839-8218 | 2010-01-15 | 2145 | DIBBS |
| 5315-00-839-8218 | 2009-11-307 | 1642 | DIBBS |
| MS1655547 | 2009-10-274 | 1000 | SE |
| 5315-00-839-8218 | 2009-06-152 | 500 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-839-8218
Related Products | NSN 5315-00-839-8218
Technical Data | NSN 5315-00-839-8218
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A29 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 47.0 ROCKWELL C MINIMUM AND 58.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 12800 DOUBLE POUND |

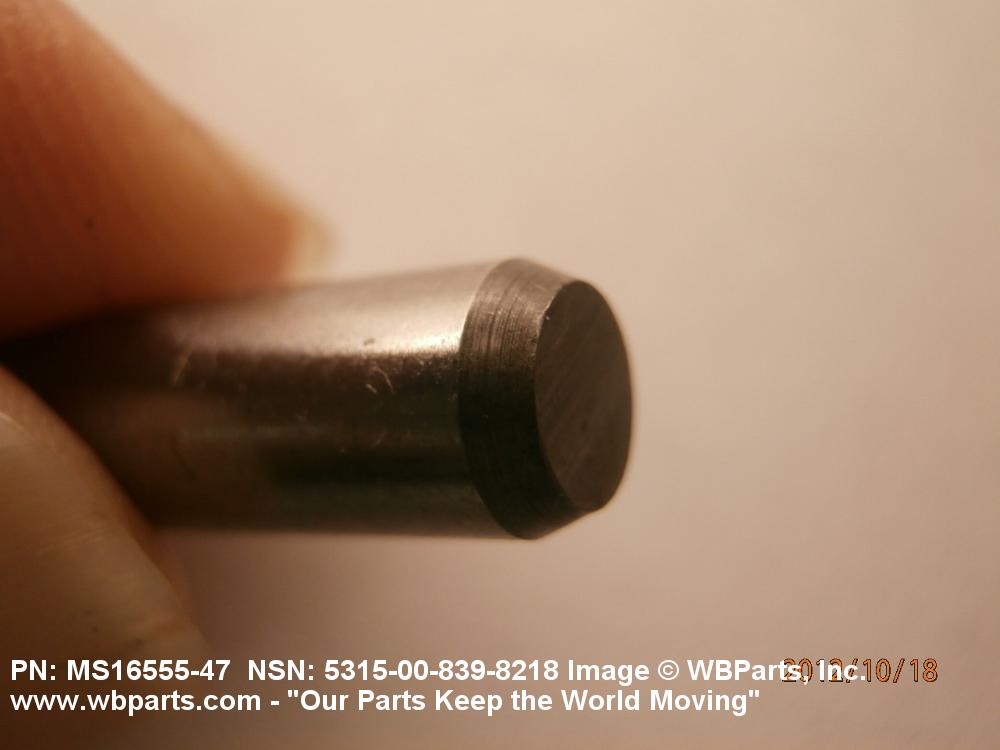

| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.162 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 4.0 DEGREES MINIMUM AND 16.0 DEGREES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |

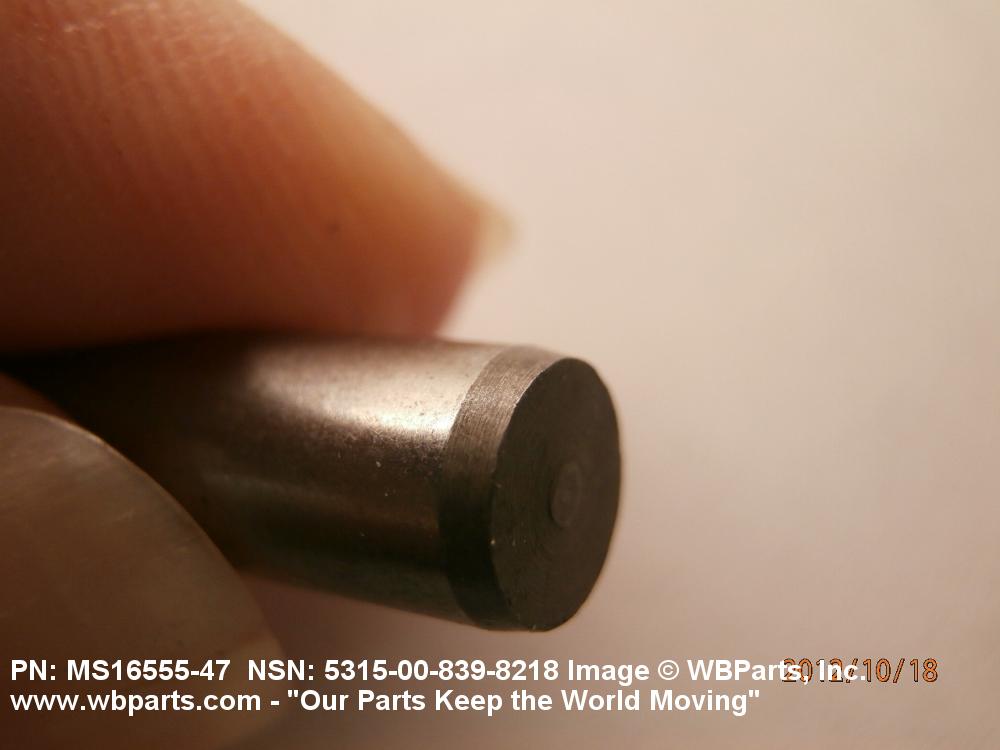

| SECOND END STYLE | 4 RADIUS |
| SECOND END CORNER RADIUS | 0.083 INCHES MAXIMUM |
| SURFACE FINISH | 16.0 MICROINCHES OUTSIDE DIAMETER |

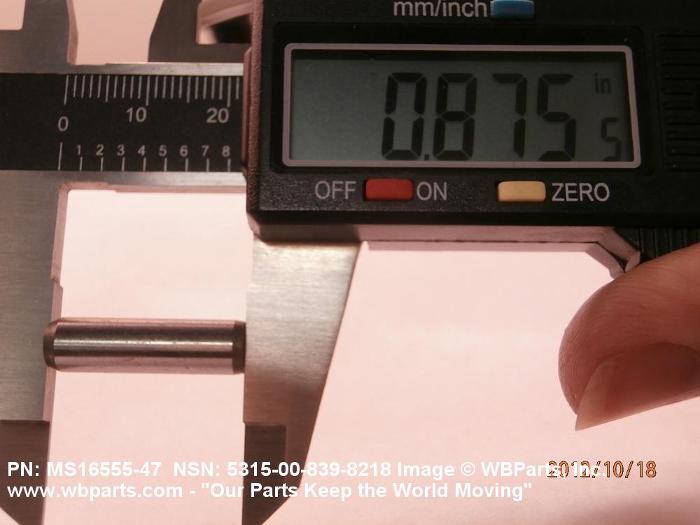

| PIN OVERALL LENGTH | 0.865 INCHES MINIMUM AND 0.885 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.2501 INCHES MINIMUM AND 0.2503 INCHES MAXIMUM |
| SPECIAL FEATURES | RADIUS END MAYBE CHAMFER 25 DEG |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16555-47 |
