NSN 5315-00-833-5879 NAS60723, NAS607-2-3, 00-833-5879
Product Details | HEADLESS STRAIGHT PIN
5315-00-833-5879 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: NAS60723, NAS607-2-3, 5315-00-833-5879, 00-833-5879, 5315008335879, 008335879
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-833-5879 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

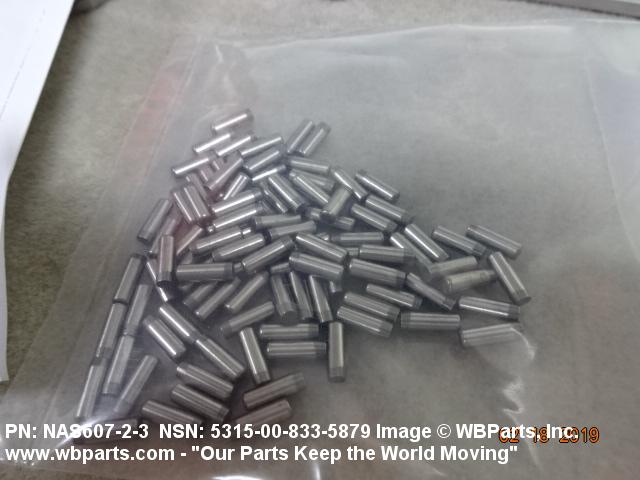

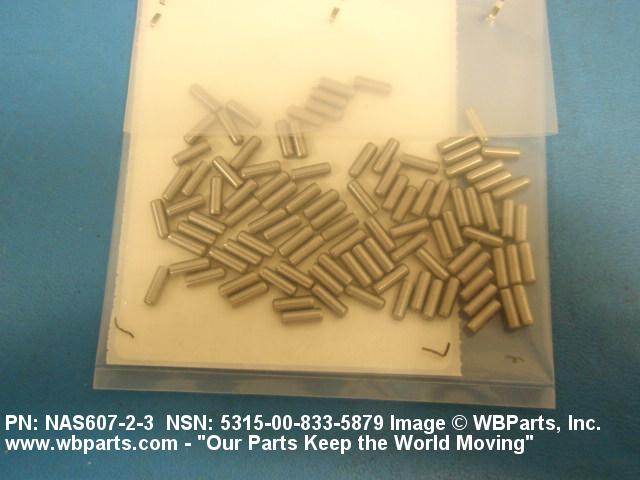

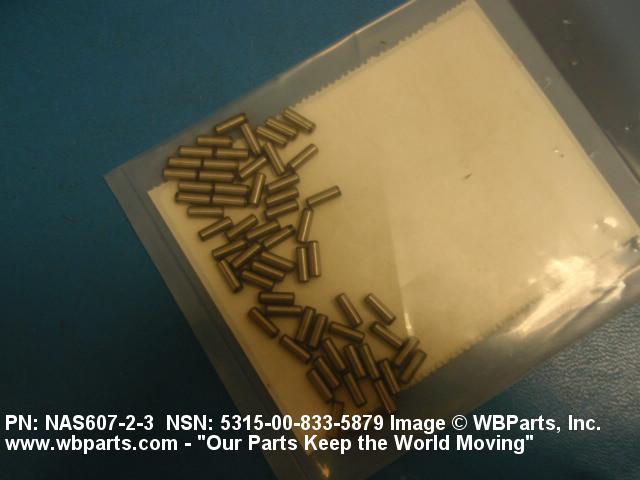

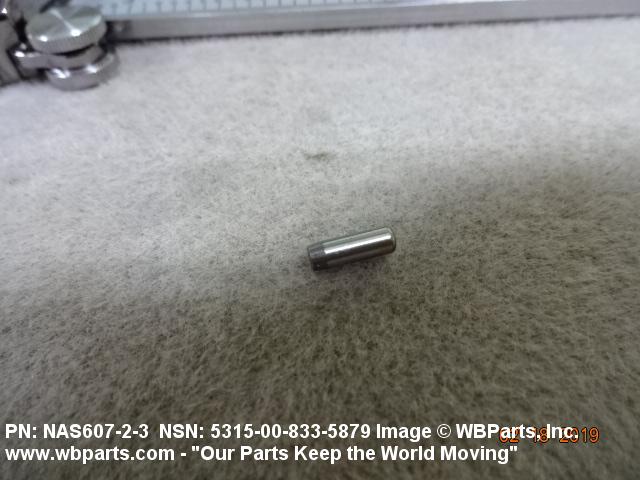

Drawings & Photos | NSN 5315-00-833-5879
Demand History | NSN 5315-00-833-5879
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS60723 | 2021-08-236 | 155 | United States |
| 5315-00-833-5879 | 2021-01-25 | 500 | United States |
| NAS60723 | 2019-01-29 | 100 | United States |
| NAS60723 | 2018-09-255 | 250 | United States |
| NAS60723 | 2017-10-276 | 300 | United States |
| NAS60723 | 2014-03-70 | 32 | US |
| 5315-00-833-5879 | 2012-09-272 | 1000 | CN |
| NAS60723 | 2012-08-241 | 500 | HK |
| NAS60723 | 2009-12-337 | 60 | United States |
| NAS60723 | 2009-11-314 | 160 | United States |
Cross Reference | NSN 5315-00-833-5879
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS607-2-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-833-5879
Technical Data | NSN 5315-00-833-5879
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 60.0 ROCKWELL C MINIMUM AND 64.0 ROCKWELL C MAXIMUM OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.093 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 5.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 4 RADIUS |
| SECOND END CORNER RADIUS | 0.051 INCHES NOMINAL |

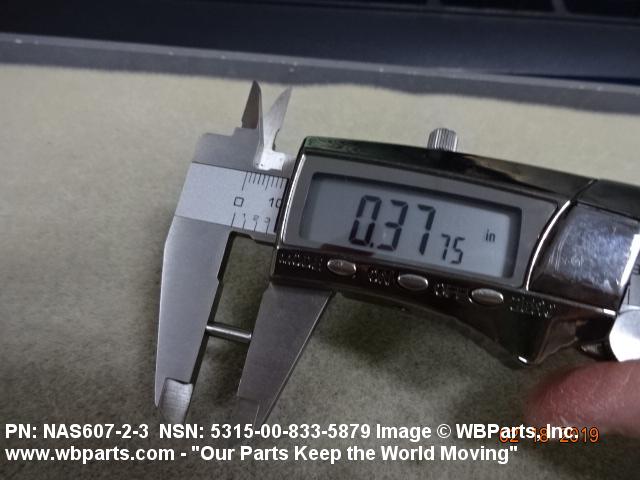

| PIN OVERALL LENGTH | 0.375 INCHES NOMINAL |

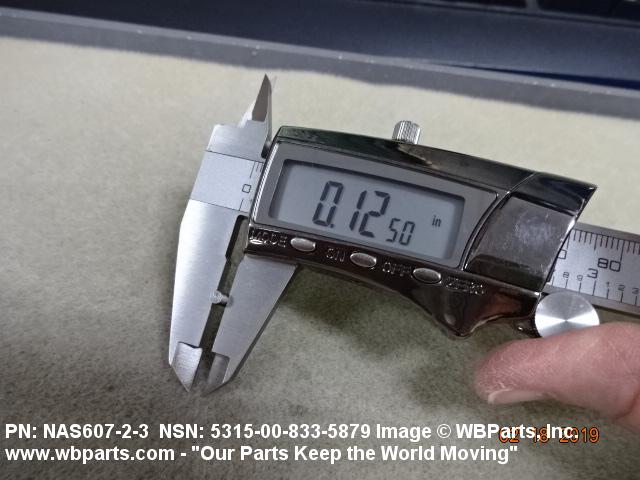

| PIN OVERALL DIAMETER | 0.1250 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
Restrictions/Controls & Freight Information | NSN 5315-00-833-5879
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105000 | DOWEL PINS I/S NOI IN BAG/BBL/BOXES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
