NSN 5315-00-823-8740 MS16562192, MS16562-192, MS16562194
Product Details | SPRING PIN
5315-00-823-8740 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS16562192, MS16562-192, MS16562194, MS16562-194, MS171434, MS171436, N533P006, NAS561C26, NAS561C2-6, NASM171401THRYNASM171900, A1136, BA982033, BA98203-3, H593160606, H593-160-606, SMB4473023, SM-B-447302-3, V3D10055PC11, DYRA189, F126266LV, F126-2-6-6LV, F12626L, F126-2-6L, F-8278 PC1M, F8278PC1M, F-8728 PC1M, F8728PC1M, G6036372, G603637-2, PL1887579 IT. 1 4, PL1887579IT14, PN10086, PN1008-6, PN150, PN-150, PS0620375CRPA012, PS062-0375CRPA012, RP62375SS, RP62-375SS, C35, C3-5, 794012-062-0500, 850064, 9903333, 990333-3, 418416-192, 50223418, 502234-18, 508C16352, 508C16-3-52, 0120620375, 012-062-0375, 04955, 0495-5, 119354, 136611E, 1366-1-1E, 137042, 13704-2, 1456410375, 14564-1-0375, 1885263 ITEM 35, 1885263ITEM35, 221-215-406, 241192, 24119-2, 2680040406, 268-004-0406, 3110419000, 311-0419-000, 31S0620375, 31S062-0375, 4000002005, 40-00002-005, 40553002016, 540071-004, 580060, 637, 6-37, 6722443, 680002, 699506S, 69950-6S, 74008008004, 74-00800-8004, 790120620360, 79-012-062-0360, 790120620375, 79-012-062-0375, 79012062375, 79-012-062-375, 5315-00-823-8740, 00-823-8740, 5315008238740, 7940120620500, 418416192, 221215406, 008238740, 540071004
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-823-8740 | 02389 ( PIN, SPRING ) |

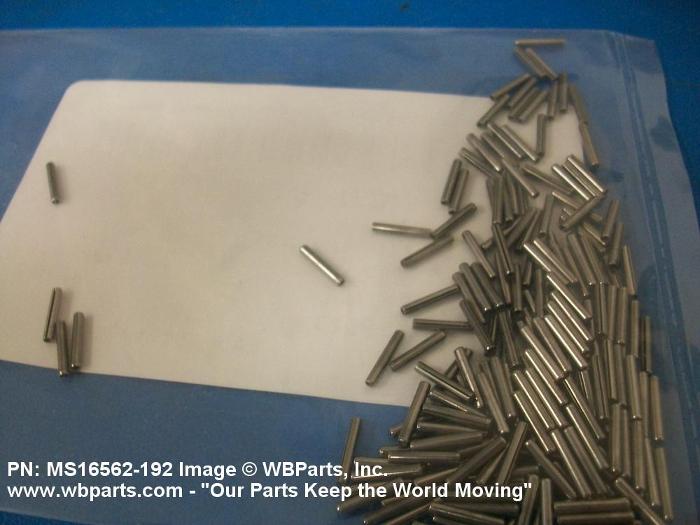

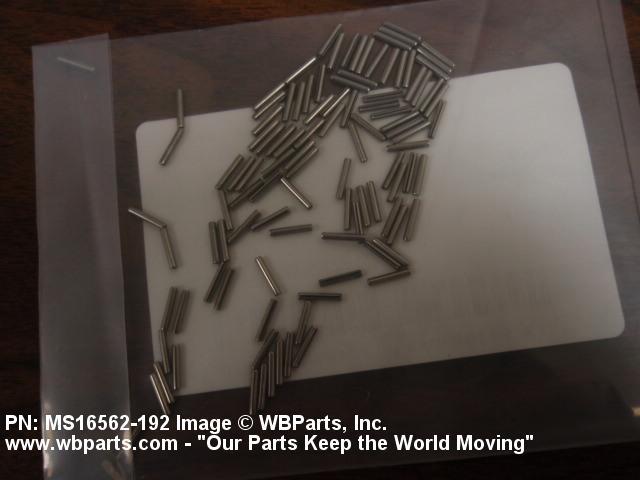

Drawings & Photos | NSN 5315-00-823-8740
Demand History | NSN 5315-00-823-8740
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS171434 | 2024-02-53 | 6 | US |
| MS171434 | 2023-07-209 | 10 | United States |
| MS16562192 | 2023-02-55 | 10000 | United States |
| NAS561C26 | 2022-06-161 | 29 | Malaysia |
| NAS561C26 | 2022-05-140 | 2 | Malaysia |
| MS171436 | 2019-07-183 | 50 | Canada |
| 790120620375 | 2019-02-57 | 15 | US |
| 5315-00-823-8740 | 2018-08-217 | 1381 | DIBBS |
| 5315-00-823-8740 | 2018-06-156 | 409 | DIBBS |
| 790120620375 | 2018-03-81 | 8 | US |
| MS16562194 | 2017-09-256 | 10 | US |
| MS16562192 | 2017-08-241 | 1 | United States |
| MS16562194 | 2017-06-181 | 5 | United States |
| 5315-00-823-8740 | 2016-10-292 | 185 | DIBBS |
| MS16562192 | 2016-05-147 | 200 | United States |
| MS171434 | 2016-03-82 | 2 | United States |
| MS16562192 | 2016-03-76 | 200 | US |
| MS171434 | 2015-07-197 | 5000 | US |
| 5315-00-823-8740 | 2015-06-165 | 376 | DIBBS |
| MS16562-192 | 2015-05-141 | 1 | United States |
| MS16562-192 | 2015-05-141 | 1 | United States |
| MS171434 | 2015-05-141 | 2 | United States |
| MS171434 | 2015-05-141 | 2 | United States |
| 5315-00-823-8740 | 2014-12-346 | 275 | US |
| MS171434 | 2014-09-254 | 104 | United States |
| MS171436 | 2014-08-227 | 30 | United States |
| 5315-00-823-8740 | 2014-02-42 | 295 | DIBBS |
| 5315-00-823-8740 | 2014-01-17 | 2940 | MANUAL |
| MS16562-192 | 2014-01-17 | 2940 | United States |
| MS16562192 | 2014-01-14 | 2940 | United States |
| 5315-00-823-8740 | 2013-10-302 | 1 | United States |
| MS171436 | 2013-04-113 | 3 | United States |
| 790120620375 | 2013-03-64 | 6 | US |
| 5315-00-823-8740 | 2013-01-10 | 370 | United States |
| MS171434 | 2012-07-208 | 200 | United States |
| 790120620375 | 2012-04-100 | 250 | US |
| MS16562194 | 2012-04-100 | 250 | US |
| A1136 | 2012-03-73 | 1 | United States |
| MS16562192 | 2012-03-73 | 1 | United States |
| A1136 | 2011-12-340 | 1 | United States |
| A1136 | 2011-12-340 | 1 | United States |
| A1136 | 2011-10-299 | 2 | United States |
| MS16562194 | 2011-08-222 | 100 | US |
| MS171434 | 2011-06-168 | 2 | United States |
| MS16562192 | 2011-05-133 | 200 | US |
| MS16562192 | 2011-01-07 | 50 | United States |
| MS16562192 | 2011-01-07 | 500 | United States |
| MS16562192 | 2010-12-340 | 2 | United States |
| MS16562194 | 2010-05-126 | 16 | US |
| 790120620375 | 2010-04-106 | 3000 | US |
| 5315-00-823-8740 | 2010-04-98 | 700 | DIBBS |
| MS16562192 | 2010-03-69 | 300 | India |
| MS171436 | 2010-03-62 | 100 | United States |
| 5315-00-823-8740 | 2009-11-319 | 460 | India |
| MS16562192 | 2009-11-316 | 460 | India |
| MS16562194 | 2009-10-297 | 20 | US |
| MS16562192 | 2009-05-132 | 100 | US |
| 5315-00-823-8740 | 2009-04-93 | 1000 | Turkey |
| 5315-00-823-8740 | 2009-04-93 | 1000 | Turkey |
| 5315-00-823-8740 | 2009-04-93 | 1000 | Turkey |
| MS16562192 | 2009-04-92 | 60 | Australia |
| 5315-00-823-8740 | 2009-03-77 | 2500 | US |
| MS16562194 | 2009-03-64 | 10 | US |
| 5315-00-823-8740 | 2009-01-12 | 25 | us |
| MS171434 | 2008-10-284 | 400 | Turkey |
| 5315-00-823-8740 | 2008-10-283 | 400 | US |
| MS171436 | 2008-08-219 | 4460 | United States |
| 5315-00-823-8740 | 2008-07-196 | 558 | US |
| MS16562194 | 2008-04-107 | 100 | United States |
| MS171436 | 2008-02-52 | 400 | Germany |
| 5315-00-823-8740 | 2007-11-319 | 100 | United Kingdom |
| MS171436 | 2007-11-312 | 400 | Germany |
| 5315-00-823-8740 | 2007-10-295 | 15 | US |
| 5315-00-823-8740 | 2006-07-212 | 25 | PK |
| MS171436 | 2006-07-199 | 200 | us |
| MS171436 | 2006-05-150 | 1 | Australia |
| MS171436 | 2006-05-128 | 1 | Australia |
Cross Reference | NSN 5315-00-823-8740
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 012-062-0375 | 72962 | HARVARD INDUSTRIES INC |
| 0495-5 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 0495-5 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 0495-5 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 119354 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1366-1-1E | 99872 | ENTRON INDUSTRIES LIMITED PARTNERSHIP |
| 13704-2 | 87557 | LOCKHEED CORP LOCKHEED ELECTRONICS CO INC |
| 13704-2 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 14564-1-0375 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 14564-1-0375 | C1834 | KONTRON AG |
| 1885263 ITEM 35 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 221-215-406 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| 24119-2 | 0C9D4 | HARRIS TECHNICAL SERVICES CORP |
| 24119-2 | 9N770 | TELEPHONICS CORP/PRD INSTRUMENTS |
| 268-004-0406 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 268-004-0406 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 311-0419-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 31S062-0375 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 40-00002-005 | 00724 | RAYTHEON COMPANY DBA RAYTHEON |
| 40-00002-005 | K0268 | RAYTHEON SYSTEMS LTD |
| 40553002016 | S0522 | TADIRAN LTD |
| 418416-192 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 502234-18 | 22525 | INSTRUMENTS AND FLIGHT RESEARCH INC. |
| 508C16-3-52 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| 5310008238740 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 540071-004 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 540071-004 | 14100 | STROMBERG-CARLSON CORP A PLESSEY TELECOMMUNICATIONS CO |
| 580060 | 0B5H6 | NIANTIC TOOL, INC. |
| 6-37 | 00607 | GAP INSTRUMENT CORP |
| 6-37 | 07CR8 | ADVANCED LOGIC RESOURCES INC DBA ALR |
| 6722443 | 24617 | GENERAL MOTORS CORP |
| 6722443 | 73342 | ALLISON TRANSMISSION, INC. |
| 680002 | 0BR59 | DRESSER-RAND COMPANY DBA STEAM TRBINE MTR GENERATOR DIV |
| 680002 | 0DKH2 | EVANS LEE INC |
| 680002 | 82328 | DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND |
| 69950-6S | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 74-00800-8004 | 89944 | KOLLSMAN, INC. |
| 79-012-062-0360 | 72962 | HARVARD INDUSTRIES INC |
| 79-012-062-0375 | 72962 | HARVARD INDUSTRIES INC |
| 79-012-062-375 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 794012-062-0500 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 850064 | 05257 | GENERAL DYNAMICS CANADA LTD |
| 990333-3 | 02734 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 990333-3 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 990333-3 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
| A1136 | 0B5H6 | NIANTIC TOOL, INC. |
| BA98203-3 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| C3-5 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| DYRA189 | 05624 | GE AVIATION SYSTEMS LLC DBA GE AVIATION |
| F-8278 PC1M | 82328 | DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND |
| F-8728 PC1M | 82328 | DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND |
| F126-2-6-6LV | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| F126-2-6L | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| G603637-2 | 06840 | BENDIX CORP THE |
| G603637-2 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| G603637-2 | 70408 | AT AND T CORP |
| H593-160-606 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| H593160606 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| MS16562-192 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-192 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16562-194 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS171434 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| MS171434 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS171434 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS171436 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N533P006 | 24446 | GENERAL ELECTRIC CO |
| NAS561C2-6 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NASM171401THRYNASM171900 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PL1887579 IT. 1 4 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| PN-150 | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| PN1008-6 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| PS062-0375CRPA012 | K1368 | MINISTRY OF DEFENCE, DE&S DEFENCECLOTHING TEAM |
| RP62-375SS | 06840 | BENDIX CORP THE |
| RP62-375SS | 99251 | CARLETON LIFE SUPPORT SYSTEMS INC. DBA COBHAM MISSION SYSTEM |
| SM-B-447302-3 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| V3D10055PC11 | 99517 | VACCO INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-823-8740
Related Products | NSN 5315-00-823-8740
Technical Data | NSN 5315-00-823-8740
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OR STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 425 DOUBLE POUND |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| DIAMETER | 0.066 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.012 INCHES MINIMUM |
| SURFACE FINISH | 80.0 MICROINCHES OUTSIDE DIAMETER |
Restrictions/Controls & Freight Information | NSN 5315-00-823-8740
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-823-8740
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
