NSN 5315-00-616-9117 FFP386, 00-616-9117, 006169117
Product Details | COTTER PIN
5315-00-616-9117 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: FFP386, 5315-00-616-9117, 00-616-9117, 5315006169117, 006169117
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-9117 | 02381 ( PIN, COTTER ) |

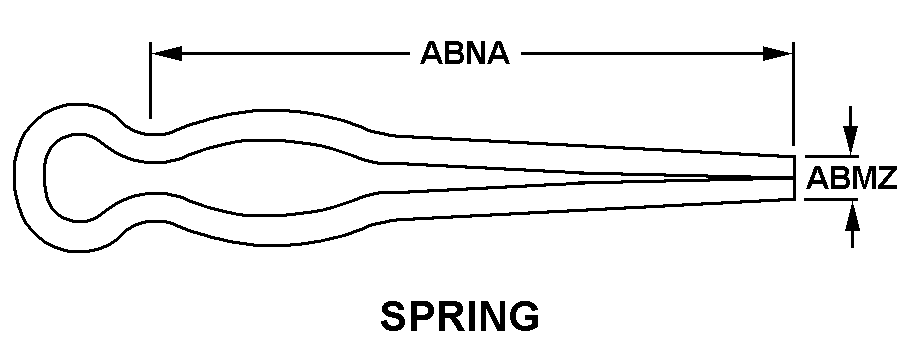

Drawings & Photos | NSN 5315-00-616-9117
Demand History | NSN 5315-00-616-9117
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFP386 | 2022-04-96 | 230 | US |
Cross Reference | NSN 5315-00-616-9117
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFP386 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-616-9117
Technical Data | NSN 5315-00-616-9117
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| STYLE DESIGNATOR | A3 SPRING |
| DIAMETER | 0.220 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| UNDERLOOP LENGTH | 1.500 INCHES NOMINAL |
| POINT TYPE | STANDARD |
| NONDEFINITIVE SPEC/STD DATA | A TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY MATERIAL |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFP386 |
Restrictions/Controls & Freight Information | NSN 5315-00-616-9117
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
