NSN 5315-00-616-4490 FFN105, 00-616-4490, 006164490
Product Details | NAIL
5315-00-616-4490 A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails.
Part Alternates: FFN105, 5315-00-616-4490, 00-616-4490, 5315006164490, 006164490
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-4490 | 29631 ( NAIL ) |
Drawings & Photos | NSN 5315-00-616-4490
Demand History | NSN 5315-00-616-4490
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FFN105 | 2017-10-296 | 2 | |
| FFN105 | 2012-03-65 | 8 | US |
| FFN105 | 2008-08-218 | 200 | us |
Cross Reference | NSN 5315-00-616-4490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFN105 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-616-4490
Technical Data | NSN 5315-00-616-4490
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| SURFACE TREATMENT LOCATION | HEAD AND SHANK |
| FABRICATION METHOD | FORGED |
| STERILIZED | NO |
| METALLIC HARDNESS RATING | NOT RATED |

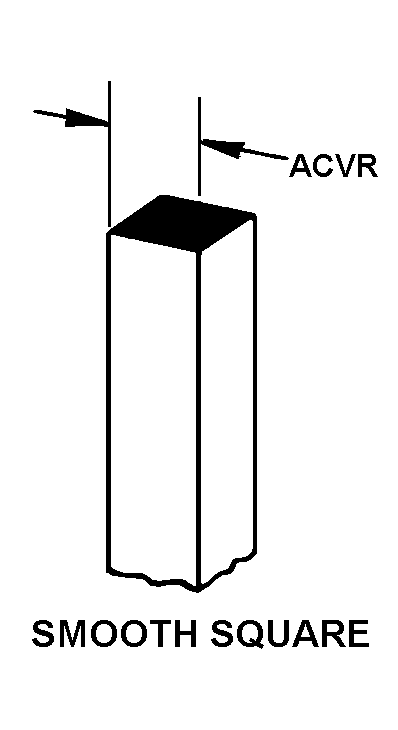

| SHANK STYLE | 9 SMOOTH SQUARE |
| SHANK WIDTH | 0.312 INCHES NOMINAL |

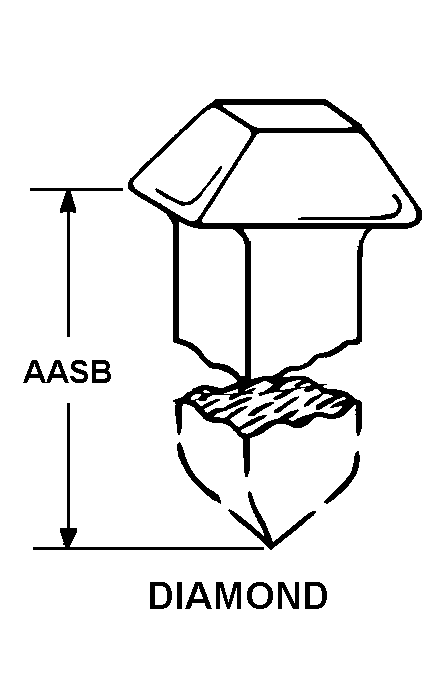

| HEAD STYLE | 12 DIAMOND |

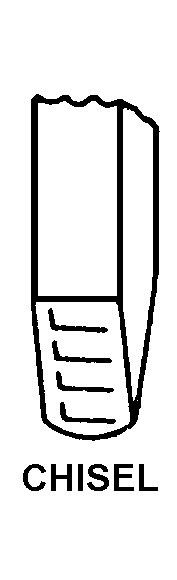

| POINT STYLE | 5 CHISEL |
| FASTENER LENGTH | 8.000 INCHES NOMINAL |
| DECORATIVE HEAD | NO |
| NONDEFINITIVE SPEC/STD DATA | 5 TYPE AND 4 STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFN105 |
Restrictions/Controls & Freight Information | NSN 5315-00-616-4490
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
