NSN 5315-00-584-9724 G22145, G22-145, 00-584-9724
Product Details | MACHINE KEY
5315-00-584-9724 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: G22145, G22-145, 5315-00-584-9724, 00-584-9724, 5315005849724, 005849724
Hardware and Abrasives | Nails, Machine Keys, and Pins
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 01 JAN 1963 | 00-584-9724 | 02378 ( KEY, MACHINE ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-584-9724
Related Products | NSN 5315-00-584-9724
Technical Data | NSN 5315-00-584-9724
Characteristic | Specifications |
---|---|
MATERIAL | STEEL OVERALL |
SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |

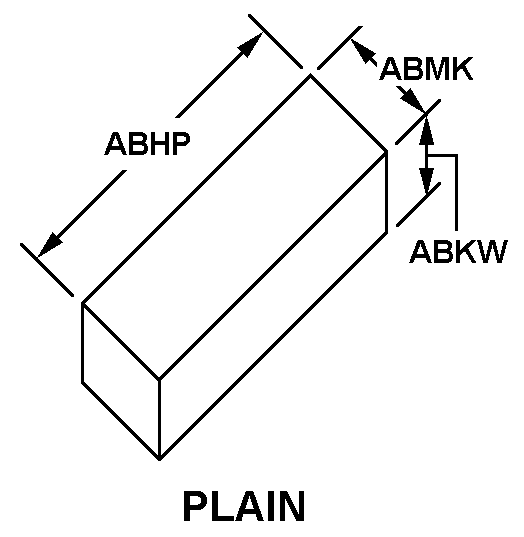

STYLE DESIGNATOR | B15 PLAIN |
OVERALL LENGTH | 0.353 INCHES NOMINAL |
OVERALL HEIGHT | 0.0936 INCHES MINIMUM AND 0.0948 INCHES MAXIMUM |
OVERALL WIDTH | 0.0936 INCHES MINIMUM AND 0.0948 INCHES MAXIMUM |
STARTING EDGE SHAPE | CHAMFERED |
KEY CHAMFER LENGTH | 0.093 INCHES NOMINAL |
KEY CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
MANUFACTURERS CODE | 31435 |
DESIGN CONTROL REFERENCE | G22-145 |
