NSN 5315-00-527-0604 MS1656240, MS16562-40, NAS561P58
Product Details | SPRING PIN

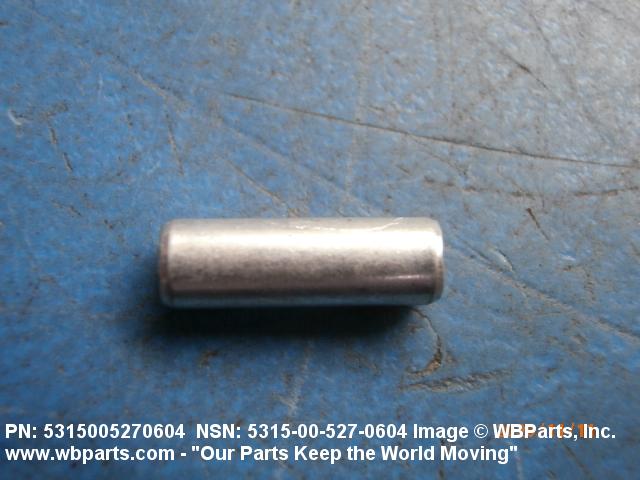

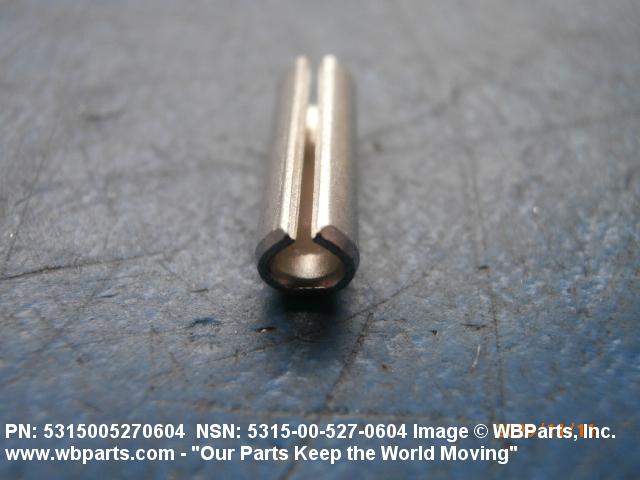

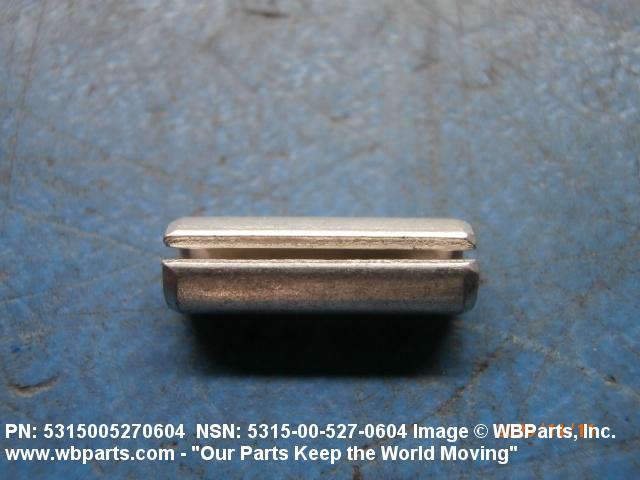

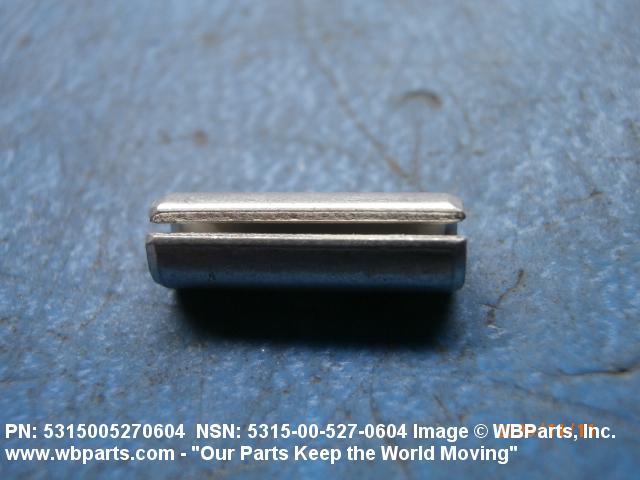

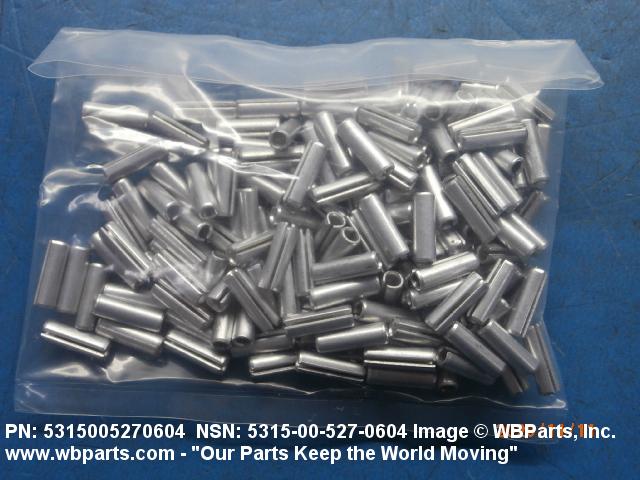

5315-00-527-0604 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS1656240, MS16562-40, NAS561P58, NAS561P5-8, F520321560500, F52-032-156-0500, 10383706 , 520321560500, 52-032-156-0500, 5315-00-527-0604, 00-527-0604, 5315005270604, 005270604
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-527-0604 | 02389 ( PIN, SPRING ) |

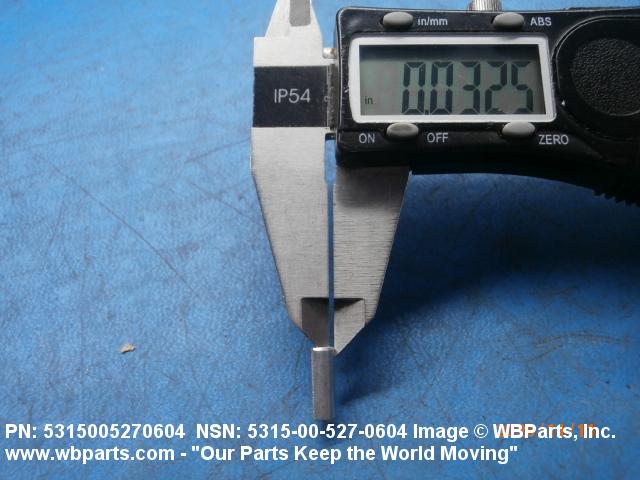

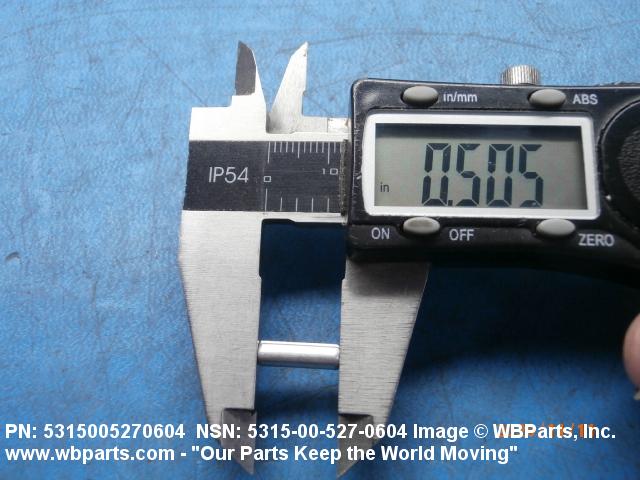

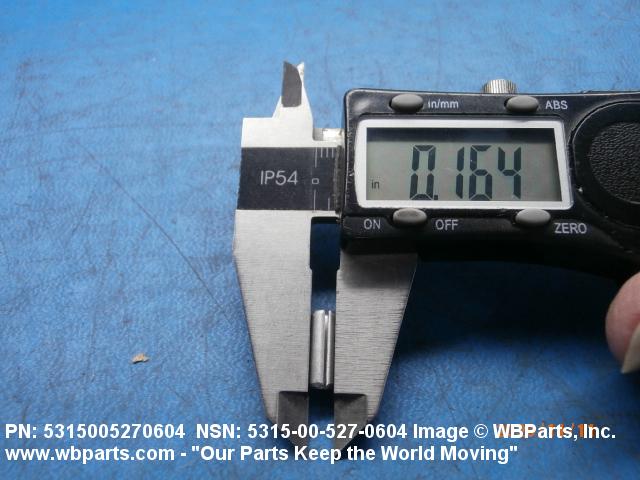

Drawings & Photos | NSN 5315-00-527-0604
Demand History | NSN 5315-00-527-0604
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS1656240 | 2021-05-132 | 120 | US |
| 5315-00-527-0604 | 2020-10-289 | 170 | United States |
| MS1656240 | 2020-10-280 | 170 | United States |
| 5315-00-527-0604 | 2013-10-281 | 0 | United States |
| 5315-00-527-0604 | 2013-10-281 | 2 | United States |
Cross Reference | NSN 5315-00-527-0604
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52-032-156-0500 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 52-032-156-0500 | 72962 | HARVARD INDUSTRIES INC |
| F52-032-156-0500 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52-032-156-0500 | 72962 | HARVARD INDUSTRIES INC |
| MS16562-40 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-40 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS561P5-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-527-0604
Related Products | NSN 5315-00-527-0604
Technical Data | NSN 5315-00-527-0604
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1070 OR STEEL COMP 1074 OR STEEL COMP 1080 OR STEEL COMP 1086 OR STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 3000 DOUBLE POUND |
| STYLE DESIGNATOR | K174 SLOTTED |
| OVERALL LENGTH | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| DIAMETER | 0.162 INCHES MINIMUM AND 0.167 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS561 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-00-527-0604
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
