NSN 5315-00-510-8055 A2844, 00-510-8055, 005108055
Product Details | MACHINE KEY
5315-00-510-8055 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: A2844, 5315-00-510-8055, 00-510-8055, 5315005108055, 005108055
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-510-8055 | 02378 ( KEY, MACHINE ) |
Drawings & Photos | NSN 5315-00-510-8055
Cross Reference | NSN 5315-00-510-8055
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A2844 | 98889 | AEROCONTROLEX GROUP, INC. DBA TALLEY ACTUATORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-510-8055
Technical Data | NSN 5315-00-510-8055
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |

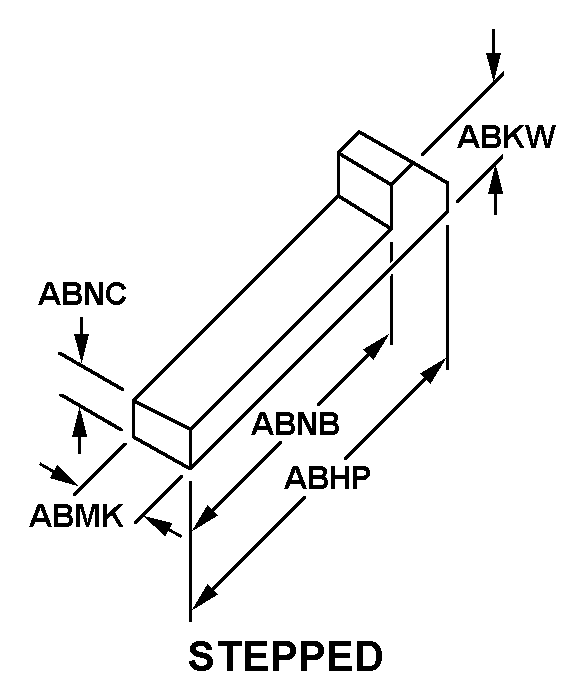

| STYLE DESIGNATOR | B19 STEPPED |
| OVERALL LENGTH | 0.922 INCHES NOMINAL |
| OVERALL HEIGHT | 0.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.120 INCHES MINIMUM AND 0.122 INCHES MAXIMUM |
| FIRST FLAT LENGTH | 0.797 INCHES NOMINAL |
| FLAT HEIGHT | 0.183 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
| MANUFACTURERS CODE | 98889 |
| DESIGN CONTROL REFERENCE | A2844 |
Restrictions/Controls & Freight Information | NSN 5315-00-510-8055
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 133300 | MACHINERY/MACHINES NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
