NSN 5315-00-507-9275 8200963, 00-507-9275, 005079275
Product Details | MACHINE KEY
5315-00-507-9275 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 8200963, 5315-00-507-9275, 00-507-9275, 5315005079275, 005079275
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-507-9275 | 02378 ( KEY, MACHINE ) |

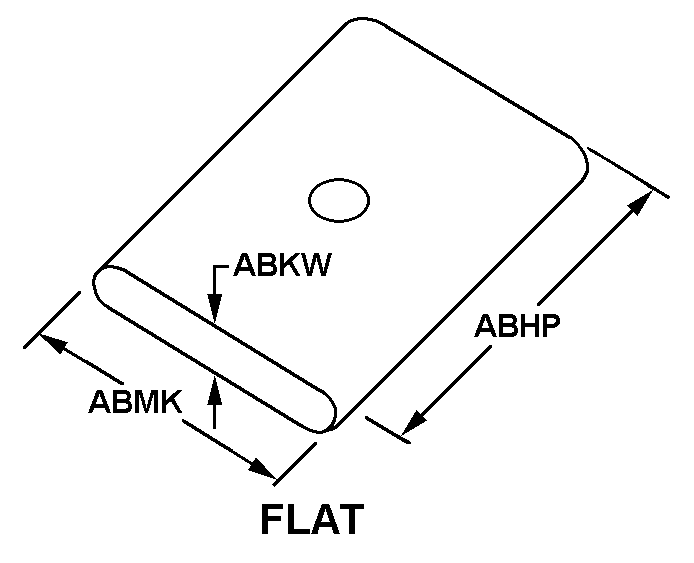

Drawings & Photos | NSN 5315-00-507-9275
Cross Reference | NSN 5315-00-507-9275
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8200963 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-507-9275
Technical Data | NSN 5315-00-507-9275
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 416 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | B30 FLAT |
| OVERALL LENGTH | 0.781 INCHES NOMINAL |
| OVERALL HEIGHT | 0.283 INCHES NOMINAL |
| OVERALL WIDTH | 0.390 INCHES NOMINAL |
| MOUNTING HOLE TYPE AND QUANTITY | 1 THREADED |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNF |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.250 INCHES |
| MOUNTING HOLE THREAD CLASS | 2B |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.390 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 0.283 INCHES NOMINAL |
| STARTING EDGE SHAPE | CHAMFERED |
| KEY CHAMFER LENGTH | 0.010 INCHES NOMINAL |
| KEY CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| SPECIAL FEATURES | BOTH ENDS CHAMFERED |
Restrictions/Controls & Freight Information | NSN 5315-00-507-9275
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
