NSN 5315-00-498-6853 MS17987C309 , 00-498-6853, 004986853
Product Details | QUICK RELEASE PIN
5315-00-498-6853 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17987C309 , 5315-00-498-6853, 00-498-6853, 5315004986853, 004986853
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2015085 | 00-498-6853 | 08323 ( PIN, QUICK RELEASE ) |

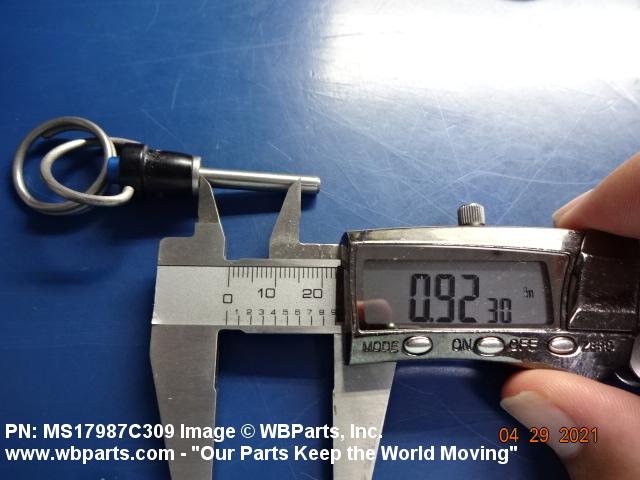

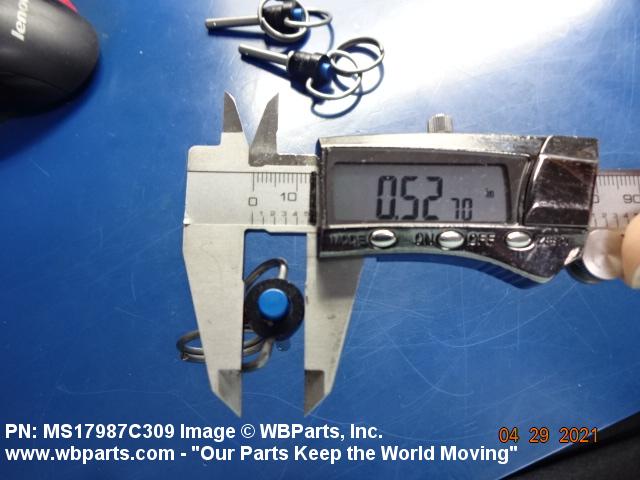

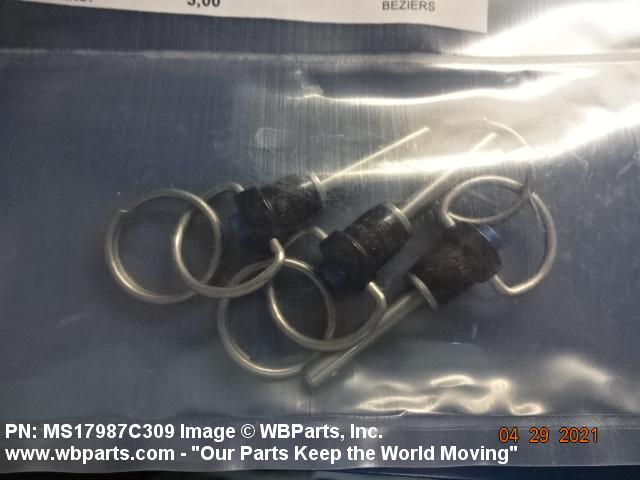

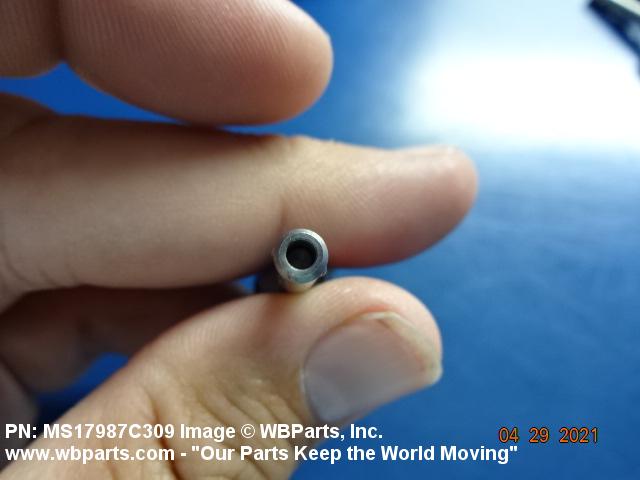

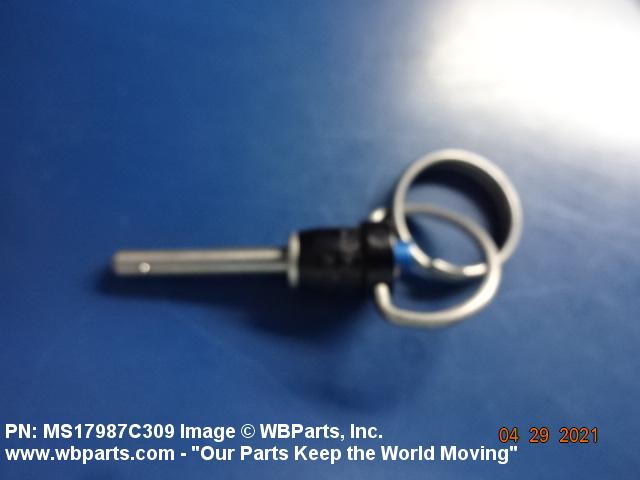

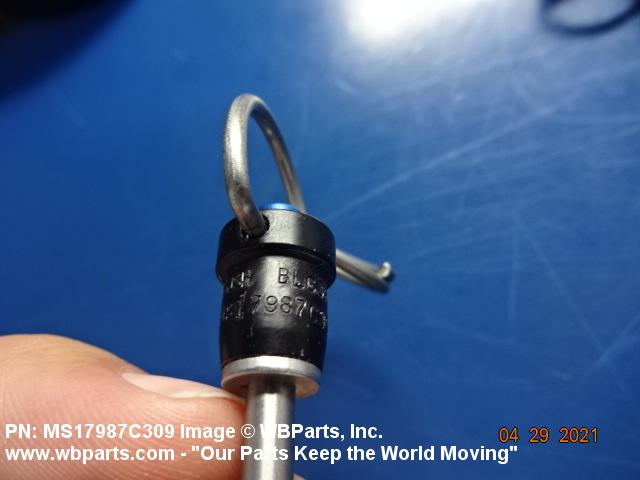

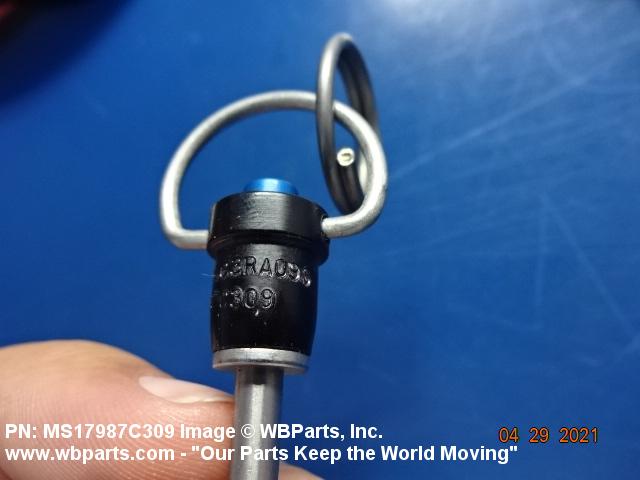

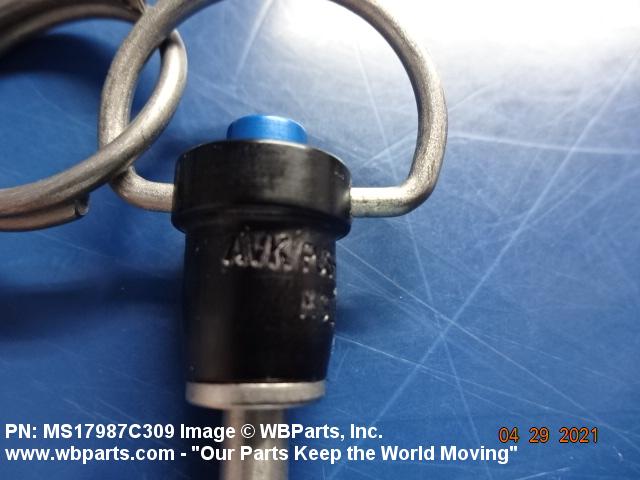

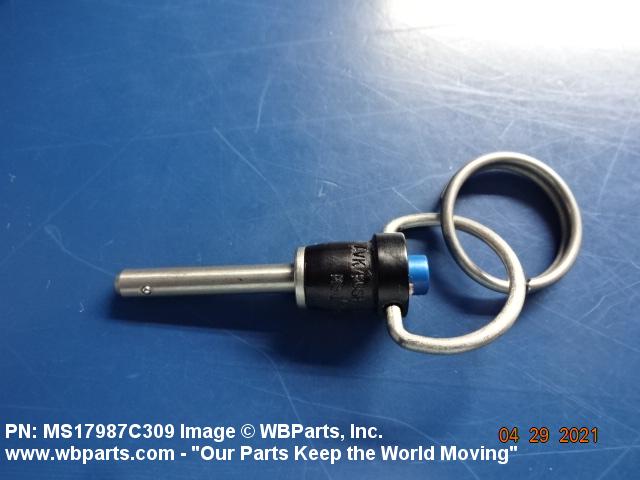

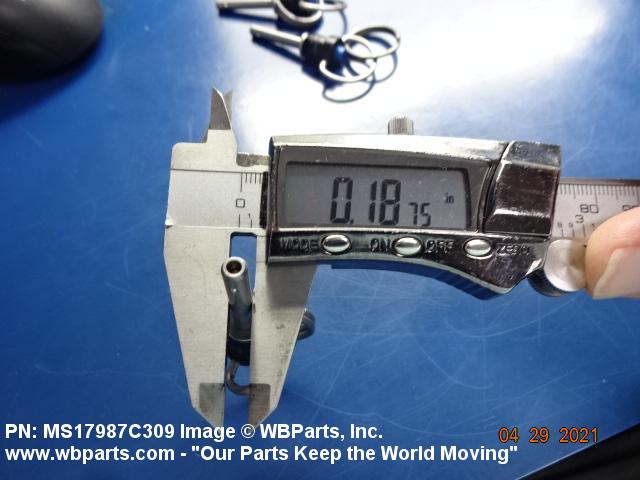

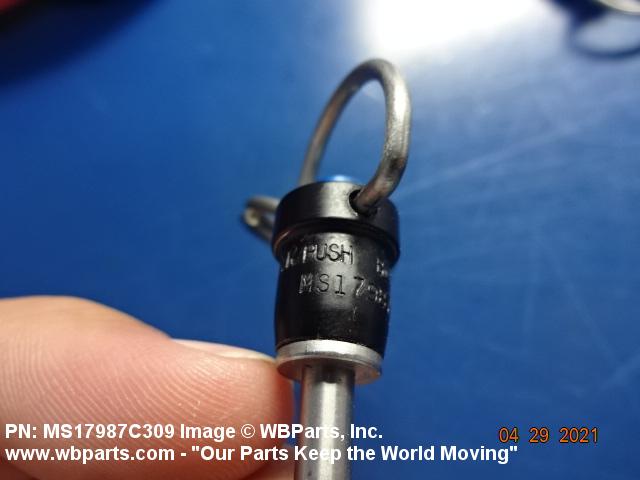

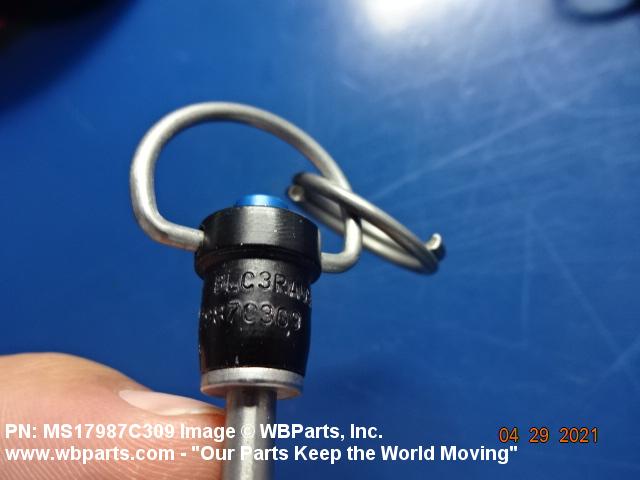

Drawings & Photos | NSN 5315-00-498-6853
Demand History | NSN 5315-00-498-6853
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17987C309 | 2023-05-135 | 3 | United States |
| 5315-00-498-6853 | 2021-06-168 | 85 | KR |
| MS17987C309 | 2021-03-71 | 3 | Japan |
| 5315-00-498-6853 | 2021-02-39 | 30 | Japan |
| MS17987C309 | 2020-02-34 | 25 | ES |
| MS17987C309 | 2015-09-273 | 107 | JP |
| MS17987C309 | 2015-06-176 | 107 | US |
| MS17987C309 | 2013-01-12 | 60 | MY |
| MS17987C309 | 2013-01-10 | 20 | MY |
| MS17987C309 | 2008-07-205 | 240 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-498-6853
Technical Data | NSN 5315-00-498-6853
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD 1ST MATERIAL RESPONSE OR |
| SURFACE TREATMENT | PASSIVATE SHANK |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM SHANK |
| STYLE DESIGNATOR | RING HANDLE |
| HEAD DIAMETER | 0.310 INCHES MINIMUM AND |
| SHANK DIAMETER | 0.187 INCHES MINIMUM AND |
| RING HANDLE DIAMETER | 1.060 INCHES MINIMUM |
| GRIP LENGTH | 0.900 INCHES MINIMUM AND |
| SHOULDER TO HEAD END DISTANCE | 0.730 INCHES MINIMUM |
| DETENT TO TAPERED END DISTANCE | 0.230 INCHES MINIMUM AND |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 2 |
| PIN ATTACHMENT TYPE | LINK |
| III END ITEM IDENTIFICATION | C-17A GLOBEMASTER III |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN, QUICK RELEASE |
Restrictions/Controls & Freight Information | NSN 5315-00-498-6853
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-00-498-6853
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
