Product Details | HEADLESS STRAIGHT PIN

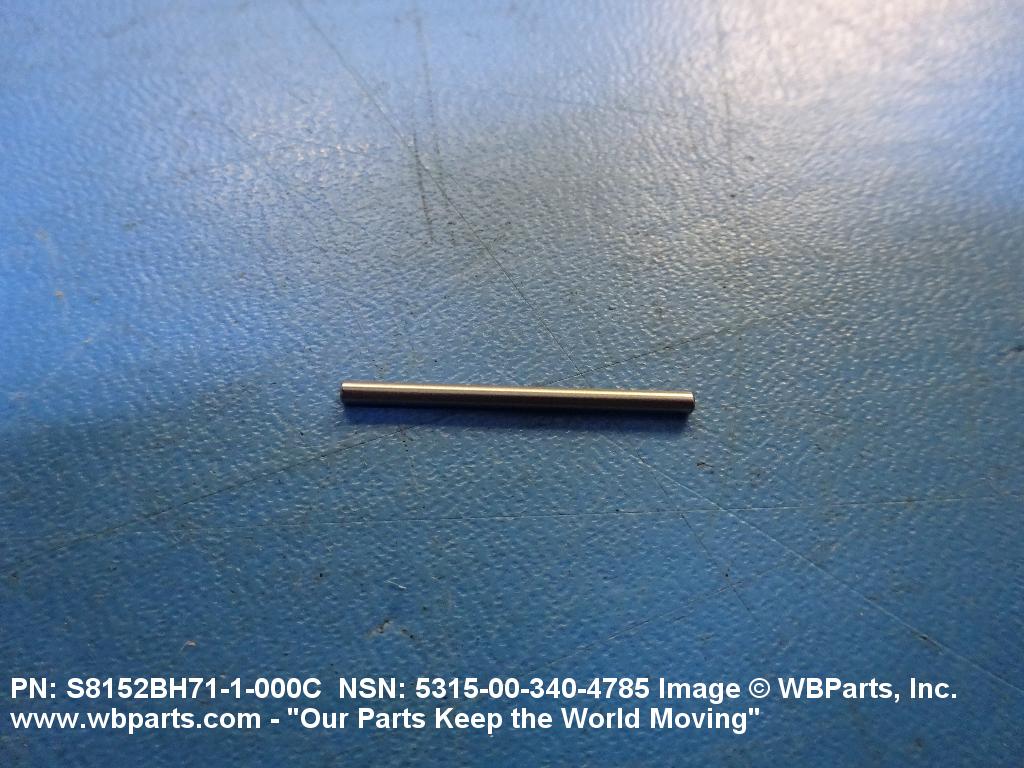

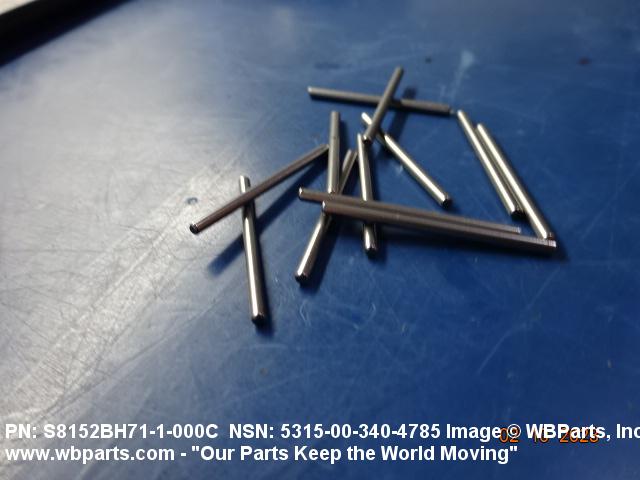

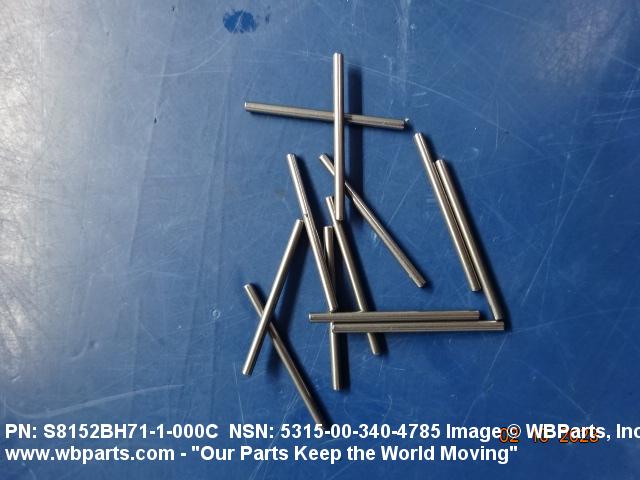

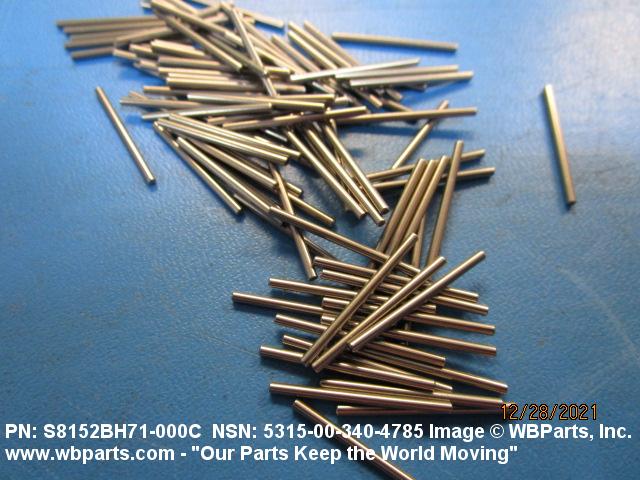

5315-00-340-4785 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: S8152BH711000C, S8152BH71-1-000C, 5315-00-340-4785, 00-340-4785, 5315003404785, 003404785
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JAN 1974 | 00-340-4785 | 02390 ( PIN, STRAIGHT, HEADLESS ) |

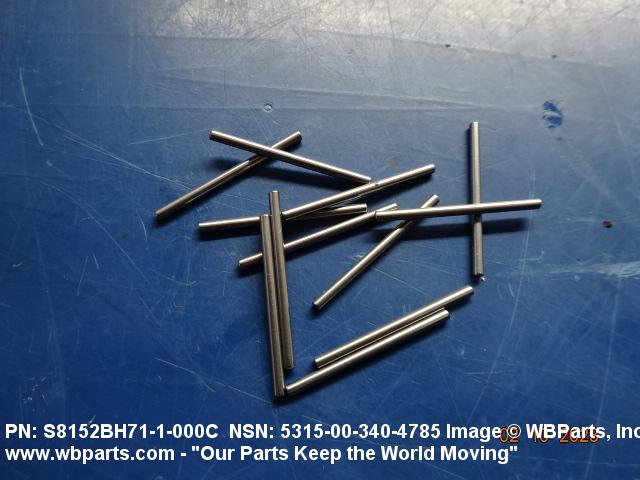

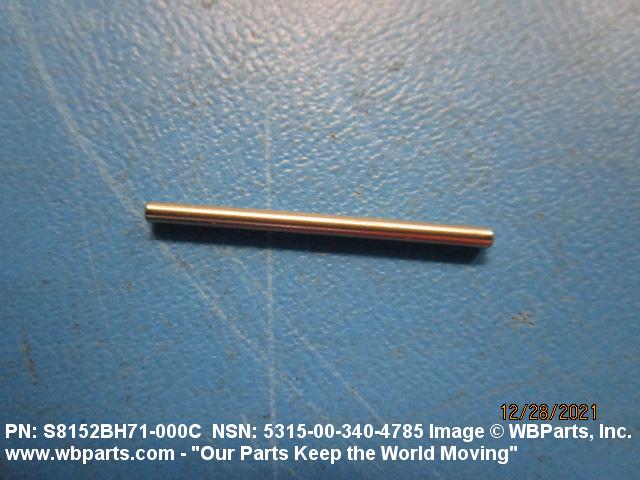

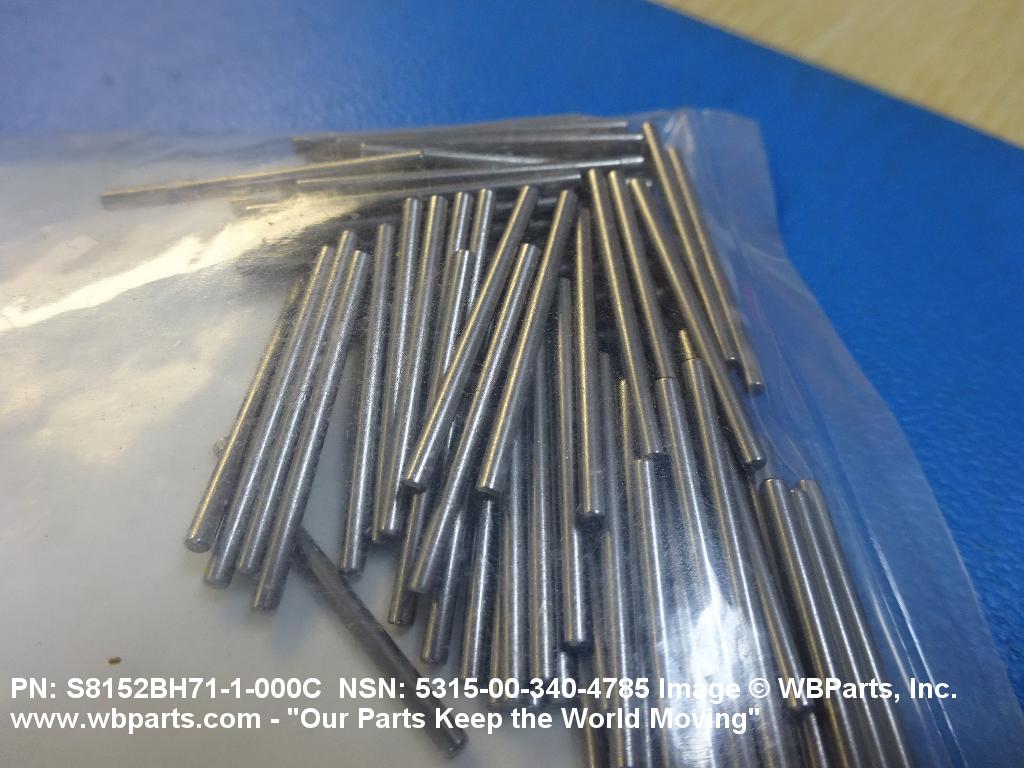

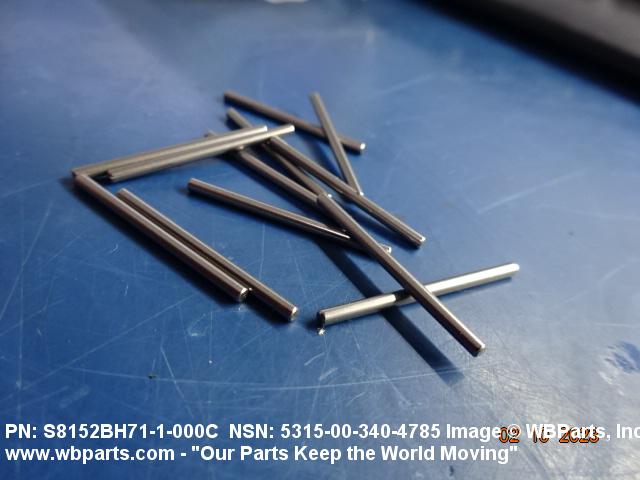

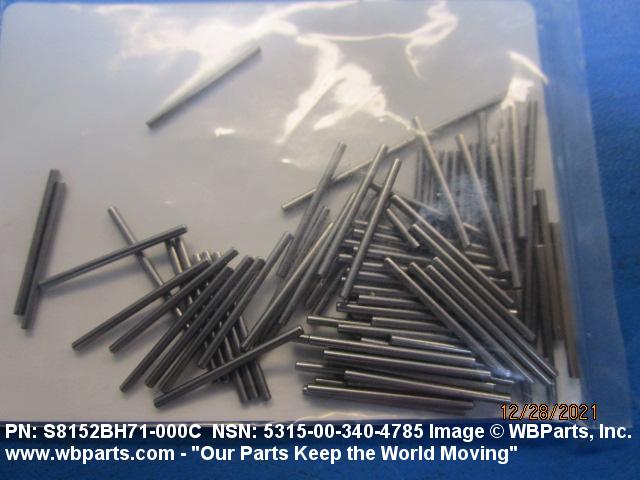

Drawings & Photos | NSN 5315-00-340-4785
Demand History | NSN 5315-00-340-4785
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S8152BH711000C | 2024-08-214 | 200 | United States |
| S8152BH711000C | 2024-01-25 | 200 | United States |
| S8152BH711000C | 2023-05-122 | 200 | United States |
| S8152BH711000C | 2022-10-292 | 200 | United States |
| S8152BH711000C | 2022-06-153 | 100 | United States |
| S8152BH711000C | 2022-06-153 | 200 | United States |
| S8152BH711000C | 2022-02-40 | 100 | United States |
| 5315-00-340-4785 | 2021-11-312 | 100 | United States |
| 5315-00-340-4785 | 2021-08-229 | 70 | United States |
Cross Reference | NSN 5315-00-340-4785
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S8152BH71-1-000C | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-340-4785
Related Products | NSN 5315-00-340-4785
Technical Data | NSN 5315-00-340-4785
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 440A OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CL 440A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SURFACE FINISH | 16.0 MICROINCHES OVERALL |

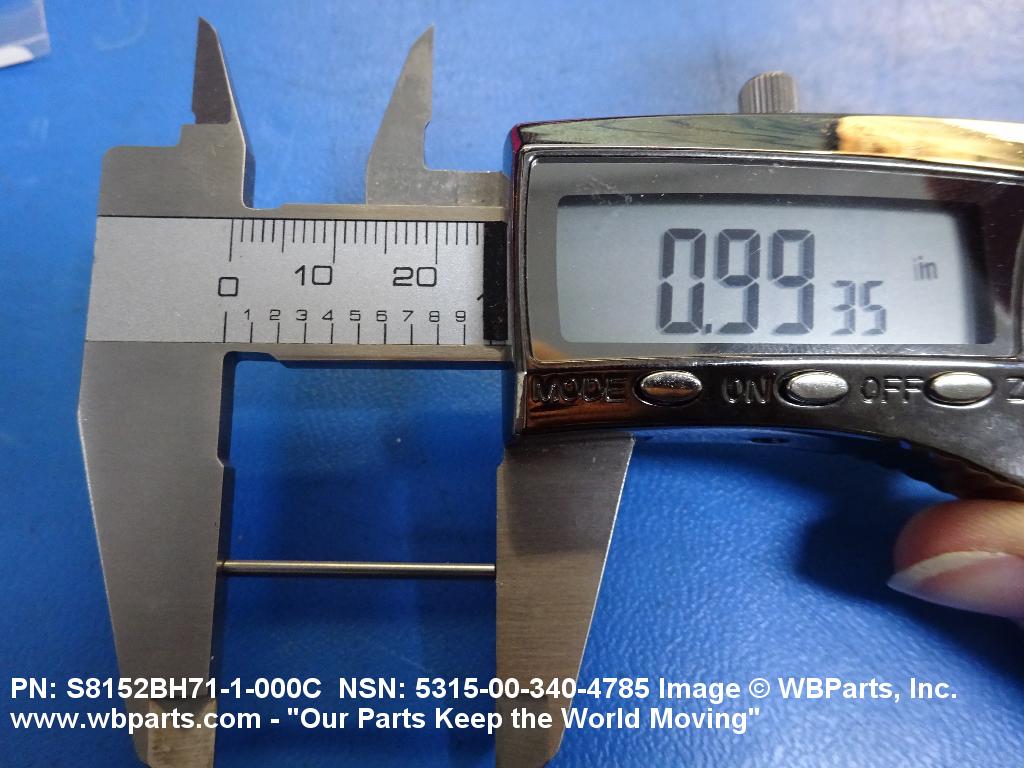

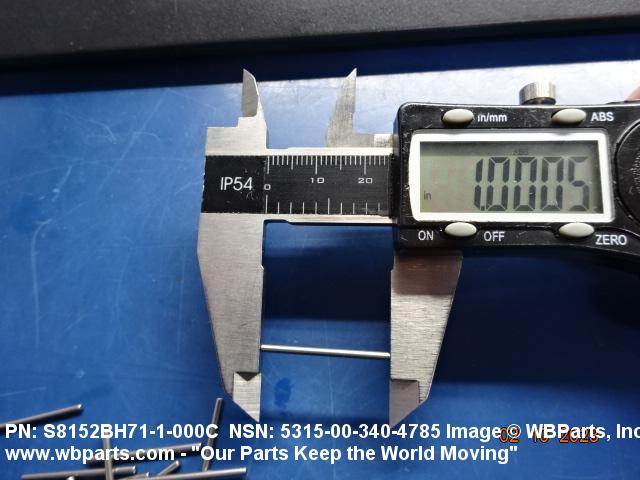

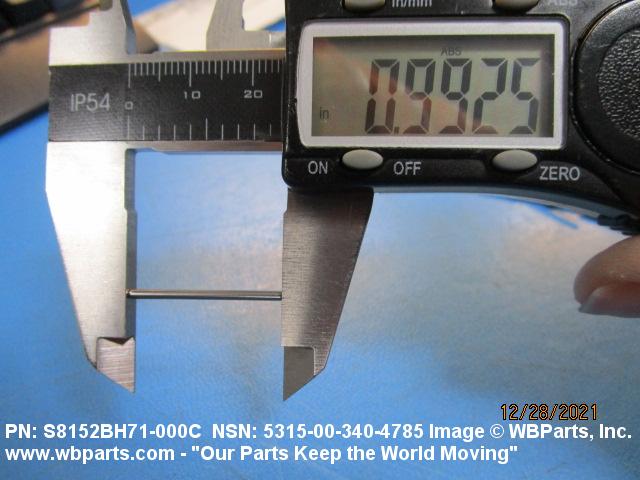

| PIN OVERALL LENGTH | 0.990 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |

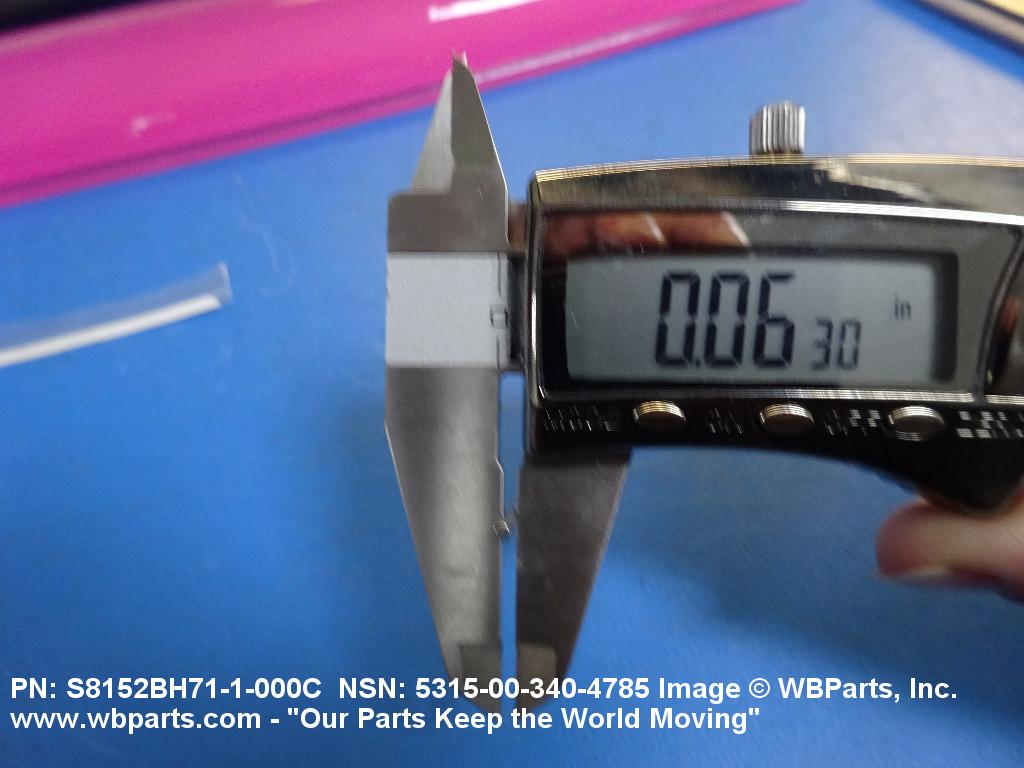

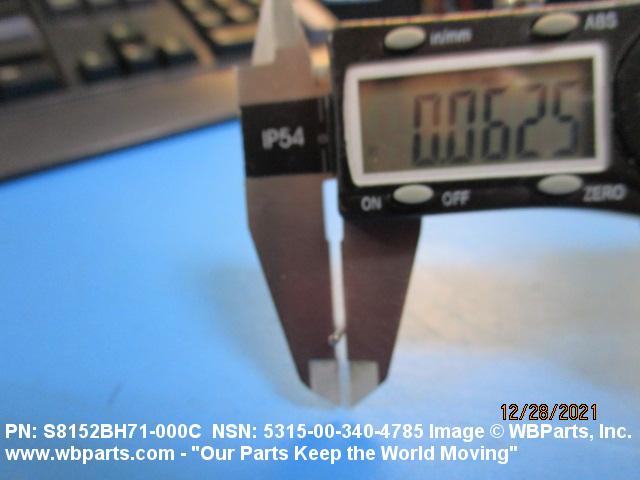

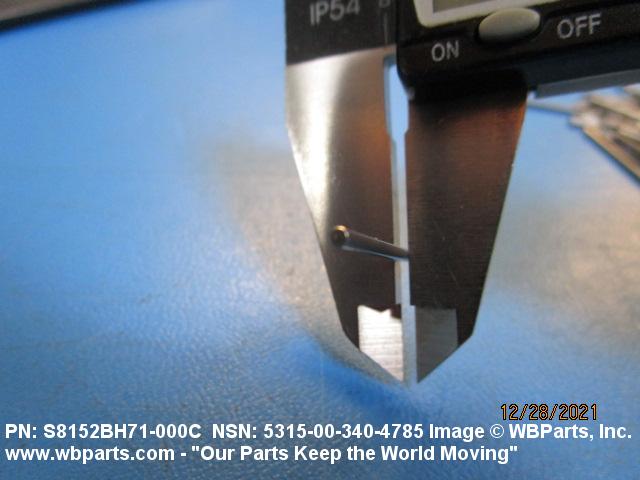

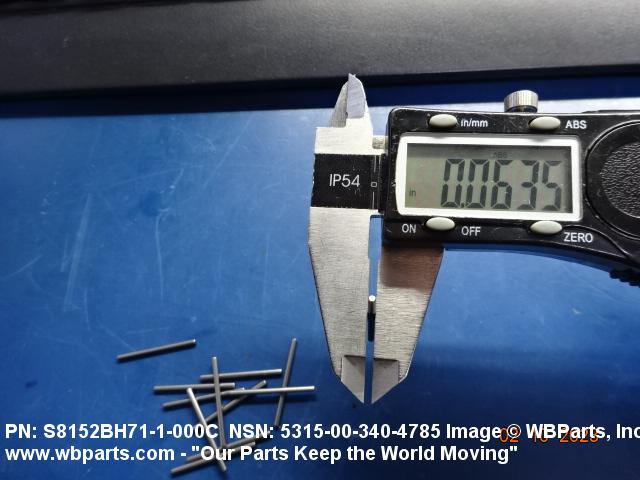

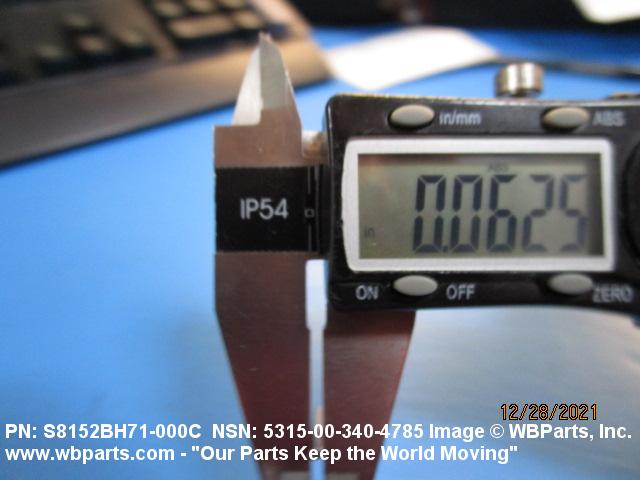

| PIN OVERALL DIAMETER | 0.0631 INCHES MINIMUM AND 0.0633 INCHES MAXIMUM |
