NSN 5315-00-240-1014 MS165625, MS16562-5, MS1656299
Product Details | SPRING PIN
5315-00-240-1014 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS165625, MS16562-5, MS1656299, MS16562-99, NAS561P27, NAS561P2-7, BP247114, BP247-114 , F520120620437, F52-012-062-0437, GK800AM10 , 5315H130045, 5315H13-004-5, 53910061, 539-100-61 , 90468611, 904686-11, 23S0620438, 23S062-0438, 2611128, 4112941044, 411294-1044, 520120620437, 52-012-062-0437, 520140620437, 52-014-062-0437, 5315-00-240-1014, 00-240-1014, 5315002401014, 002401014
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-240-1014 | 02389 ( PIN, SPRING ) |

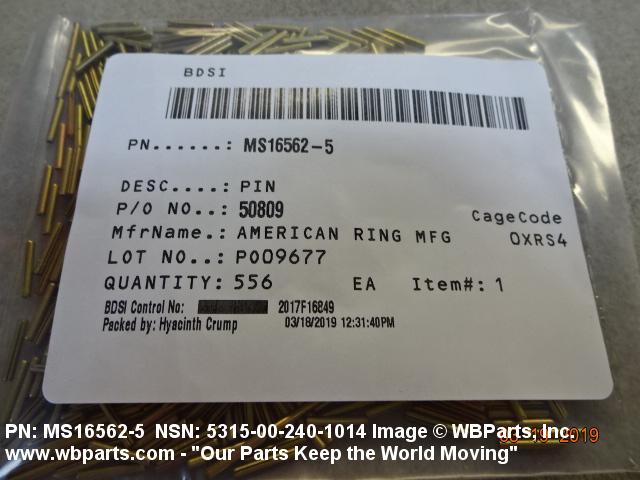

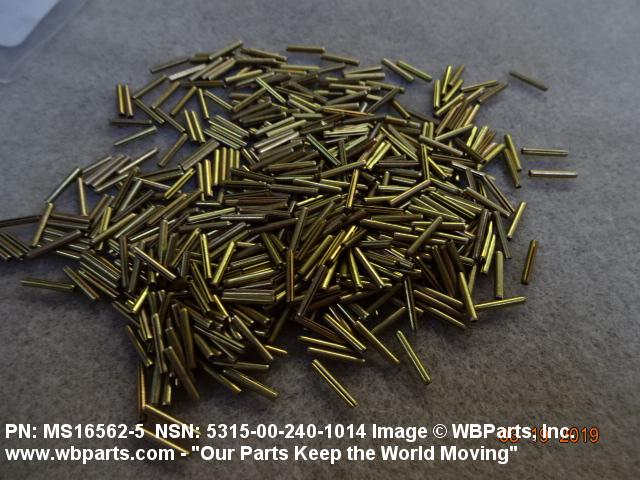

Drawings & Photos | NSN 5315-00-240-1014
Demand History | NSN 5315-00-240-1014
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS165625 | 2025-04-118 | 10 | AE |
| 5315-00-240-1014 | 2025-01-09 | 12 | United States |
| MS165625 | 2024-12-361 | 2 | US |
| 5315-00-240-1014 | 2016-12-336 | 1098 | DIBBS |
| 5315-00-240-1014 | 2016-09-260 | 351 | DIBBS |
| 5315-00-240-1014 | 2016-09-252 | 351 | DIBBS |
| 5315-00-240-1014 | 2015-07-188 | 426 | DIBBS |
| NAS561P27 | 2014-08-213 | 100 | Thailand |
| NAS561P2-7 | 2012-11-310 | 50 | |
| GK800AM10 | 2012-05-122 | 1 | United States |
| NAS561P27 | 2010-06-168 | 12 | US |
| NAS561P27 | 2009-06-161 | 1000 | US |
| MS165625 | 2008-12-357 | 60 | US |
| NAS561P27 | 2008-11-325 | 2 | United Kingdom |
Cross Reference | NSN 5315-00-240-1014
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 23S062-0438 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 2611128 | 001JK | EMBRAER S/A |
| 2611128 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 411294-1044 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 52-012-062-0437 | 72962 | HARVARD INDUSTRIES INC |
| 52-014-062-0437 | 72962 | HARVARD INDUSTRIES INC |
| 5315H13-004-5 | 81996 | U S ARMY AVIATION AND MISSILE COMMAND |
| 5315PL0157267 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 5315PL1300301 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 717124418308 | 0000V | NCB HUNGARY HONVEDSEGI EGYSEGES TERMEKKOD |
| 904686-11 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| F52-012-062-0437 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52-012-062-0437 | 72962 | HARVARD INDUSTRIES INC |
| MS16562-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS16562-99 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS16562-99 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS561P2-7 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-240-1014
Related Products | NSN 5315-00-240-1014
Technical Data | NSN 5315-00-240-1014
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1070 OR STEEL COMP 1074 OR STEEL COMP 1080 OR STEEL COMP 1086 OR STEEL COMP 1095 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 425 DOUBLE POUND |
| STYLE DESIGNATOR | K174 SLOTTED |

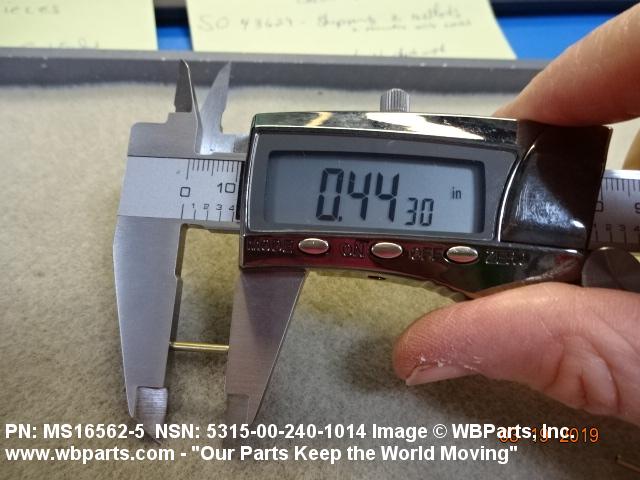

| OVERALL LENGTH | 0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |

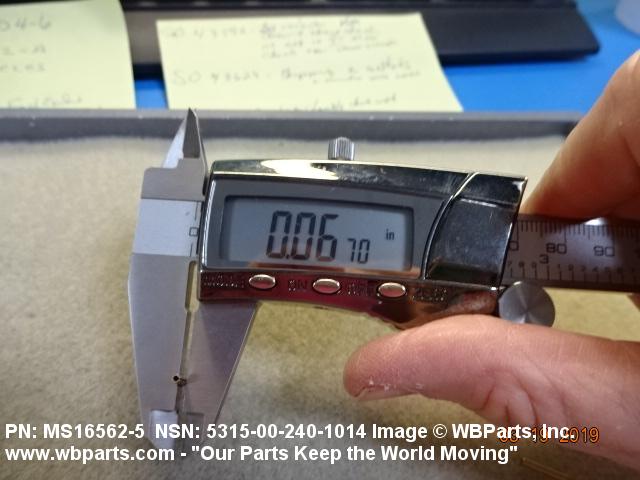

| DIAMETER | 0.062 INCHES NOMINAL |

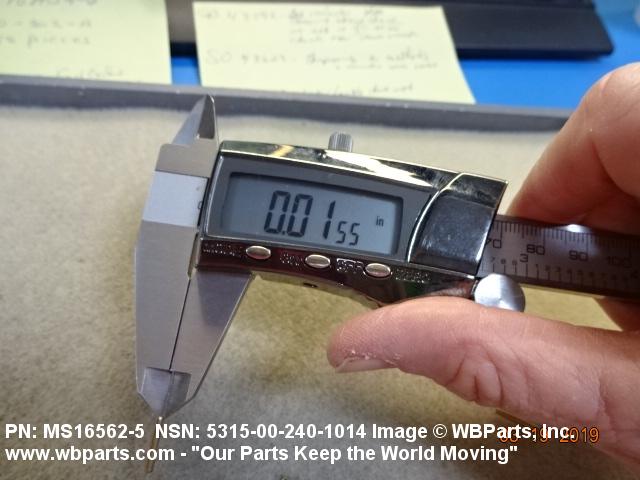

| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-00-240-1014
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 108590 | KNOBS/PULLS DOOR/DRAWER NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-240-1014
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
