NSN 5315-00-239-8024 MS24655230, MS24655-230, MS24665230
Product Details | COTTER PIN
5315-00-239-8024 A half round, cylindrical, or flat piece of metal, bent to form a straight or crimped two-pronged device with an eye at one end, for inserting in a hole drilled at right angle to the axis of the stud, shaft, or like item. Its ends are separable or one end is bent to hold it in place.
Part Alternates: MS24655230, MS24655-230, MS24665230, MS24665231, MS24665-231, MS24665233, MS24665-233 , 5315-00-239-8024, 00-239-8024, 5315002398024, 002398024
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-239-8024 | 02381 ( PIN, COTTER ) |

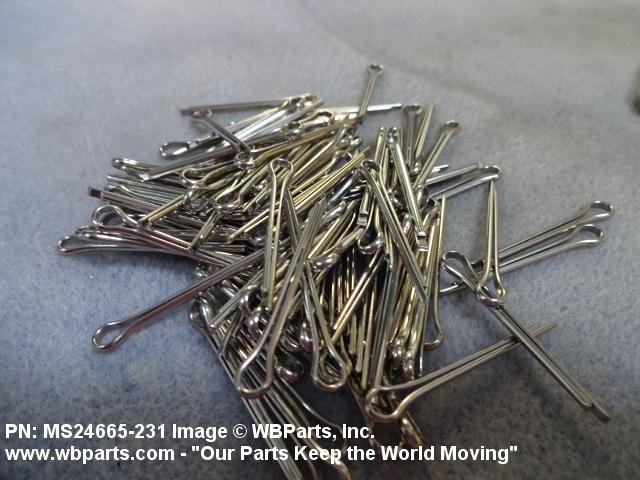

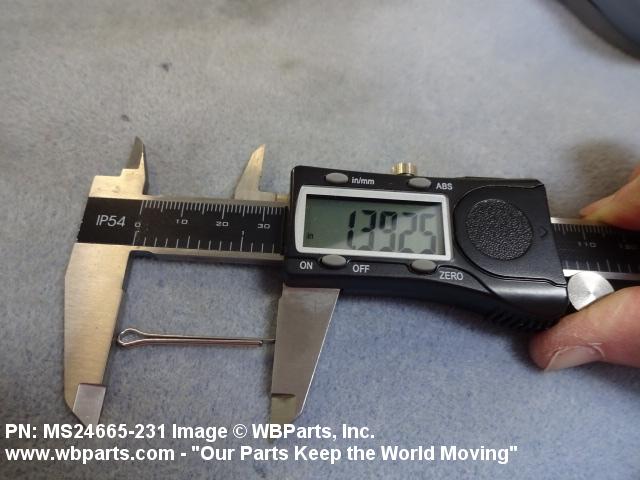

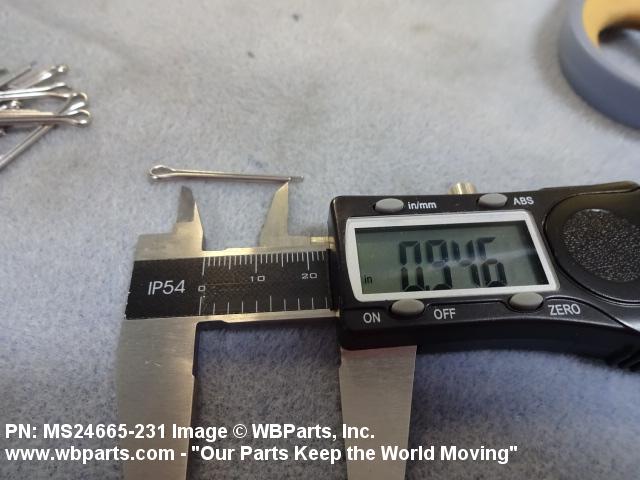

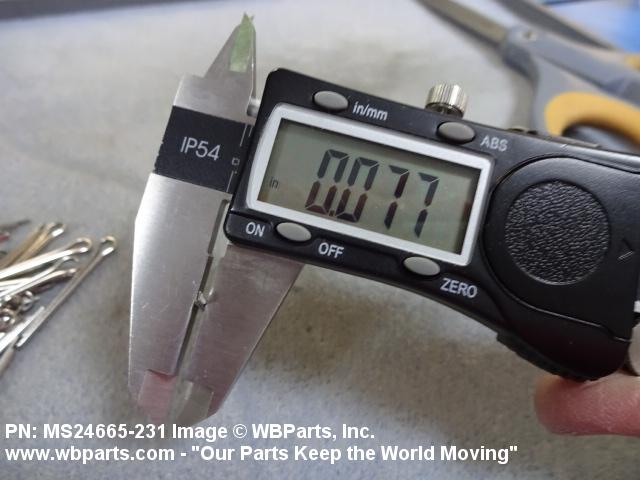

Drawings & Photos | NSN 5315-00-239-8024
Demand History | NSN 5315-00-239-8024
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24665231 | 2022-11-306 | 100 | United States |
| 5315-00-239-8024 | 2021-02-53 | 1980 | DIBBS |
| MS24665231 | 2021-01-05 | 1 | AT |
| MS24665-231 | 2020-05-147 | 1000 | US |
| 5315-00-239-8024 | 2019-05-134 | 612 | DIBBS |
| MS24665-233 | 2018-10-284 | 100 | RO |
| 5315-00-239-8024 | 2018-05-150 | 340 | DIBBS |
| MS24665231 | 2017-11-312 | 100 | United States |
| MS24665231 | 2017-02-41 | 100 | China |
| MS24665231 | 2014-09-269 | 12 | Spain |
| 5315-00-239-8024 | 2010-02-58 | 10 | Singapore |
| 5315-00-239-8024 | 2010-02-58 | 30 | Singapore |
Cross Reference | NSN 5315-00-239-8024
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS24655-230 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24665+230 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24665-231 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24665-231 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-239-8024
Technical Data | NSN 5315-00-239-8024
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 304 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A493 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM A380 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 60.0 ROCKWELL SUPERFICIAL 15-N MINIMUM AND 70.0 ROCKWELL SUPERFICIAL 15-N MAXIMUM OVERALL |
| STYLE DESIGNATOR | A1 STANDARD |
| DIAMETER | 0.072 INCHES MINIMUM AND 0.076 INCHES MAXIMUM |
| UNDERLOOP LENGTH | 0.938 INCHES MINIMUM AND 1.125 INCHES MAXIMUM |
| POINT TYPE | EXTENDED PRONG SQUARE CUT |
Restrictions/Controls & Freight Information | NSN 5315-00-239-8024
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-239-8024
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
