NSN 5315-00-221-6358 531574B400, 5315-7-4B4-00, 00-221-6358
Product Details | EYE COLLAR TOGGLE PIN
5315-00-221-6358 00001015315000000
Part Alternates: 531574B400, 5315-7-4B4-00, 5315-00-221-6358, 00-221-6358, 5315002216358, 002216358
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-221-6358 | 03907 ( PIN, TOGGLE, EYE COLLAR0 ) |
Drawings & Photos | NSN 5315-00-221-6358
Demand History | NSN 5315-00-221-6358
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-221-6358 | 2017-12-344 | 30 | DIBBS |
| 5315-00-221-6358 | 2017-04-92 | 5 | DIBBS |
| 5315-00-221-6358 | 2017-03-89 | 30 | DIBBS |
| 5315-00-221-6358 | 2017-03-78 | 30 | DIBBS |
| 5315-00-221-6358 | 2017-02-39 | 1 | DIBBS |
| 5315-00-221-6358 | 2016-11-306 | 1 | DIBBS |
| 5315-00-221-6358 | 2016-05-130 | 50 | DIBBS |
Cross Reference | NSN 5315-00-221-6358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5315-7-4B4-00 | 14153 | DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-221-6358
Related Products | NSN 5315-00-221-6358
Technical Data | NSN 5315-00-221-6358
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 464 OR STEEL COMP 1022 OVERALL |
| SURFACE TREATMENT | ZINC SHANK |

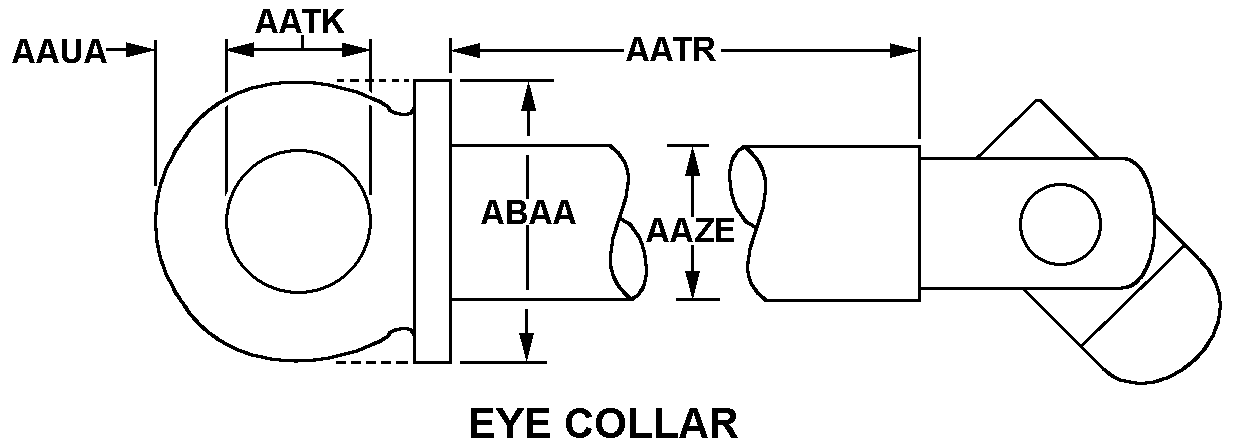

| STYLE DESIGNATOR | N221 EYE COLLAR |
| EYE INSIDE DIAMETER | 0.344 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| SHANK LENGTH | 3.969 INCHES MINIMUM AND 4.031 INCHES MAXIMUM |
| EYE STOCK THICKNESS | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| SHANK DIAMETER | 0.609 INCHES MINIMUM AND 0.656 INCHES MAXIMUM |
| COLLAR OUTSIDE DIAMETER | 0.907 INCHES MINIMUM AND 0.969 INCHES MAXIMUM |
| MANUFACTURERS CODE | 14153 |
| DESIGN CONTROL REFERENCE | 5315-7-4B4-00 |
Restrictions/Controls & Freight Information | NSN 5315-00-221-6358
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-221-6358
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
